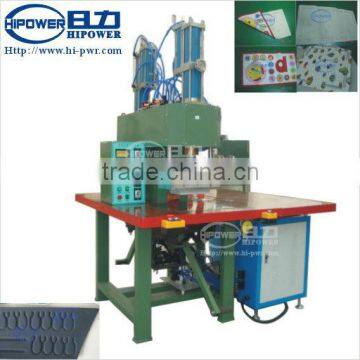

Help CenterHR-8000TAK Two Heads Pedal Style High Frequency Welding and Cutting Machine
Related Products
-
High Frequency Blister Welding MachineUS$ 3,500 - 5,500MOQ: 1 Piece -
High Frequency Welding Machine for Speaker Grill EmbeddingUS$ 1 - 5,000MOQ: 1 Set
-
High Frequency PVC Ceiling Welding MachineUS$ 1 - 3,300MOQ: 1 Set
-
Dual Head Hydraulic High Frequency Leather/foam Embossing Welding Machine With NL5557 Anti-spark DeviceUS$ 1 - 4,500MOQ: 1 Set
-
Double Heads High Frequency Welding Machine for PVC Stretch CeilingUS$ 1 - 3,500MOQ: 1 Set
Product Introduction:
...........................................................................................................................................................................................................
Main Application:
Specialize for the plastic product with need to be welded material together and cut the extra edge out simultaneously.
This kind of machine can be also called as hf simultaneous welding and cutting machine.Mainly apply for welding and cutting
APET,PETG,GAG, Double side clamshell,blister+cardboard,leather,OPP,PU and many other environment-friendly materials.
Like toliet cover, toothbrush package, soft crease plastic box making, heat preservation bags,watch belt and so on.
...........................................................................................................................................................................................................
Feature:
product categories
We have divided our high frequency synchronous welding and cutting machines into several different product categories;
1.Automatic turntable high frequency synchronous welding and cutting machine(with/without robot)
2.automatic sliding way high frequency synchronous welding and cutting machine
3.manual shuttle way high frequency synchronous welding and cutting machine
4.Double heads high frequency synchronous welding and cutting machine.
5.manual turntable high frequency only welding machine(with/without robot),
Stable frequency
In strict accordance with the requirements of "Committee on Radio Interference" (CISPR).
Oscillation Frequency: 27.12/40.68 MHZ. With a cycle stabilizer and a device for suppression of leakage of the magnetic flux.
Minimal interferes with the outside equipment.
European model squarness high frequency vibration box to support more realible and stable in output.
Spark restrains

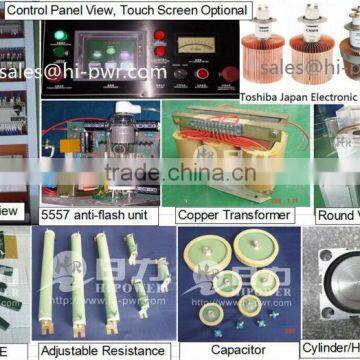

With NL-5557 high sensitivity spark suppression circuits, Accurate detection of the imbalance current. Can instantly cut off
the supply of the oscillation loop to restrain the sparks to protect the mold, raw materials and products. At the same time
warning lights will send you the alert.
Strong out-put power
Using aluminum material with good quality and low-loss coaxial resonator. More stable output high frequency.
Stronger radiation shielding. A good output waveform. The maximum pressure up to 50T, more efficiency.
Oscillation current regulation
Different output power based on product size and thickness is available.
You can control the welding and guarantee the homogeneity of the quality
Welding mould(die)
High frequency machine must work with high frequency welding die. More than getting perfect welding and cutting
effect,we do some special treatment on the welding die by ourselves to make it more durable. Our client can use it
for about 10 million times without any replacement of the down mould.
H shape construction frame
Installed with H shape construction frame to support high working pressure.
shuttle style with two working positions to achieve high productivity.
Security
With over-voltage, over-current protection devices, can automatically cut off the supply to protect the oscillation tube
and the rectifier, at the same time avoid frequency drift.
...........................................................................................................................................................................................................
Machine Parameter:
Model: HR-5000TAK HR-8000TAK
HF power: 5000W 8000W
Power supply: 380V 50/60Hz
Frequency: 27.12MHz
Input power: 8KVA 15KVA
Rectifier: silicon diode
Oscillation tube: 7T85RB 8T85RB
Maxpressure: 3T 5T
Gap of eletrode: 200MM
Size of active horn: 60MM
size of upper plate: 200*300mm 300*400mm
size of lower plate: 350*700mm 350*7000mm
Range of temperature: 1C-160°C adjustable
welding time : 0-10S adjustable
productivity: Equal or less than 35000times/8H
Operation mode: hydraulic
...........................................................................................................................................................................................................

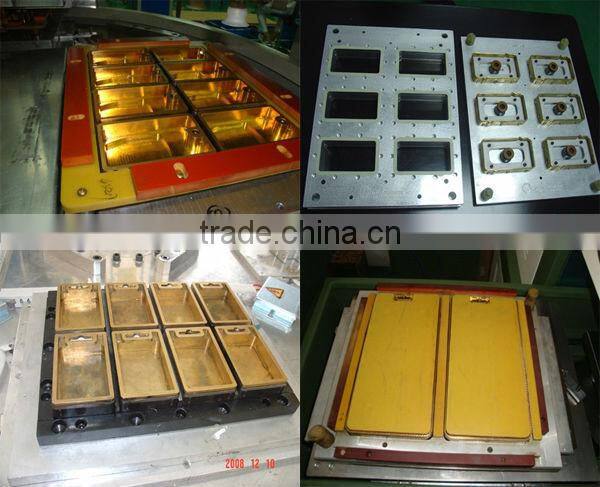

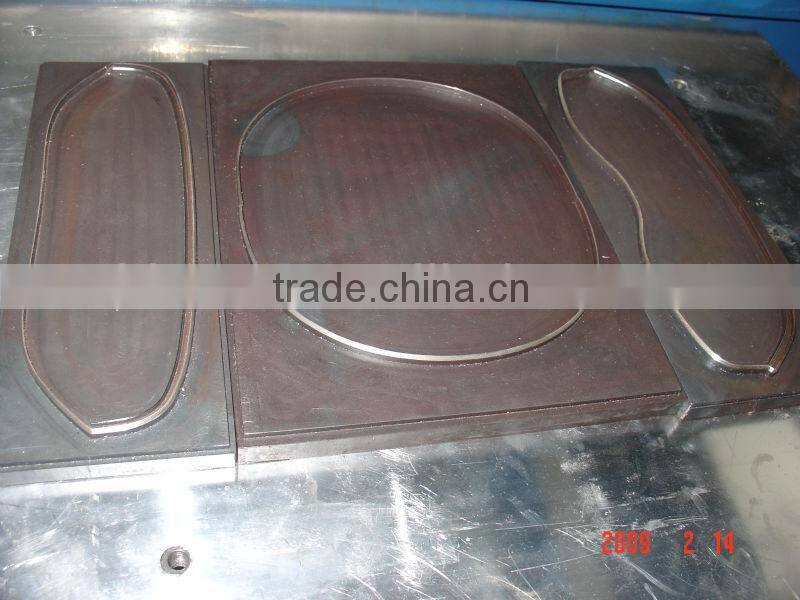

Moulds views:

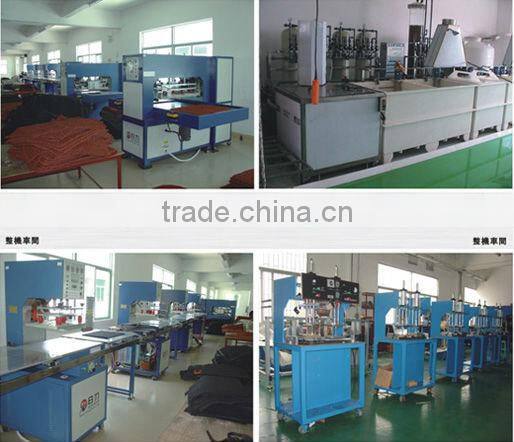

Workshop:
Packing for shipment:

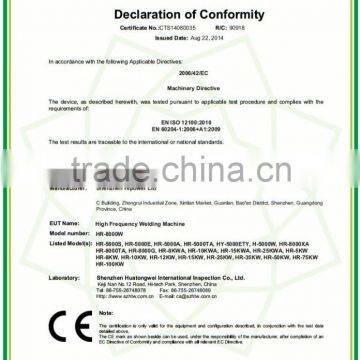

Certificate:
