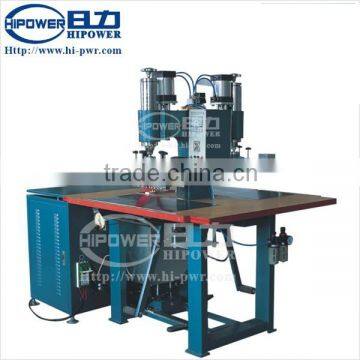

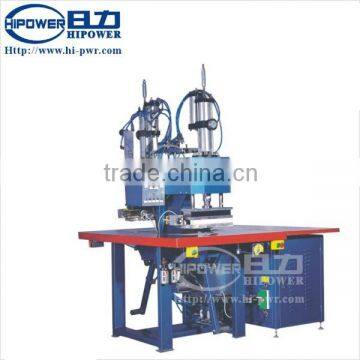

Double Heads High Frequency Welding Machine
1: Positionning accuracy
The machine with high-precise positioning system can easily fix precise position. The processing quality is greatly improved.
2:Anti-spark protection
When spark occur, the high sensitiveness spark protects electric system, cuts high frequency power immediatly to protect mould and material
3: Easy tuning and special protection circuit
The selectable output power ensured a stable quality of the products for it could reduce the heating time when joining is being carried out
4: NO high frequency radiation
This machine has good shielding device, all the parameters pass inspection of state departments
High frequency welding machine is suitable for handbag, small spraying toys, leather products and PVC products.
Technique specifications
Model | HR-5000TA |
Power | 5000W |
Voltage | 220V/380V 50/60HZ |
Frequency | 27.12MHZ |
Input power | 8KVA |
Rectifier | SILICON DIODE |
Oscillation tube | 7T85RB |
Max pressure | 280kg |
The gap of electrode | 160~200MM |
The moving distance of active horn | 60MM |
The size of upper electrode | 120*290mm |
The size of lowwer electrode | 350*700mm |
The range of temperature | 30~200 Adjustable |
Welding time | 0~10S Adjustable |
Way of pressure | pneumatic |
Productivity | 3000~4000times/8h |
Net weight | 330kg |
Overall dimension | 1720*1100*1500 |
The manufacturer has right to modify the design and parameter
Unique Features:
1. CE rated machine; easy opeartion, training and maintainace | |||||
| 2. Customer's site installation, training & maintainance available | |||||
| 3. Grounding Press Platen behind welding electrode, to prevent hurting workers during welding process | |||||
| 4. Copper Made Transformer; NL-5557 anti-spark system; European style HF generator design; | |||||
| 5. Optional design on request: Servo-motor; PLC control, Human-machine-interace system | |||||

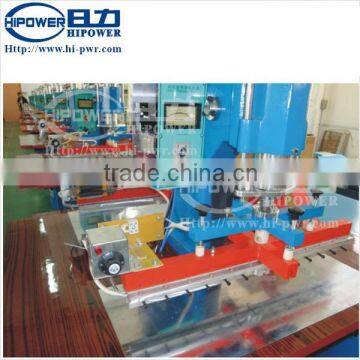

Machine Unit Views:
All machines are completely safe for the operator and fully comply with CE regulations.
2. 12-24 hours Online service by Email, Fax, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Recommend equipment of top choice based on your requirements for product;
7. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
We use Ply-wood case for packing machines, it will meet export standard like safty, protection requirment and durable performance in long time shipping by sea or by air.
We can provide non-solid wood packing decleartion, our packing no need fumigation.
Questions 01. How Do You Pack the machines
RE: Our machines will be packed into wood case, (we will process the wood case and make sure it is exporting standard, and no need addtional fumugation)
Questions 02. Is it difficult to install the machine ?
RE: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine;
you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get install videos, and install instructions from us.
It will be an ABC thing to install machines at your side.
Questions 03. How Does Customer Use the machines
RE: We will provide you operation manual and diagram of machine in English.
For automatic machine and custom machine, we will provide operation videos to you.
Questions 04. Does the machine need compressed air ?
RE: Generally speaking, if your factory with compressed air source, then connect to machine.
If not, please buy a 2Psi -5 Psi air compressor.
If customer request to use Hydraulic pressure, please inform us when put an order.
Questions 05. Does the machine power voltage meet buyers' factory power source?
RE: We can make machine with voltage like:
frequency: 50 - 60HZ Phases: single phase / 3 phases
Voltage: 110V / 220V / 380V/ 415V/ 440V / On request
Please kindly inform us what frequency/phases/voltage you want, when you put order to us.

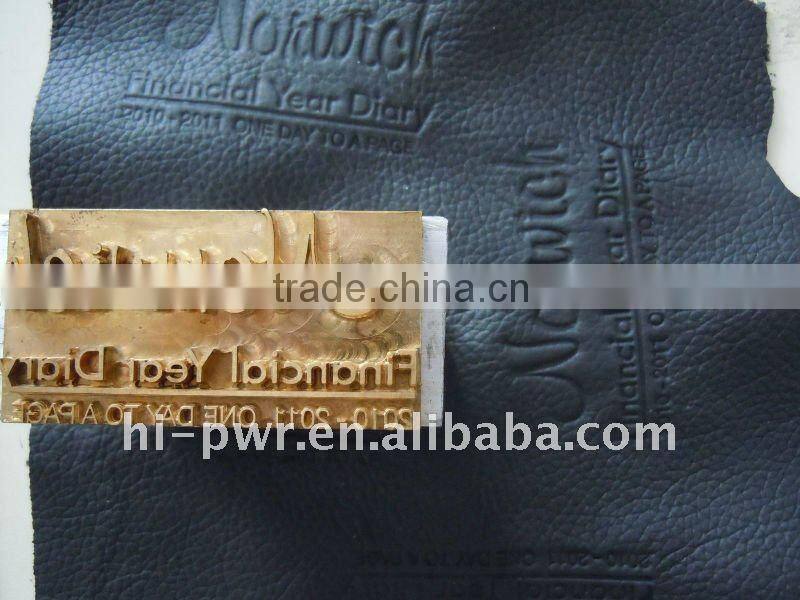

Questions 06. Could you make die / mould for me, if I buy machine from you?
RE: We design and make moulds up to product sample or drawings, we charge the mould price at facory cost price.
Questions 07. Can I visit you factory to check machines on-site ?
RE: We are manufacturer, and we welcome customers to visit our factory.
We located in Shenzhen, China; you may come to us by following:
a) Via. Hongkong to Shenzhen :
please reach check points between Hongkong and Shenzhen, we will arrange to pick you up from Check-point like Shekou, Lohu
b) Via. Guangzhou to Shezhen;
you may come by train to Shenzhen Luohu Station / Shenzhen North Railway Station.
we will arrange to pick you up from station.
c) Via. Shenzhen Airport :
Please inform us your flight number and contact information before you come, we will meet you at airport.
Questions 08. What Should I bring when I visit your factory?
RE: For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
For common product, it is enough to show us product pictures or drawings.
CE certificates:
