Home > Products > High Frequency Welding Machine > Rotating Talbe High Frequency Welding&cutting Machine

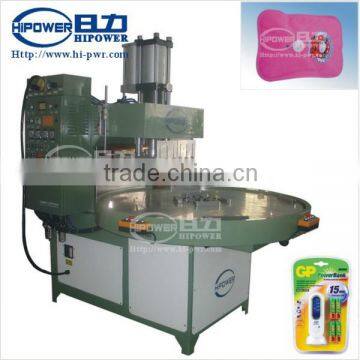

Rotating Talbe High Frequency Welding&cutting Machine
- Shenzhen
- T/T Money Gram Credit Card
You May Like
-
Radio Frequency Automatic Blister Packaging Machine
-
High Frequency Welding and Cutting Machine for Shoe-pad
-
HF Blister Welding and Cutting Machine
-
HR-15KW-4AC Full Automatic Rotary High Frequency Welding and Cutting Machine With Robot
-
HR-8000TAK Two Heads Pedal Style High Frequency Welding and Cutting Machine
-
High Frequency Blister Welding Machine
Product Details
| Condition | New | Application | Other, Packaging | |
| Packaging Material | Other, PVC or PVC based | Automatic Grade | Automatic | |
| Driven Type | Pneumatic | Voltage | 380V/220, 380V 50/60HZ | |
| Power | 8000W | Place of Origin | Guangdong, China | |
| Brand Name | Hipower | Model Number | HR-8KW-3AC | |
| Weight | 600GS | Dimension(L*W*H) | 2.2M | |
| Certification | CE, CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Rotating talbe High frequency welding&cutting machine
Character
The design loop of HQ oscillation under Low energy consumption, self-developed of fully automatic following-up mechanism of control power to keep the same standard of each moulding and power consumption of 15-25% off
Welding and cutting simultaneously (optional configuration)
Adjustable cutting pressure,1---20 ton,capable of prearrangement,realible and stable in output.
Automatic working-plate and circumrotation,optional positions 3-6,working more efficiency.
Fixed with precision decollator,accurate-orientation,error+-10um.
Adopting high sensitive anti-sparkle device,avoid damaging the mould.
Automatical Feeding and taking materials under the control of manipulator
European-model squareness high frequency vibration box,more realible and stable in output.
Technique specifications
Model | HR-8KW-3AC |
Power | 8KW |
Voltage | 380V 50/60Hz |
Frequency | 27.12MHz |
Input power | 15KVA |
Rectifier | SILICON DIODE |
Oscillation tube | 7T69RB |
Max pressure | 15T |
Operation mode | oil pressure |
The max distance of electrodes | 200MM |
The moving distance of active horn | 100MM |
The size of upper electrode | 300*400 mm |
The size of lowwer electrode | 350*450 mm |
The range of tempreture | 30~200 Adjustable |
Welding time | 0~10S Adjustable |
Productivity | Equal or less 5000times/8h |
Net weight | 1.2T |
Overall dimension | 2000*1550*2200 mm |
The manufacturer have the right to modify the design and specilfication without prior notice
Unique Features:
All machines are completely safe for the operator and fully comply with CE regulations.
2. 12-24 hours Online service by Email, Fax, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Recommend equipment of top choice based on your requirements for product;
7. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
We use Ply-wood case for packing machines, it will meet export standard like safty, protection requirment and durable performance in long time shipping by sea or by air.
We can provide non-solid wood packing decleartion, our packing no need fumigation.
Questions 01. How Do You Pack the machines
RE: Our machines will be packed into wood case, (we will process the wood case and make sure it is exporting standard, and no need addtional fumugation)
Questions 02. Is it difficult to install the machine ?
RE: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine;
you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get install videos, and install instructions from us.
It will be an ABC thing to install machines at your side.
Questions 03. How Does Customer Use the machines
RE: We will provide you operation manual and diagram of machine in English.
For automatic machine and custom machine, we will provide operation videos to you.
Questions 04. Does the machine need compressed air ?
RE: Generally speaking, if your factory with compressed air source, then connect to machine.
If not, please buy a 2Psi -5 Psi air compressor.
If customer request to use Hydraulic pressure, please inform us when put an order.
Questions 05. Does the machine power voltage meet buyers' factory power source?
RE: We can make machine with voltage like:
frequency: 50 - 60HZ Phases: single phase / 3 phases
Voltage: 110V / 220V / 380V/ 415V/ 440V / On request
Please kindly inform us what frequency/phases/voltage you want, when you put order to us.
Questions 06. Could you make die / mould for me, if I buy machine from you?
RE: We design and make moulds up to product sample or drawings, we charge the mould price at facory cost price.
Questions 07. Can I visit you factory to check machines on-site ?
RE: We are manufacturer, and we welcome customers to visit our factory.
We located in Shenzhen, China; you may come to us by following:
a) Via. Hongkong to Shenzhen :
please reach check points between Hongkong and Shenzhen, we will arrange to pick you up from Check-point like Shekou, Lohu
b) Via. Guangzhou to Shezhen;
you may come by train to Shenzhen Luohu Station / Shenzhen North Railway Station.
we will arrange to pick you up from station.
c) Via. Shenzhen Airport :
Please inform us your flight number and contact information before you come, we will meet you at airport.
Questions 08. What Should I bring when I visit your factory?
RE: For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
For common product, it is enough to show us product pictures or drawings.
