Product Details
| Place of Origin: | Guangdong, China | Brand Name: | KATO/OEM | Model Number: | HDCA01 |
Product Description

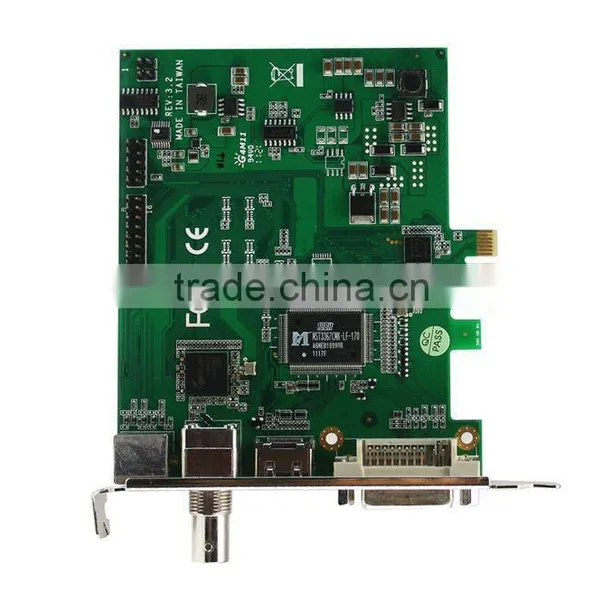

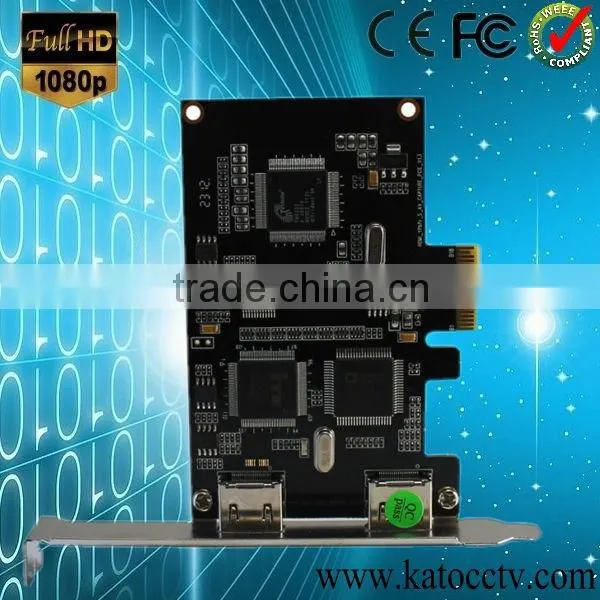

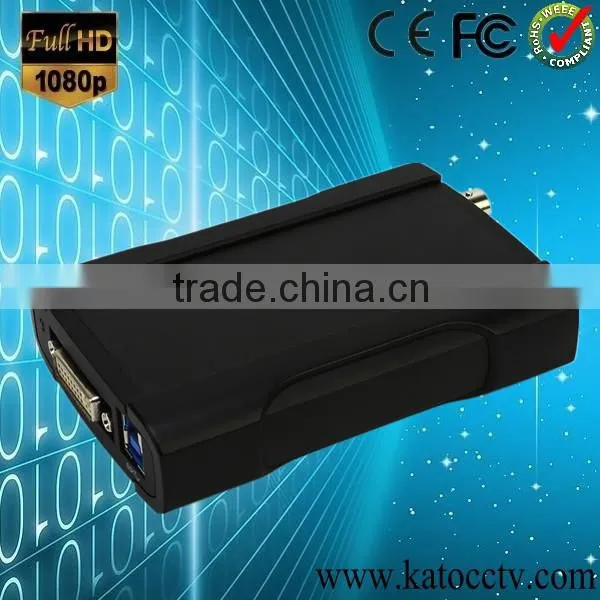

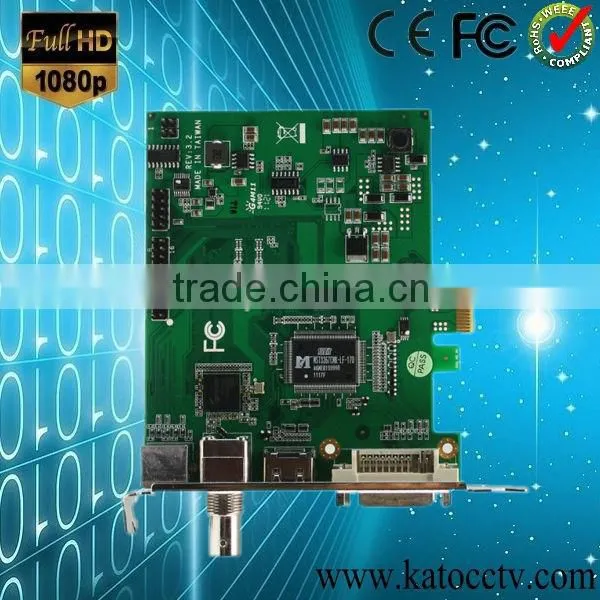

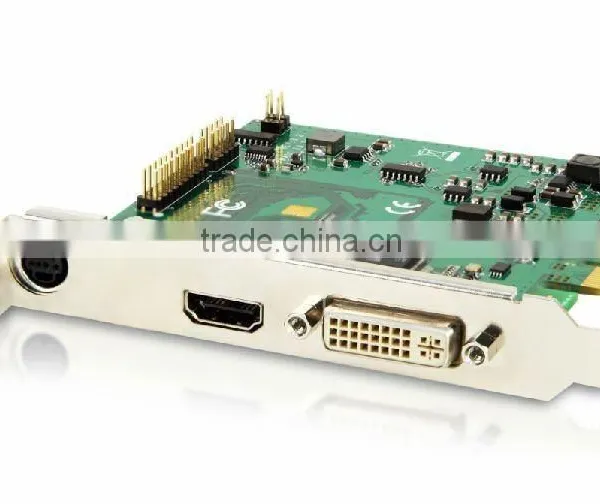

Digital Camera Frame Grabber HDCA01
HDMI Video Capture Card with Y/Pb/Pr AV S-Video RCA Output Overview
It’s a high-performance HD / high quality Audio Video grabber, with AV, S-Video, Ypbpr, HDMI, etc. multi interface, support 1920*1080 full HD video capture.
Feature
Support standard “DIRECT SHOW API”
Support “Windows Media Encoder”
Support SD & HD input simultaneously
Support multi cards working on one machine
Real HD video grabber. Support 1920*1080 input display and record
Support AV, S-Video, Ypbpr, HDMI input(DVI to HDMI)
View DVB/Camera/HD Player/Playstation/HD STB’s video on PC smoothly, the playback resolution up to 1920*1080I
Full support SD / HD video capture, resolution: 320*240/480i/480p/576i/720p/1080i(1920*1080)
Real-time MPEG-2 compress
Static picture capture, stereophony collect
High compatibility: Support WINDOWS XP /VISTA/ 7,HDCP 1.2 /HDMI 1.3.
HDMI Video Capture Card with Y/Pb/Pr AV S-Video RCA Output Parameters:
Interface | PCIe*1 pci-e hdmi video capture card |
Video Input | 1*HDMI, 1*S-Video, 1*AV, 1*Ypbpr |
Video Display | YUY2 |
Video Resolution | NTSC/PAL |
1920*1080i@60/50fps 1280*720p@60/50fps 720*480i@60fps 720*576i@50fps | |
Video Record Format | MPEG4/H.264(Depend on Software Application) |
Video Record Resolution | NTSC/PAL |
1920*1080i@60/50fps 1280*720p@60/50fps 720*480i@60fps 720*576i@50fps | |
Audio Output | 2*RCA |
Audio Format | Stereo/16-bit/3200-4800Hz |
Accessories:
Video grabber, 7 in 1 switch wiring, Disk, Half-height Baffle, User Manual, etc.
