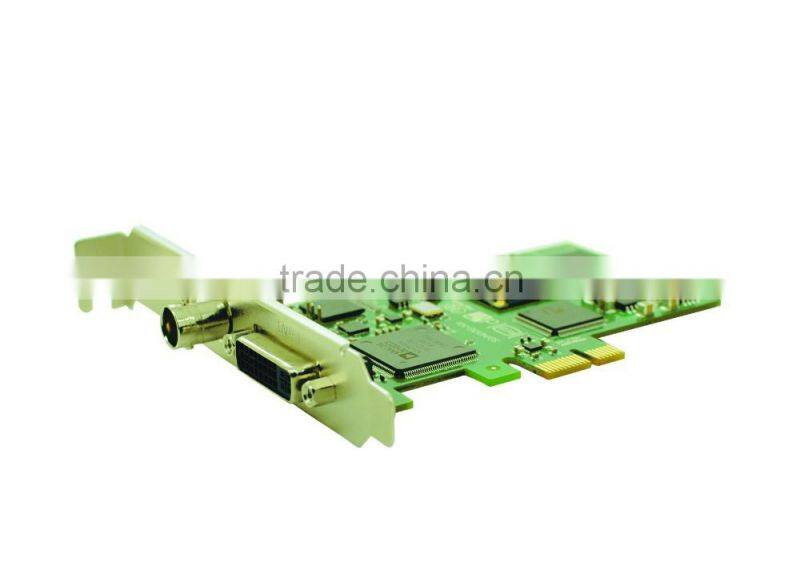

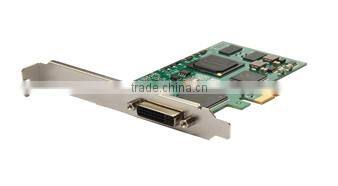

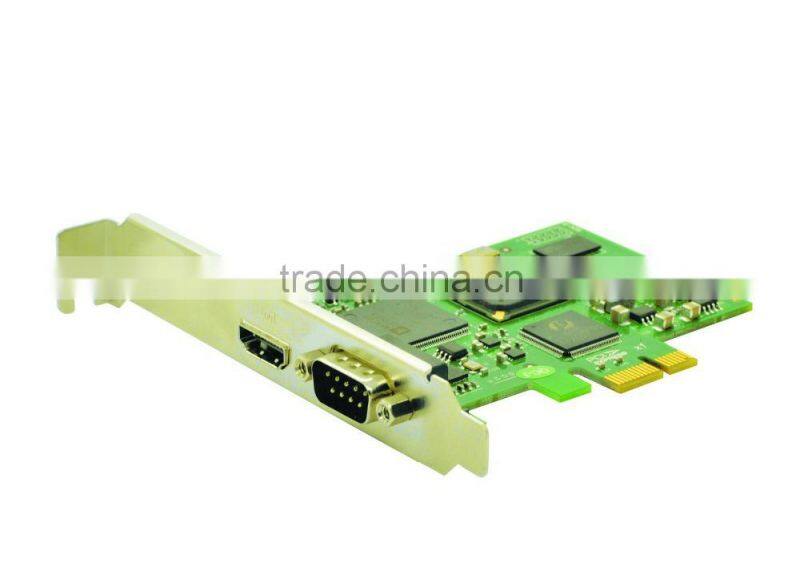

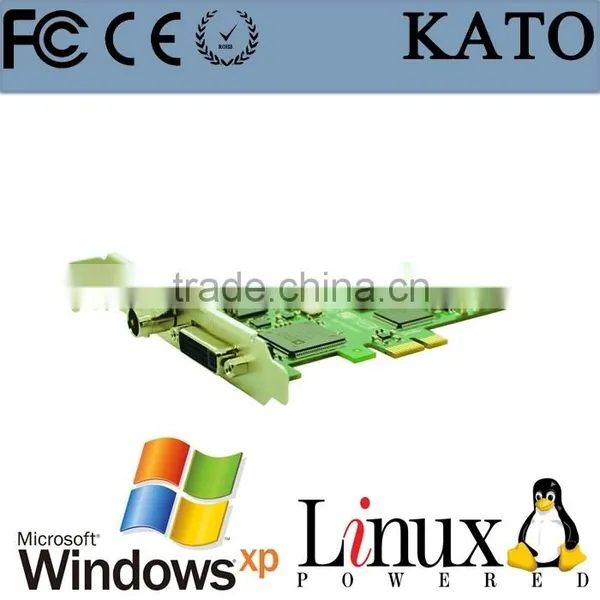

HD Capture Card Pci Express Linux Hdmi Video Capture Card With Usb Output

Name: HD Capture Card Pci Express Linux Hdmi Video Capture Card With Usb Output
Brand: KATO/OEM, KATO/OEM
SKU: 112809899
Availability: InStock

Shenzhen KATO Vision Co., Limited

HD Capture Card Pci Express Linux Hdmi Video Capture Card With Usb Output thumbnail-1

HD Capture Card Pci Express Linux Hdmi Video Capture Card With Usb Output thumbnail-2

HD Capture Card Pci Express Linux Hdmi Video Capture Card With Usb Output thumbnail-3

HD Capture Card Pci Express Linux Hdmi Video Capture Card With Usb Output thumbnail-4

HD Capture Card Pci Express Linux Hdmi Video Capture Card With Usb Output thumbnail-5

HD Capture Card Pci Express Linux Hdmi Video Capture Card With Usb Output thumbnail-6

HD Capture Card Pci Express Linux Hdmi Video Capture Card With Usb Output photo-1

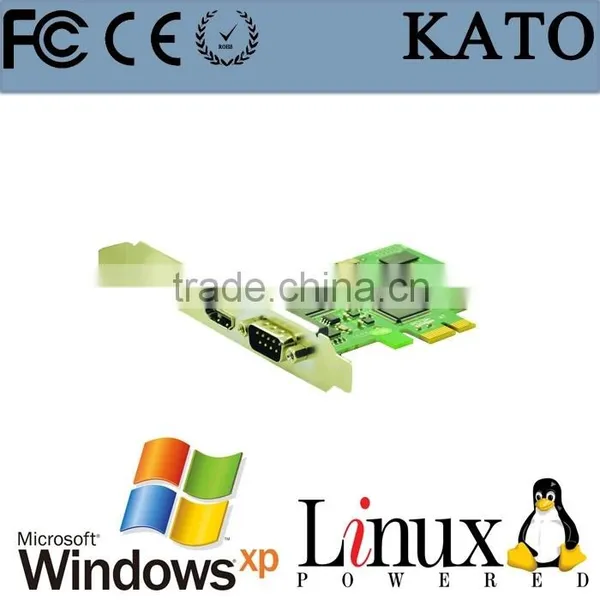

HD Capture Card Pci Express Linux Hdmi Video Capture Card With Usb Output photo-2

HD Capture Card Pci Express Linux Hdmi Video Capture Card With Usb Output photo-3

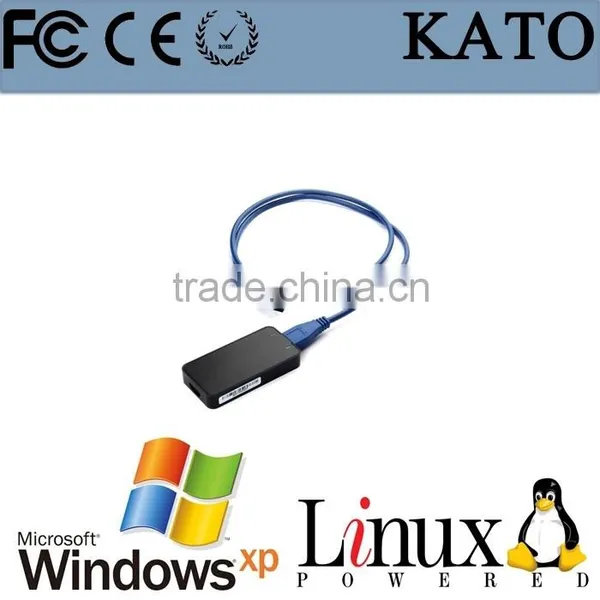

HD Capture Card Pci Express Linux Hdmi Video Capture Card With Usb Output photo-4

HD Capture Card Pci Express Linux Hdmi Video Capture Card With Usb Output photo-5

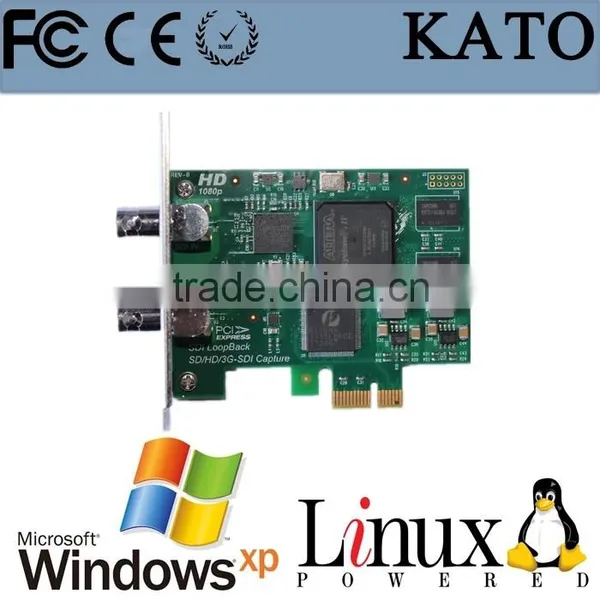

HD Capture Card Pci Express Linux Hdmi Video Capture Card With Usb Output photo-6

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

KATO/OEM, KATO/OEM

Model Number:

HDCA03H, KT-DCA03

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name KATO/OEM, KATO/OEM

Model Number HDCA03H, KT-DCA03

Specifications

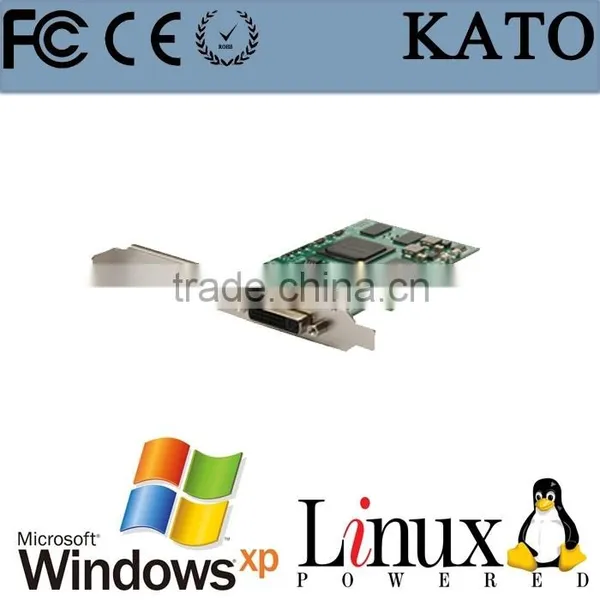

Can capture 1CH HD or 1CH SD video signal.
HD input video signal can reach 1080p/60Hz.
HD signal can capture HDMI,DVI,VGA,Component signal.
Can capture LPCM audio signal of HDMI.

Ultra-Small dimension:104mm x 68.88mm, Compliance with Low-Profile specification.

Microsoft AVStream standard drive can support multimedia video software or streaming Software on most of Windows.

KT-A03H

HD Capture Card Pci Express Linux Hdmi Video Capture Card With Usb Output

Product Description

PCI-Express actual transmission bandwidths something with Host computer chipsets and motherboard may be less than the value written here.
2. The actual output frame rate limited by PCI-Express interface transmission bandwidth,may be lower than the setting value.

Dimension	104mm x 68.88mm
Host Interface	PCI-Express x1, Low Profile, 200MB/s transmission bandwidth
Input Interface	1 pc DVI interface (can switch VGA,HDMI,Component)
Max. sampling rate	HDMI/DVI:225MHz
Onboard Memory	128MB DDR2,working frequency is: 160 MHz,bit wide 32bit
Component input format	480i,576i,480p,576p,720p,1080i,1080p
DVI input format	480i,576i,480p,576p,720p,1080i,1080p
HDMI input format	In accordance with HDMI 1.3 standard, support 36bit Deep Color
VGA input format	640x400-2048x1536,Pixel rate can be lower than 170MHz
CVBS input standard	PAL/NTSC
HD output image format	Size:40x30-2048x1536,Frame rate: 1-100 fps,color:YUY2, UYVY, RGB24, RGB32, I420
SD output image format	Size:176x144-768x576,Frame rate: 1-30 fps,color:YUY2, UYVY, RGB24, RGB32, I420
Operating System Support	Support the following operating systems on x86 and x64 versions: Windows® XP Professional Windows® Server 2003 Windows Vista®, Windows® Server 2008 Windows® 7 Windows® Server 2008 R2
Power Consumption	<= 8W
Operating Temperature Range	0-50℃
Storage Temperature Range	-20-70℃
Relative Humidity Range	5%-90%

Company Information

KATO VISION Co.,Ltd established in 2004,located in Shenzhen Wuzi industrial park,Specialize in video conference research and development,OEM/ODM service,commit to supply Hi-tech,High-quality and Humanized products.Our products including HD/SD PTZ video conference camera,HD IP camera,HD CCTV camera,ect.,they 're widely used in more than 9 field,such as Medical,College,Finance,Telecommunication,Justice,Electricity,Municipal Administration,Water Conservancy,ect,hot selling in more than 50 countries.

For a better service to our customers,we established more than 10 agencies all over the China,you can expore any ports is so convenient.

We are leading and old established firm of exporters,and we are in a very good position to supply most grades of conference camera products.Therefore,our past years's experience,we are well qualified to take care of your interesteds and quote a video camera prices to you.

Our Services

7 Days Return Guarantee,15 Days Exchange Promise, world-wide after-sales service

If you feel interested ,pls contact me without hesitation
