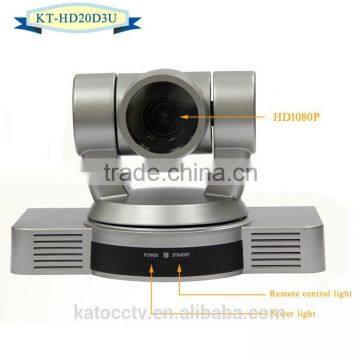

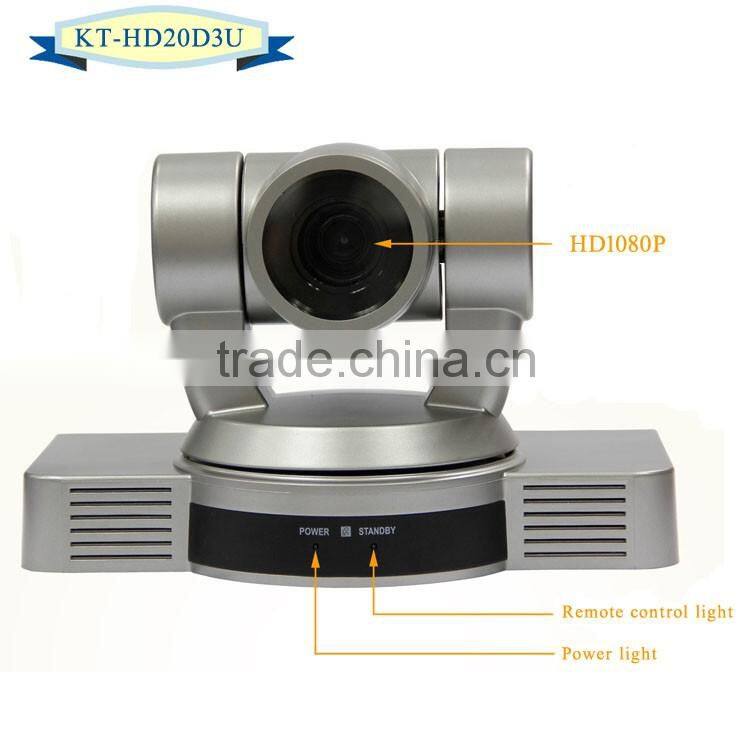

1080P High Quality USB or PTZ Camera With 20X Zoom Capabilities
1080P high quality USB or PTZ camera with 20X zoom capabilities
Features:
1. Integrated and delicate design;
2. 1/3" CMOS, 2.07 Megapixels;
3. Using precision step motor driver, Flexible operation& control, positioning accuracy (± 0.1 °);
4.Unique 355 degree horizontal unlimited consecutive pan, tilt range 120 degrees;
5. Maximum horizontal rotation speed of 80 ° / sec, vertical rotation speed of 60 ° / sec;
6. 9 preset positions by IR remote controller, 255 preset positions by PC or keyboard controller, memory auto store when power off;
7. VISCA and PELCO P / D protocol optional;
8. Enter and exit the menu via IR remote controller “M-OPEN” button directly;
9. 254 addresses can be set (can be controlled 7 cameras via VISCA);

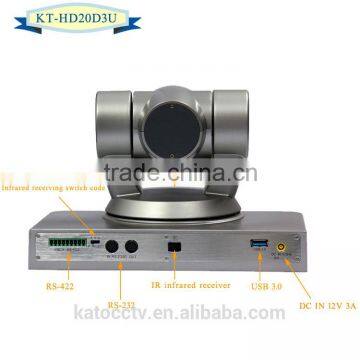

10. Multi control methods available, support IR remote control, RS-232C / 422 serial controls;
11. Multi-installation methods: wall mounting, desktop or ceiling mounting;
12. Information feedback automatically prompts;
13. Preset automatically correct;
14. Full compatibility with SONY terminal.
1080P high quality USB or PTZ camera with 20X zoom capabilities
Parameters:
Item No. |
KT-HD20D3U |
Image Sensor |
1/3’’ CMOS |
Effective Pixels |
2.07 Megapixels |
Resolution HD |
1080p20/15, 720p30/25 |
Signal System |
PAL/NTSC |
Lens |
10X optical zoom, f=4.4mm(wide angle end)~44.0 mm(far end) |
Horizontal View Angle |
50.6°(W)~5.5°(T) |
Focus System |
Auto/Manual |
Minimum Illumination |
0.1Lux |
Shutter Speed |
1/30~1/10,000s |
Gain |
Auto/Manual |
White Balance |
Auto/ Indoor/Outdoor/Manual |
Image Effect |
Full color/black and white/Electronic flip |
S/N Ratio |
≥50db |
Pan |
355°(max. speed:80°/s) |
Tilt |
-30° to +90° (max. speed: 60°/s) |
Preset Position |
9 preset positions by IR Remote, 255 preset positions by Keyboard |
Video Output HD |
USB3.0 |
Video Output SD |
No |
Control Protocol |
SONY VISCA, PELCO P/D |
Control Mode |
RS-232C, RS-422/485 |
Power |
12V DC(10.8~13.0V DC) |
Power Consumption |
Max. 30W(DC 12V) |
Operating Temperature |
0~40℃ |
Storage Temperature |
-20-60℃ |
Dimensions |
(L)262×(W)165×(H)157mm |
Weight |
1710g |
Color |
Silver White |
Accessories |

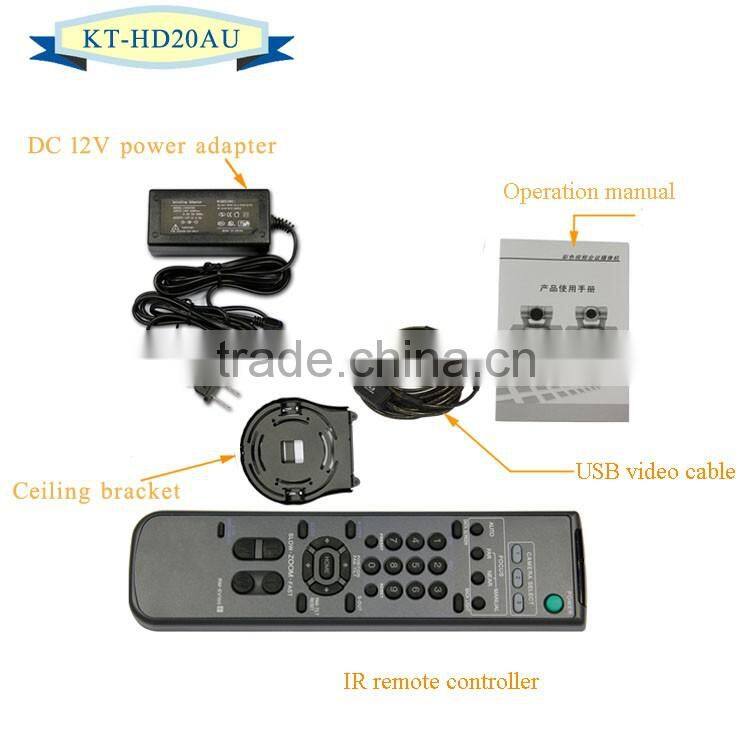

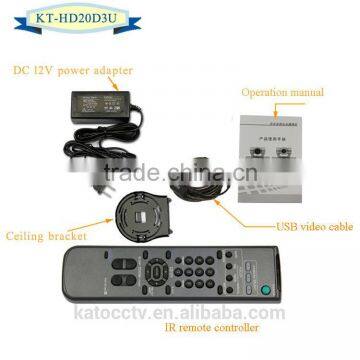

DC 12V power adapter, IR Remote, Operation manual, USB3.0 cable, Ceiling bracket |
KATO VISION CO.,LTD is a video conference camera manufacturer since 2004, has been in
this line for over 12 years. We have Standard, HD USB video conference camera with high quality and competitive price. We also supply omnidirectional microphone, keyboard controller and video capture card. Our company has established a sound sales & service network. Office have been set up in Beijing, Guangzhou, Xian, ect. More than 10 agencies and many partners spread throughout China. We are sincere to cooperate with all friends to promote the most convenient and efficient conference and education atmosphere .
