Home > Products > USB PTZ Video Conference Camera > 3x video full hd PTZ USB Video Conference Camera optical zoom hd cam

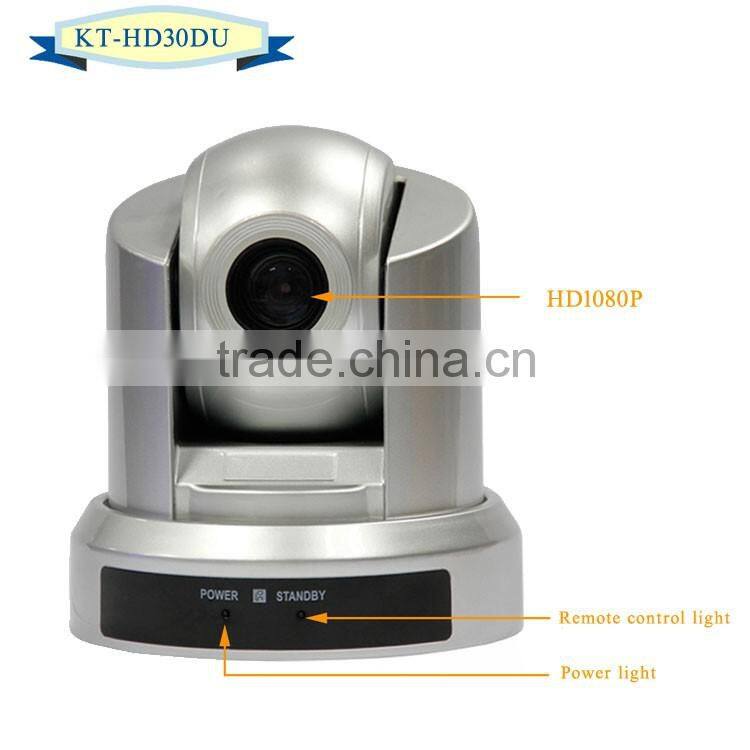

3x video full hd PTZ USB Video Conference Camera optical zoom hd cam
- 9999 Set / Sets per Month
- Shenzhen
- Credit Card
- 7 inch TFT Monitor DIGITAL Wireless Farm Cctv Systems
- 7 inch TFT Monitor DIGITAL Wireless New Backup Camera Kit with 2.4GHz digital signal
- 7 inch TFT Monitor Digital Reversing Camera System with 2.4GHz digital signal
- 7 inch TFT Monitor Wireless Back Up Systems with 2.4GHz digital signal
- Car Camera Wireless Transmitter System For Bus
- 7inch digital 2.4g wireless surveillance camera system For Bus
Product Details
Place of Origin: | Guangdong, China | Brand Name: | KATO/OEM | Model Number: | KT-HD30DU |
Type: | Analog Camera | Style: | Mini Camera | Sensor: | CMOS |
Technology: | Pan / Tilt / Zoom | Special Features: | Other, HD Video Conference Camera |
Product Description
3x video full hd PTZ USB Video Conference Camera optical zoom hd cam
Features:
1. Integrated and delicate design;
2. 1/3" CMOS, 2.07 Megapixels;
3. Using precision step motor driver, Flexible operation& control, positioning accuracy (± 0.1 °);
4.Unique 355 degree horizontal unlimited consecutive pan, tilt range 120 degrees;
5. Maximum horizontal rotation speed of 80 ° / sec, vertical rotation speed of 60 ° / sec;
6. 9 preset positions by IR remote controller, 255 preset positions by PC or keyboard controller, memory auto store when power off;
7. VISCA and PELCO P / D protocol optional;
8. Enter and exit the menu via IR remote controller “M-OPEN” button directly;
9. 254 addresses can be set (can be controlled 7 cameras via VISCA);
10. Multi control methods available, support IR remote control, RS-232C / 422 serial controls;
11. Multi-installation methods: wall mounting, desktop or ceiling mounting;
12. Information feedback automatically prompts;
13. Preset automatically correct;
14. Full compatibility with SONY terminal.
3x video full hd PTZ USB Video Conference Camera optical zoom hd cam
Parameters:
Item No. | KT-HD30DU |
Image Sensor | 1/2.8’’ CMOS |
Effective Pixels | 2.07 Megapixels |
Resolution HD | 1080p20/15, 720p30/25 |
Signal System | PAL/NTSC |
Lens | 10X optical zoom, f=4.4mm(wide angle end)~44.0 mm(far end) |
Horizontal View Angle | 60.9°(W)~6.43°(T) |
Focus System | Auto/Manual |
Minimum Illumination | 0.1Lux |
Shutter Speed | 1/30~1/10,000s |
Gain | Auto/Manual |
White Balance | Auto/ Indoor/Outdoor/Manual |
Image Effect | Full color/black and white/Electronic flip |
S/N Ratio | ≥50db |
Pan | 355°(max. speed:80°/s) |
Tilt | -30° to +90° (max. speed: 60°/s) |
Preset Position | 9 preset positions by IR Remote, 255 preset positions by Keyboard |
Video Output HD | USB2.0 |
Video Output SD | No |
Control Protocol | SONY VISCA, PELCO P/D |
Control Mode | RS-232C, RS-422/485 |
Power | 12V DC(10.8~13.0V DC) |
Power Consumption | Max. 30W(DC 12V) |
Operating Temperature | 0~40℃ |
Storage Temperature | -10-60℃ |
Dimensions | (L)135×(W)130×(H)144mm |
Weight | 768g |
Color | Silver White |
Accessories | DC 12V power adapter, IR Remote, Operation manual, USB2.0, Ceiling bracket |
KATO VISION CO., LIMITED
Skype: sales06 KATO
TradeManager: cn1001158615
Mobile:0086-755-89500973
Website: /
Address:4/F, Block B, Dexinchang Industrial Park, Qingxiang Rd., Longhua district, Shenzhen 518109, China.
