Home > Electrical & Electronics > Connector & Terminals > Terminals > 16mm2 Copper Tube Terminal Cable Lugs
16mm2 Copper Tube Terminal Cable Lugs
US$ 0.05 - 0.5
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JIONG
Model Number:
SC
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
JIONG
Model Number
SC
Type
Lug
Product Description
1) Application: Connection of wires in distribution equipment or power supply cable with electronic apparatus.
2) Material: T2 copper tube by dies cast, good conductivity
3) Tinned Surface: corrosion resistance
4) Certificate: ISO9001-2008
Application
These products are suitable for the connection of copper conductors(section 1.5-1000mm2)in power cable with electronic equiqment.They are made of with higher 99.9 percent pute copper tube T2 and coated with tin.Working temperature-55ºC-150ºC.

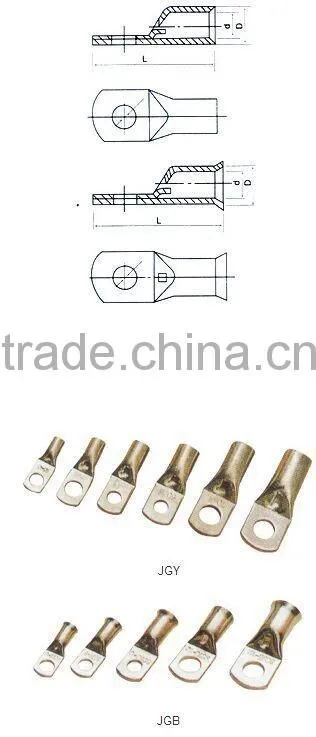

| Type | Φ | D | d | L |
| SC(JGA)-1.5 | Φ4.2,Φ5.2 | 3.5 | 1.8 | 18 |
| SC(JGA)-2.5 | Φ4.2,Φ5.2,Φ6.2 | 4 | 2.5 | 19 |
| SC(JGA)-4 | Φ5.2,Φ6.2 | 4.8 | 3.1 | 21 |
| SC(JGA)-6 | Φ5.2,Φ6.2,Φ8.2 | 5.5 | 3.8 | 24 |
| SC(JGA)-10 | Φ6.2,Φ8.2 | 6.8 | 4.5 | 25.5 |
| SC(JGA)-16 | Φ6.2,Φ8.2,Φ10.5 | 7.5 | 5.5 | 30.5 |
| SC(JGA)-25 | Φ6.2,Φ8.2,Φ10.5 | 9 | 7 | 34 |
| SC(JGA)-35 | Φ6.2,Φ8.2,Φ10.5,Φ12.5 | 10.5 | 8.2 | 38 |
| SC(JGA)-50 | Φ8.2,Φ10.5,Φ12.5 | 12.5 | 9.8 | 45 |
| SC(JGA)-70 | Φ8.2,Φ10.5,Φ12.5 | 14.5 | 11.5 | 50 |
| SC(JGA)-95 | Φ10.5,Φ12.5 | 17.5 | 13.8 | 55.5 |
| SC(JGA)-120 | Φ12.5,Φ16.5 | 19.5 | 15.5 | 63 |
| SC(JGA)-150 | Φ12.5,Φ16.5 | 21 | 16.5 | 71 |
| SC(JGA)-185 | Φ16.5 | 23.5 | 18.8 | 78 |
| SC(JGA)-240 | Φ16.5 | 26.5 | 21 | 92 |
| SC(JGA)-300 | Φ16.5,Φ20.5 | 30 | 24 | 102 |
| SC(JGA)-400 | Φ16.5,Φ20.5 | 34 | 26.5 | 113 |
| SC(JGA)-500 | Φ16.5,Φ20.5 | 38 | 30 | 123 |
| SC(JGA)-630 | Φ20.5 | 45 | 35 | 135 |
| SC(JGA)-800 | Φ22.5 | 50 | 39 | 170 |
| SC(JGA)-1000 | Φ22.5 | 56 | 44 | 200 |
| Type | Φ | D | d | L |
| SC(JGK)-1.5 | Φ4.2,Φ5.2 | 3.5 | 1.8 | 18 |
| SC(JGK)-2.5 | Φ4.2,Φ5.2,Φ6.2 | 4 | 2.5 | 19 |
| SC(JGK)-4 | Φ5.2,Φ6.2 | 4.8 | 3.1 | 21 |
| SC(JGK)-6 | Φ5.2,Φ6.2,Φ8.2 | 5.5 | 3.8 | 24 |
| SC(JGK)-10 | Φ6.2,Φ8.2 | 6.8 | 4.5 | 25.5 |
| SC(JGK)-16 | Φ6.2,Φ8.2,Φ10.5 | 7.5 | 5.5 | 30.5 |
| SC(JGK)-25 | Φ6.2,Φ8.2,Φ10.5 | 9 | 7 | 34 |
| SC(JGK)-35 | Φ6.2,Φ8.2,Φ10.5,Φ12.5 | 10.5 | 8.2 | 38 |
| SC(JGK)-50 | Φ8.2,Φ10.5,Φ12.5 | 12.5 | 9.8 | 45 |
| SC(JGK)-70 | Φ8.2,Φ10.5,Φ12.5 | 14.5 | 11.5 | 50 |
| SC(JGK)-95 | Φ10.5,Φ12.5 | 17.5 | 13.8 | 55.5 |
| SC(JGK)-120 | Φ12.5,Φ16.5 | 19.5 | 15.5 | 63 |
| SC(JGK)-150 | Φ12.5,Φ16.5 | 21 | 16.5 | 71 |
| SC(JGK)-185 | Φ16.5 | 23.5 | 18.8 | 78 |
| SC(JGK)-240 | Φ16.5 | 26.5 | 21 | 92 |
| SC(JGK)-300 | Φ16.5,Φ20.5 | 30 | 24 | 102 |
| SC(JGK)-400 | Φ16.5,Φ20.5 | 34 | 26.5 | 113 |
| SC(JGK)-500 | Φ16.5,Φ20.5 | 38 | 30 | 123 |
| SC(JGK)-630 | Φ20.5 | 45 | 35 | 135 |
| SC(JGK)-800 | Φ22.5 | 50 | 39 | 170 |
| SC(JGK)-1000 | Φ22.5 | 56 | 44 | 200 |
|
| Type | Φ | D | d | L |
| SC(JGB)-1.5 | Φ4.2,Φ5.2 | 3.5 | 1.8 | 18 |
| SC(JGB)-2.5 | Φ4.2,Φ5.2,Φ6.2 | 4 | 2.5 | 19 |
| SC(JGB)-4 | Φ5.2,Φ6.2 | 4.8 | 3.1 | 21 |
| SC(JGB)-6 | Φ5.2,Φ6.2,Φ8.2 | 5.5 | 3.8 | 24 |
| SC(JGB)-10 | Φ6.2,Φ8.2 | 6.8 | 4.5 | 25.5 |
| SC(JGB)-16 | Φ6.2,Φ8.2,Φ10.5 | 7.5 | 5.5 | 30.5 |
| SC(JGB)-25 | Φ6.2,Φ8.2,Φ10.5 | 9 | 7 | 34 |
| SC(JGB)-35 | Φ6.2,Φ8.2,Φ10.5,Φ12.5 | 10.5 | 8.2 | 38 |
| SC(JGB)-50 | Φ8.2,Φ10.5,Φ12.5 | 12.5 | 9.8 | 45 |
| SC(JGB)-70 | Φ8.2,Φ10.5,Φ12.5 | 14.5 | 11.5 | 50 |
| SC(JGB)-95 | Φ10.5,Φ12.5 | 17.5 | 13.8 | 55.5 |
| SC(JGB)-120 | Φ12.5,Φ16.5 | 19.5 | 15.5 | 63 |
| SC(JGB)-150 | Φ12.5,Φ16.5 | 21 | 16.5 | 71 |
| SC(JGB)-185 | Φ16.5 | 23.5 | 18.8 | 78 |
| SC(JGB)-240 | Φ16.5 | 26.5 | 21 | 92 |
| SC(JGB)-300 | Φ16.5,Φ20.5 | 30 | 24 | 102 |
| SC(JGB)-400 | Φ16.5,Φ20.5 | 34 | 26.5 | 113 |
| SC(JGB)-500 | Φ16.5,Φ20.5 | 38 | 30 | 123 |
| SC(JGB)-630 | Φ20.5 | 45 | 35 | 135 |
| SC(JGB)-800 | Φ22.5 | 50 | 39 | 170 |
| SC(JGB)-100 | Φ22.5 | 56 | 44 | 200 |
