Cable Lugs Types

Cable Lugs Types thumbnail-1

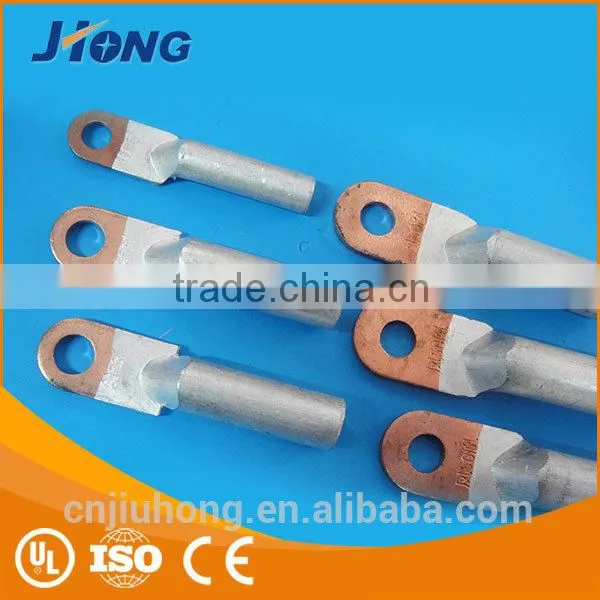

Cable Lugs Types photo-1
US$ 0.055 - 1.5 MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JIONG
Model Number:
JG
Contact Supplier Request Quote Chat Now
Yueqing Jiuhong Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name JIONG
Model Number JG
Type Lug
Product Description



1) Application: Connection of wires in distribution equipment or power supply cable with electronic apparatus.

2) Material: T2 copper tube by dies cast, good conductivity

3) Tinned Surface: corrosion resistance

4) Certificate: ISO9001-2008



cable lugs types





TYPE
Φ
D
d
L
JG-10
6.2
8
5
38
JG-16
8.4
9
6
41
JG-25
8.4
10
7
46
JG-35
8.5
11
8
52
JG-50
8.5
13
10
54
JG-70
10.5
16
12
61
JG-95
10.5
18
14
66
JG-120
12.5
20
15
73
JG-150
12.5
23
17
77
JG-185
14.5
25
19
86
JG-240
16.5
27
21
83
JG-300
16.5
31
24
103
JG-400
18.5
34
26
113
JG-500
20.5
38
30
124
JG-630
22.5
45
35
140
JG-800
22.5
50
40
170



 cable lugs types



TYPE
Φ
D
d
L
DT(G)-10
6.2
8
5
52
DT(G)-16
6.2
9
6
57
DT(G)-25
6.2
10
7
62
DT(G)-35
8.5
11
8
66
DT(G)-50
8.5
13
10
72
DT(G)-70
10.5
16
12
80
DT(G)-95
10.5
18
14
85
DT(G)-120
12.5
20
15
96
DT(G)-150
12.5
23
17
102
DT(G)-185
14.5
25
19
114
DT(G)-240
16.5
27
21
120
DT(G)-300
16.5
31
24
135
DT(G)-400
18.5
34
26
150
DT(G)-500
20.5
38
30
170
DT(G)-630
22.5
45
35
210
DT(G)-800
22.5
50
40
270






Application

These products are suitable for the connection of copper conductors(section 1.5-1000mm2)in power cable with electronic equiqment.They are made of with higher 99.9 percent pute copper tube T2 and coated with tin.Working temperature-55ºC-150ºC.

cable lugs types

Type Φ D d L
SC(JGA)-1.5 Φ4.2,Φ5.2 3.5 1.8 18
SC(JGA)-2.5 Φ4.2,Φ5.2,Φ6.2 4 2.5 19
SC(JGA)-4 Φ5.2,Φ6.2 4.8 3.1 21
SC(JGA)-6 Φ5.2,Φ6.2,Φ8.2 5.5 3.8 24
SC(JGA)-10 Φ6.2,Φ8.2 6.8 4.5 25.5
SC(JGA)-16 Φ6.2,Φ8.2,Φ10.5 7.5 5.5 30.5
SC(JGA)-25 Φ6.2,Φ8.2,Φ10.5 9 7 34
SC(JGA)-35 Φ6.2,Φ8.2,Φ10.5,Φ12.5 10.5 8.2 38
SC(JGA)-50 Φ8.2,Φ10.5,Φ12.5 12.5 9.8 45
SC(JGA)-70 Φ8.2,Φ10.5,Φ12.5 14.5 11.5 50
SC(JGA)-95 Φ10.5,Φ12.5 17.5 13.8 55.5
SC(JGA)-120 Φ12.5,Φ16.5 19.5 15.5 63
SC(JGA)-150 Φ12.5,Φ16.5 21 16.5 71
SC(JGA)-185 Φ16.5 23.5 18.8 78
SC(JGA)-240 Φ16.5 26.5 21 92
SC(JGA)-300 Φ16.5,Φ20.5 30 24 102
SC(JGA)-400 Φ16.5,Φ20.5 34 26.5 113
SC(JGA)-500 Φ16.5,Φ20.5 38 30 123
SC(JGA)-630 Φ20.5 45 35 135
SC(JGA)-800 Φ22.5 50 39 170
SC(JGA)-1000 Φ22.5 56 44 200



Type Φ D d L
SC(JGK)-1.5 Φ4.2,Φ5.2 3.5 1.8 18
SC(JGK)-2.5 Φ4.2,Φ5.2,Φ6.2 4 2.5 19
SC(JGK)-4 Φ5.2,Φ6.2 4.8 3.1 21
SC(JGK)-6 Φ5.2,Φ6.2,Φ8.2 5.5 3.8 24
SC(JGK)-10 Φ6.2,Φ8.2 6.8 4.5 25.5
SC(JGK)-16 Φ6.2,Φ8.2,Φ10.5 7.5 5.5 30.5
SC(JGK)-25 Φ6.2,Φ8.2,Φ10.5 9 7 34
SC(JGK)-35 Φ6.2,Φ8.2,Φ10.5,Φ12.5 10.5 8.2 38
SC(JGK)-50 Φ8.2,Φ10.5,Φ12.5 12.5 9.8 45
SC(JGK)-70 Φ8.2,Φ10.5,Φ12.5 14.5 11.5 50
SC(JGK)-95 Φ10.5,Φ12.5 17.5 13.8 55.5
SC(JGK)-120 Φ12.5,Φ16.5 19.5 15.5 63
SC(JGK)-150 Φ12.5,Φ16.5 21 16.5 71
SC(JGK)-185 Φ16.5 23.5 18.8 78
SC(JGK)-240 Φ16.5 26.5 21 92
SC(JGK)-300 Φ16.5,Φ20.5 30 24 102
SC(JGK)-400 Φ16.5,Φ20.5 34 26.5 113
SC(JGK)-500 Φ16.5,Φ20.5 38 30 123
SC(JGK)-630 Φ20.5 45 35 135
SC(JGK)-800 Φ22.5 50 39 170
SC(JGK)-1000 Φ22.5 56 44 200

cable lugs types


Type Φ D d L
SC(JGY)-1.5 Φ4.2,Φ5.2 3.5 1.8 18
SC(JGY)-2.5 Φ4.2,Φ5.2,Φ6.2 4 2.5 19
SC(JGY)-4 Φ5.2,Φ6.2 4.8 3.1 21
SC(JGY)-6 Φ5.2,Φ6.2,Φ8.2 5.5 3.8 24
SC(JGY)-10 Φ6.2,Φ8.2 6.8 4.5 25.5
SC(JGY)-16 Φ6.2,Φ8.2,Φ10.5 7.5 5.5 30.5
SC(JGY)-25 Φ6.2,Φ8.2,Φ10.5 9 7 34
SC(JGY)-35 Φ6.2,Φ8.2,Φ10.5,Φ12.5 10.5 8.2 38
SC(JGY)-50 Φ8.2,Φ10.5,Φ12.5 12.5 9.8 45
SC(JGY)-70 Φ8.2,Φ10.5,Φ12.5 14.5 11.5 50
SC(JGY)-95 Φ10.5,Φ12.5 17.5 13.8 55.5
SC(JGY)-120 Φ12.5,Φ16.5 19.5 15.5 63
SC(JGY)-150 Φ12.5,Φ16.5 21 16.5 71
SC(JGY)-185 Φ16.5 23.5 18.8 78
SC(JGY)-240 Φ16.5 26.5 21 92
SC(JGY)-300 Φ16.5,Φ20.5 30 24 102
SC(JGY)-400 Φ16.5,Φ20.5 34 26.5 113
SC(JGY)-500 Φ16.5,Φ20.5 38 30 123
SC(JGY)-630 Φ20.5 45 35 135
SC(JGY)-800 Φ22.5 50 39 170
SC(JGY)-1000 Φ22.5 56 44 200



Type Φ D d L
SC(JGB)-1.5 Φ4.2,Φ5.2 3.5 1.8 18
SC(JGB)-2.5 Φ4.2,Φ5.2,Φ6.2 4 2.5 19
SC(JGB)-4 Φ5.2,Φ6.2 4.8 3.1 21
SC(JGB)-6 Φ5.2,Φ6.2,Φ8.2 5.5 3.8 24
SC(JGB)-10 Φ6.2,Φ8.2 6.8 4.5 25.5
SC(JGB)-16 Φ6.2,Φ8.2,Φ10.5 7.5 5.5 30.5
SC(JGB)-25 Φ6.2,Φ8.2,Φ10.5 9 7 34
SC(JGB)-35 Φ6.2,Φ8.2,Φ10.5,Φ12.5 10.5 8.2 38
SC(JGB)-50 Φ8.2,Φ10.5,Φ12.5 12.5 9.8 45
SC(JGB)-70 Φ8.2,Φ10.5,Φ12.5 14.5 11.5 50
SC(JGB)-95 Φ10.5,Φ12.5 17.5 13.8 55.5
SC(JGB)-120 Φ12.5,Φ16.5 19.5 15.5 63
SC(JGB)-150 Φ12.5,Φ16.5 21 16.5 71
SC(JGB)-185 Φ16.5 23.5 18.8 78
SC(JGB)-240 Φ16.5 26.5 21 92
SC(JGB)-300 Φ16.5,Φ20.5 30 24 102
SC(JGB)-400 Φ16.5,Φ20.5 34 26.5 113
SC(JGB)-500 Φ16.5,Φ20.5 38 30 123
SC(JGB)-630 Φ20.5 45 35 135
SC(JGB)-800 Φ22.5 50 39 170
SC(JGB)-100 Φ22.5 56 44 200

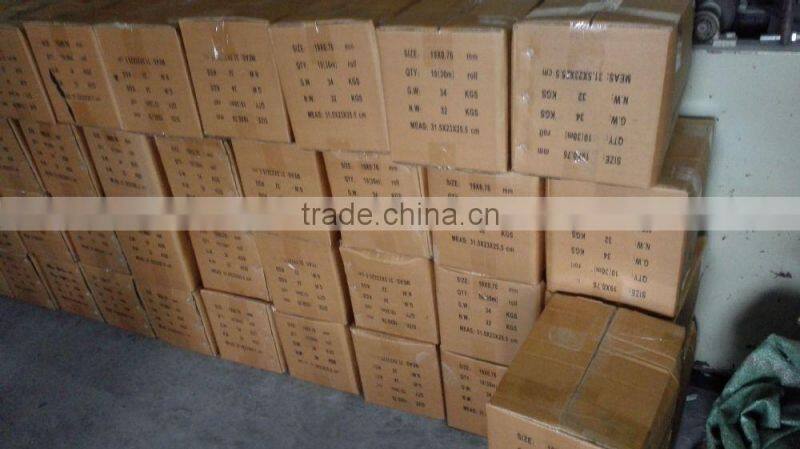

Packaging & Shipping
