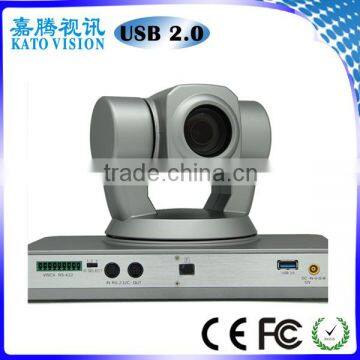

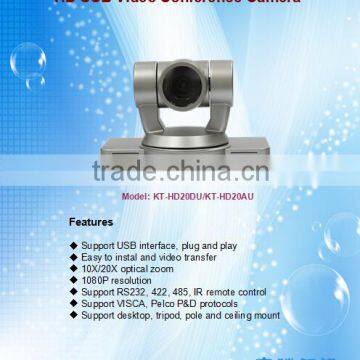

Conference Camera Full HD 1080P30 PTZ Video Conference Camera CHINA 3x Optical Zoom angle
Item No. |

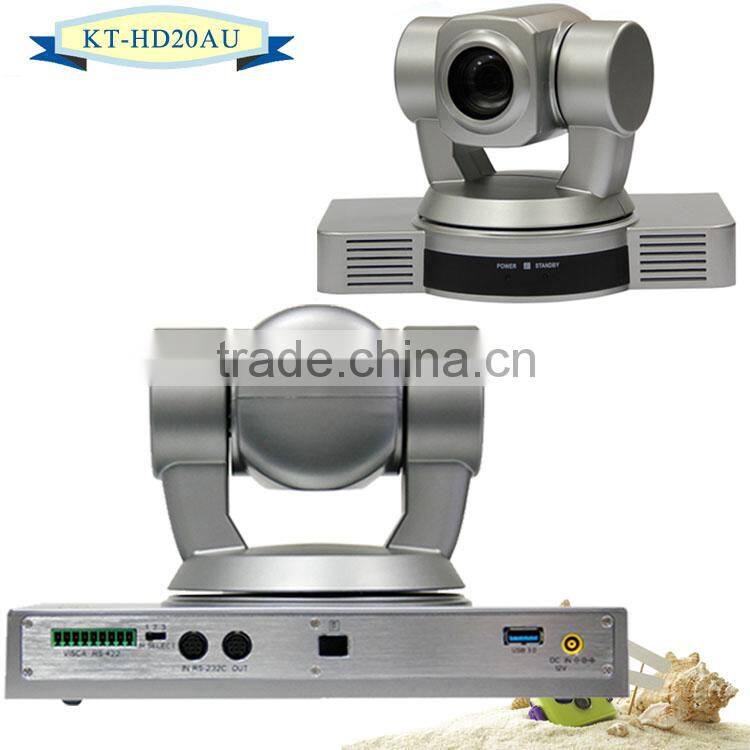

KT-HD20AU |
Image Sensor |
SONY 1/2.8’’Progressive CMOS |
Effective Pixels |
3.5 Megapixels |
Resolution HD |
1080p60/50,720p30/25 |
Signal System |
PAL/NTSC |
Lens |
20X optical zoom, f=4.7mm(wide angle end)~94.0 mm(far end) |
Horizontal View Angle |
58.7°(W)~3.2°(T) |
Focus System |
Auto/Manual |
Minimum Illumination |
0.5 Lux |
Exposure Control |
Auto/Manual |
Shutter Speed |
1/25~1/10,000s |
Gain |
Auto/Manual |
White Balance |
Auto/ Indoor/Outdoor/Manual |
Image Effect |
Full color/black and white/Electronic flip |
S/N Ratio |
≥50db |
Pan |
355°(max. speed:80°/s) |
Tilt |
-30° to +90° (max. speed: 60°/s) |
Preset Position |
9 preset positions by IR remote controller, 255 preset positions by PC or keyboard controller |
Video Output HD |
USB2.0 |
Video Output SD |
No |
Control Protocol |
VISCA, PELCO P/D |
Control Mode |
RS-232C, RS-422/485 |
Power |
12V DC(10.8~13.0V DC) |
Power Consumption |
Max. 30W(DC 12V) |
Operating Temperature |
0~40℃ |
Storage Temperature |
-20-60℃ |
Dimensions |
(L)262×(W)165×(H)157mm |
Weight |
1710g |
Color |
Silver white |
Accessories |

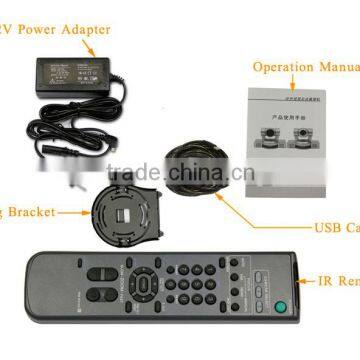

DC 12V power adapter, IR Remote, Operation manual, USB2.0 cable, Ceiling bracket |
We KATA VISION, which is a professional Video Conference Camera R&D manufacturer for 12 years, established in 2004. Main product include SD/HD/USB Video Conference Camera, Capture Card, Microphone and any Accessories etc. All product passed the CE, FCC, CCC, UL, ROHS Certificates.
KATO VISION CO., LIMITED
Skype: sales07kato
TradeManager: cn1001247230
Whatsapp: +86 18664357238
MOB: +86 -18928471586
Website: /
Address: 4/F, Block B, Dexinchang Industrial Park, Qingxiang Rd., Longhua district, Shenzhen, China
