CMP End Style Union
A.Specification of thread: G, Metric and PG

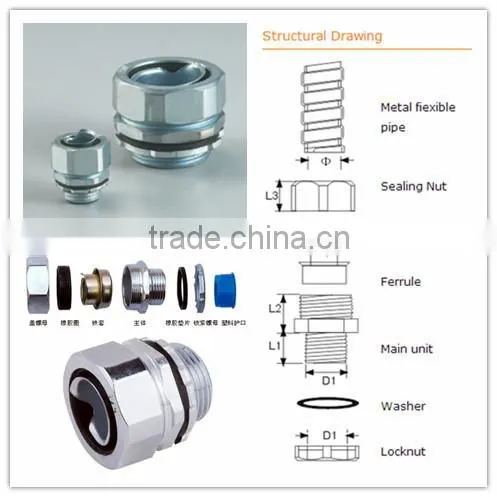

B. Product material: Parts A, C and F are made of high-quality thickened zinc alloy, B, E made of Nitrile butadiene rubber and D is made of iron sheet.
C.Color: Metal color (White)
D.Temperature: -40ºC ~ +100ºC, instantaneously can be +120ºC Protection
E. Classification: IP65
F.Property:
1.thickened zinc alloy or chromium plated; beautiful outlook, compact structure and high strength
2.Flexible pipe sleeve design and flexible pipe buckle design making assembly easy and time-saving, promising strong pull resistance.
3.Water resistant, dust resistant, inactive with salts, acids, alkalis, alcohols, oils and greases as well as general dissolvent.
4.Besides the following specifications, the size and thread standard can be varied at your discretion as per requirements.
| Suitable Metal flexible pipe | Spiral tooth standard | Tdread O.D | Tdread Length | Joint Length | |||
| Metric | G system | Metric | G system | (PG) | D1(mm) | L1(mm) | L2+L3(mm) |
| Φ6 | 3/16" | M14 × 1.5 | G1/4" | PG7 | 13.2 | 8 | 16 |
| Φ8 | 1/4" | M16 × 1.5 | G3/8" | PG9 | 13.2 | 8 | 16 |
| Φ10 | 5/16" | M16 × 1.5 | G3/8" | PG9 | 16.5 | 8 | 17 |
| Φ12(13) | 3/8" | M20 × 1.5 | G3/8" | PG11/PG13.5 | 16.5 | 8 | 18 |
| Φ15(16) | 1/2" | M20×1.5/M24×1.5 | G1/2" | PG13.5/PG16 | 21.3 | 11 | 23 |
| Φ20(19) | 3/4" | M27×2.0/M30×2.0 | G3/4" | PG21 | 26.6 | 14 | 22 |
| Φ25 | 1" | M33×2.0/M36×2.0 | G1" | PG29 | 33.4 | 15 | 28 |
| Φ32 | 1-1/4" | M42×2.0/M48×2.0 | G1-1/4" | PG29 | 42.1 | 15 | 30 |
| Φ38(40) | 1-1/2" | M48×2.0/M60×2.0 | G1-1/2" | PG36/PG42 | 47.8 | 16 | 32 |
| Φ51(50) | 2" | M60×2.0/M70×2.0 | G2" | PG48 | 59.6 | 18 | 34 |
| Φ64(70) | 2-1/2" | M76×2.0 | G2-1/2" | 75.1 | 22 | 38 | |
| Φ75(80) | 3" | M88×2.0 | G3" | 87.8 | 22 | 46 | |
| Φ100 | 4" | M114×2.0 | G4" | 113 | 24 | 50 | |
| Φ125 | 5" | M140×2.0 | G5" | ||||
| Φ150 | 6" | M164×2.0 | G6" | ||||
Specification of thread: G
Product material: Parts A, C, F are made of high quality thick zinc alloy. D is made of metal casting.
Color : Metal color (silvery white)
Working temperature: -40℃ ~ +100℃, instantaneously can sustain as high as +120℃
Property:

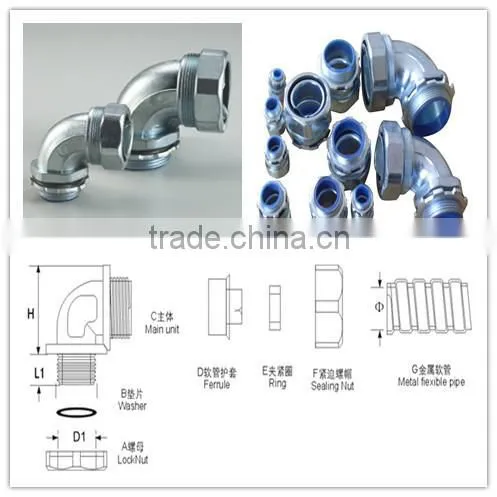

1 .After connection, it is 90 degree with the housing. Thickened zinc alloy is used, presenting beautiful outlook, compact structure and high strength.
2. Besides the following specifications, the size and thread standard can be varied at your discretion as per requirements.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

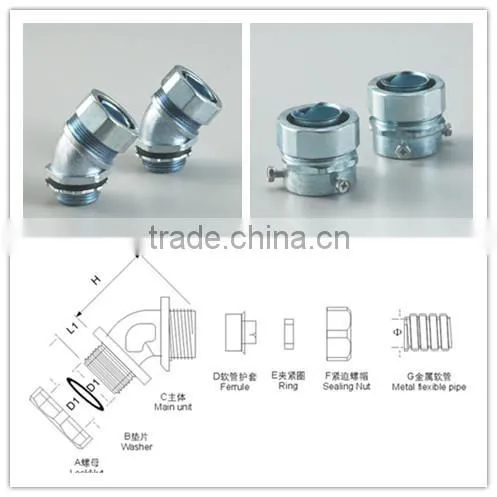

45-Degree Angle Elbow Union
Specification of thread: G
Product material: Parts A, C, F are made of high quality thick zinc alloy. D is made of metal casting.
Color : Metal color (silvery white)
Working temperature: -40℃ ~ +100℃, instantaneously can sustain as high as +120℃
Property:
1 .After connection, it is 45 degree with the housing. Thickened zinc alloy is used, presenting beautiful outlook, compact structure and high strength.
2. Besides the following specifications, the size and thread standard can be varied at your discretion as per requirements.
| Suitable Metal flexible pipe | Thread standard | Thread O.D | Thread Length | Joint Length | |
| Metric | G system | G system | D1 | L1 | H |
| 12 (13) | 3/8" | G3/8" | 16.5 | 8 | 50 |
| 15 (16) | 1/2" | G1/2" | 21.3 | 11 | 54 |
| 20 (19) | 3/4" | G3/4" | 26.6 | 14 | 70 |
| 25 | 1" | G1" | 33.4 | 15 | 80 |
| 32 | 1-1/4" | G1-1/4" | 42.1 | 15 | 90 |
| 38 (40) | 1-1/2" | G1-1/2" | 47.8 | 16 | 110 |
| 51 (50) | 2" | G2" | 59.6 | 18 | 130 |
| 64 (70) | 2-1/2" | G2-1/2" | 75.1 | 22 | 190 |
| 75 (80) | 3" | G3" | 87.8 | 22 | 220 |
| 100 | 4" | G4" | 113 | 24 | 250 |
Temperature: -40℃ ~ +100℃, instantaneously can be +120℃ Protection
Classification: IP65
Property:
1.thickened zinc alloy or chromium plated; beautiful outlook, compact structure and high strength 2.Flexible pipe sleeve design and flexible pipe buckle design making assembly easy and time-saving, promising strong pull resistance.
3.Water resistant, dust resistant, inactive with salts, acids, alkalis, alcohols, oils and greases as well as general dissolvent.
4.Besides the following specifications, the size and thread standard can be varied at your discretion as per requirements.
| Suitable Metal flexible pipe | Threaded thick steel pipe (water, gas, steam pipe ) |
Thin steel pipe (electric wire pipe) |
|||||
| Metric | G system | Nominal | British system | Outer diameter × wall tdickness(mm) |
Nominal | British system | Outer diameter × wall tdickness(mm) |
| Φ10 | 5/16" | #10 | 5/16" | #12 | 1/2" | 12.76 ×1.60 | |
| Φ12(13) | 3/8" | #12 | 3/8" | 17.00× 2.25 | #15 | 5/8" | 15.87 ×1.60 |
| Φ15(16) | 1/2" | #15 | 1/2" | 21.25 × 2.75 | #20 | 3/4" | 19.05 ×1.80 |
| Φ20(19) | 3/4" | #20 | 3/4" | 26.75× 2.75 | #25 | 1" | 25.40 ×1.80 |
| Φ25 | 1" | #25 | 1" | 33.50× 3.25 | #32 | 1-1/4" | 31.75×1.80 |
| Φ32 | 1-1/4" | #32 | 1-1/4" | 42.25 ×3.25 | #40 | 1-1/2" | 38.10×1.80 |
| Φ38(40) | 1-1/2" | #40 | 1-1/2" | 48.00 ×3.50 | #50 | 2" | 50.80×2.00 |
| Φ51(50) | 2" | #50 | 2" | 60.00× 3.50 | #70 | 2-1/2" | 63.50×2.50 |
| Φ64(70) | 2-1/2" | #70 | 2-1/2" | 75.50×3.75 | #80 | 3" | 76.20× 3.20 |
| Φ75(80) | 3" | #80 | 3" | 88.50×4.00 | |||
| Φ100 | 4" | #100 | 4" | 114×4.00 | |||
| Φ125 | 5" | #125 | 5" | 140×4.50 | |||
| Φ150 | 6" | #150 | 6" | 165.00 ×4.50 | |||
