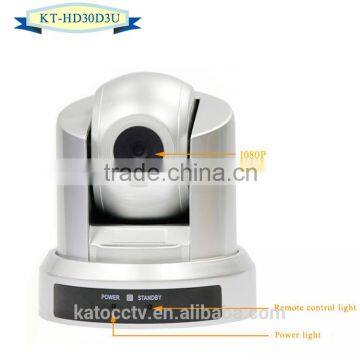

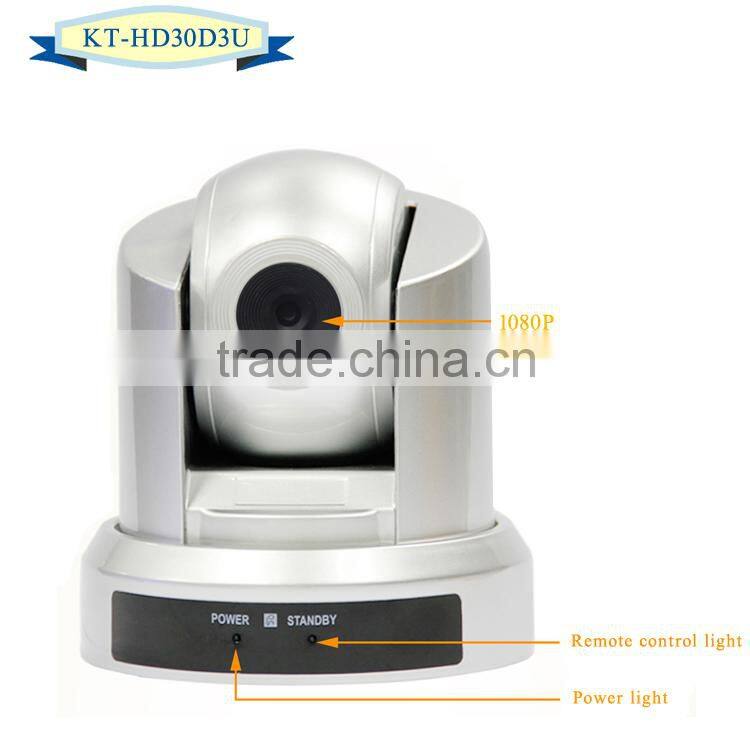

PTZ Pant tilt zoom Remote Control 1080p video conference camera hd av supplier
Features
1. Integrated and delicate design;
2. 1/3" CMOS, 2.07 Megapixels;
3. Using precision step motor driver, Flexible operation& control, positioning accuracy (± 0.1 °);
4.Unique 355 degree horizontal unlimited consecutive pan, tilt range 120 degrees;
5. Maximum horizontal rotation speed of 80 ° / sec, vertical rotation speed of 60 ° / sec;
6. 9 preset positions by IR remote controller, 255 preset positions by PC or keyboard controller, memory auto store when power off;
7. VISCA and PELCO P / D protocol optional;
8. Enter and exit the menu via IR remote controller “M-OPEN” button directly;
9. 254 addresses can be set (can be controlled 7 cameras via VISCA);

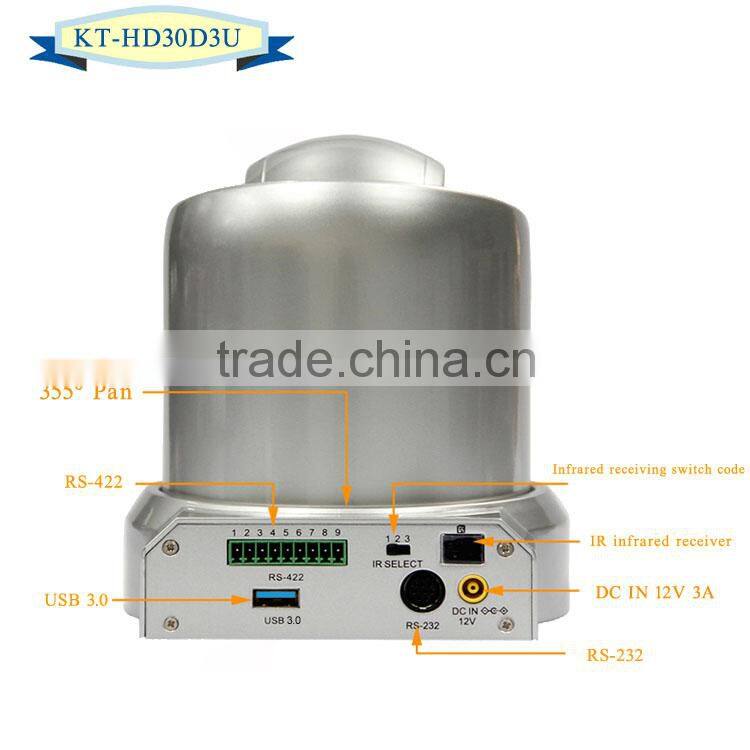

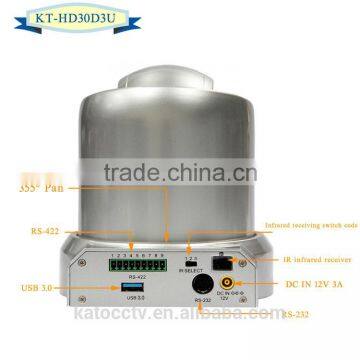

10. Multi control methods available, support IR remote control, RS-232C / 422 serial controls;
11. Multi-installation methods: wall mounting, desktop or ceiling mounting;
12. Information feedback automatically prompts;
13. Preset automatically correct;
14. Full compatibility with SONY terminal.
PTZ Pant tilt zoom Remote Control 1080p video conference camera hd av supplier
Specification
Item No. |
KT-HD30D3U |
Image Sensor |
1/3’’ CMOS |
Effective Pixels |
2.07 Megapixels |
Resolution HD |
1080p20/15, 720p30/25 |
Signal System |
PAL/NTSC |
Lens |
10X optical zoom, f=4.4mm(wide angle end)~44.0 mm(far end) |
Horizontal View Angle |
50.6°(W)~5.5°(T) |
Focus System |
Auto/Manual |
Minimum Illumination |
0.1Lux |
Shutter Speed |
1/30~1/10,000s |
Gain |
Auto/Manual |
White Balance |
Auto/ Indoor/Outdoor/Manual |
Image Effect |
Full color/black and white/Electronic flip |
S/N Ratio |
≥50db |
Pan |
355°(max. speed:80°/s) |
Tilt |
-30° to +90° (max. speed: 60°/s) |
Preset Position |
9 preset positions by IR Remote, 255 preset positions by Keyboard |
Video Output HD |
USB3.0 |
Video Output SD |
No |
Control Protocol |
SONY VISCA, PELCO P/D |
Control Mode |
RS-232C, RS-422/485 |
Power |
12V DC(10.8~13.0V DC) |
Power Consumption |
Max. 30W(DC 12V) |
Operating Temperature |
0~40℃ |
Storage Temperature |
-10-60℃ |
Dimensions |
(L)135×(W)130×(H)144mm |
Weight |
768g |
Color |
Silver White |

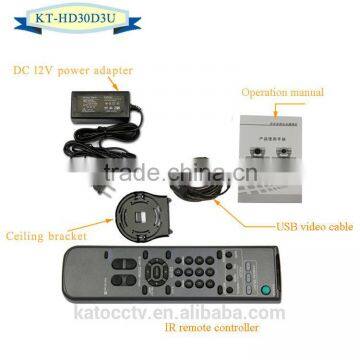

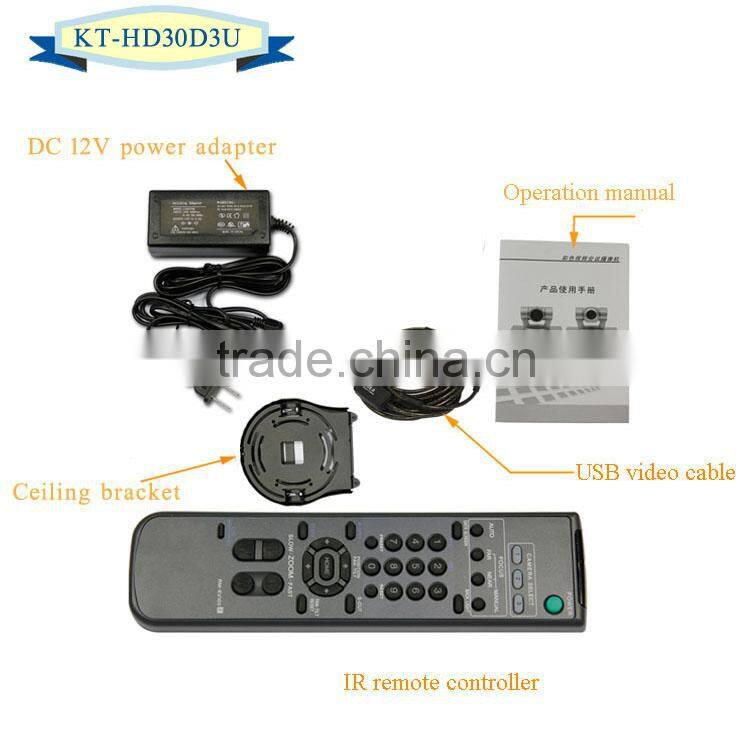

Accessories |
DC 12V power adapter, IR Remote, Operation manual, USB3.0, Ceiling bracket |
