Best Price Video Conference Camera Teleconferencing

FOB Price

US$ 210 - 310 / Set

1 Set(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Audio Conference System, Network Conference System, Video Conference System	Function	Voting
Simultaneous Interpretation	Yes	Place of Origin	Guangdong, China
Brand Name	KATO/OEM	Model Number	KT-D827

Product Description

Best price video conference camera teleconferencing

Features

- Integration design, refined aesthetic shape

- Adopting precision & constant speed step motor drive, outstanding agile, precise location(±0.1°)

- Wide Range Pan/Tilt: 360 degrees Pan / 210 degrees Tilt

The Maximum horizontal rotation speed: 80°/S; The Maximum vertical rotation speed: 60°/S

- 9 preset positions by remote commander, 255 preset positions by PC or keyboard controller, memory auto store when power off
- VISCA and Pelco P/D protocol can be selected by code switch
Enter in and out menu by remote commander directly

- 255 address settable (7 camera setting synchronously Via VISCA)
- Multiple control: support IR remote control, RS-232C/422 control

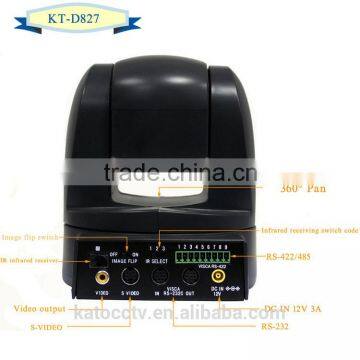

- Video output: CVBS &S-VIDEO

- Desktop and ceiling mount at the same time

- Information Feedback automatically

- Preset positions autocorrect

- Perfect compatible with SONY Terminals

Best price video conference camera teleconferencing

Specification

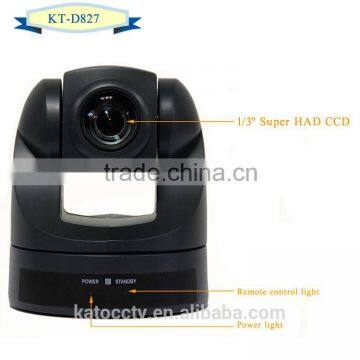

Item No.	KT-D827
Image Sensor	1/3" Super HAD CCD
Effective Pixels	752 (H) x 582 (V)
Signal System	PAL/NTSC
Horizontal Resolution	600TVL
Synchronization	INT
Lens	18* Optical, F1.6(W)~3.0(T) f=5.0~90mm
Angle of View (H)	52.5°(wide-angle)~3.0°(tel-end)
Min. object distance	250mm(wide-angle)~1000mm(far-end)
Minimum Illumination	Regular: 1Lux; night: 0.1Lux
Auto exposure	Auto shutter, aperture or manual
Shutter Speed	1/50~1/10000S,16 shelves
Gain	Auto/Manual (-3 ~ +28dB, 2 dB step)
White Balance	Auto/ATW/Indoor/Outdoor/One push WB/Manual WB
S/N Ratio	More than 48dB
Pan/Tilt	Pan: +/- 360° (max. speed: 80°/s) Tilt: -30° to + 90° (max. speed: 60°/s)
Preset Position	9
Picture effect	Freeze, Flip, Mirror
Analog Output	VIDEO and S-VIDEO VBS:1.0VP-P
Camera Control	RS-232C(8-pin DIN)/(VISCA)/RS-422(9-pin) (VISCA)
Baud rate	9600bps
Power	10.8V~13.2V
Operating Temperature	0℃~50℃
Storage Temperature	-20℃~+60℃
Consumption	12W
Dimensions	(L)153(W)134(H)153mm
Weight	1200g
Color	black
