PTZ 720p Video Conference Camera Voice Tracking Camera

FOB Price

US$ 270 - 370 / Set

1 Set(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Audio Conference System, Network Conference System, Video Conference System	Function	Voting
Simultaneous Interpretation	Yes	Place of Origin	Guangdong, China
Brand Name	KATO/OEM	Model Number	KT-D848

Product Description

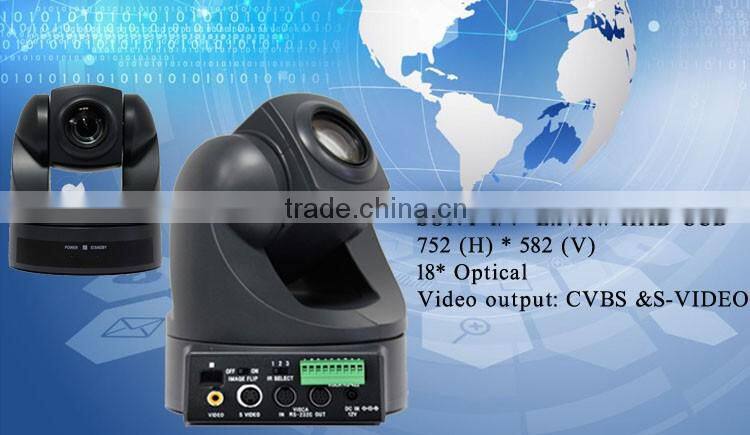

PTZ 720p video conference camera voice tracking camera

Features

- Integration design, refined aesthetic shape

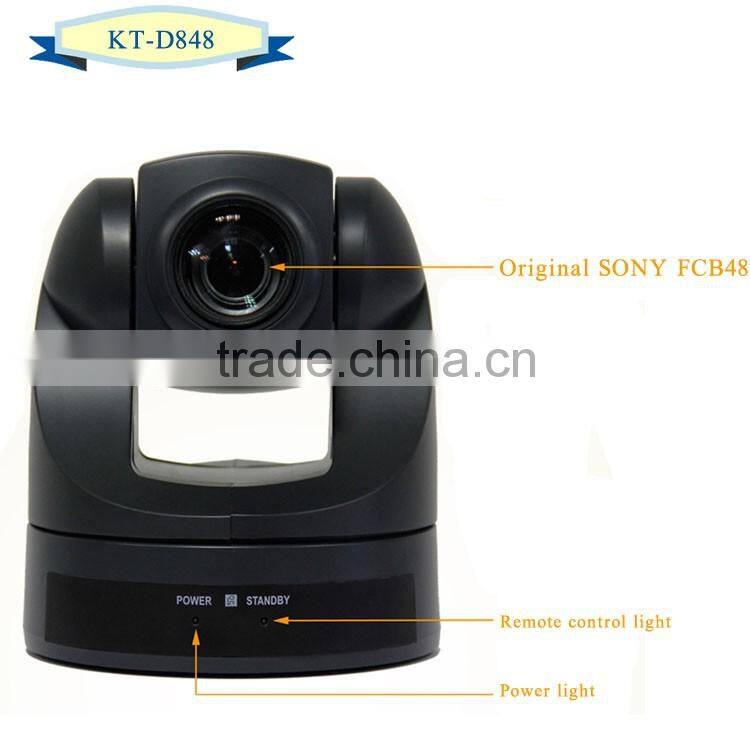

- Build in SONY 550TVL CCD module

- 216X zoom (18 optical*12 digital)

- Precision & constant speed step motor drive, outstanding agile, precise location(±0.1°)

- 360 degrees Pan, 210 degrees Tilt

- With OSD, VISCA, Pelco P&D protocols, IR Control Speed, Camera Parameters settable.

- 9 preset positions by remote commander, 255 preset positions by PC or keyboard controller, memory auto store when power off

- Enter in and out menu by remote commander directly

- 255 address settable (7 camera setting synchronously via VISCA) Multiple control: support IR remote control, RS-232C/422 control

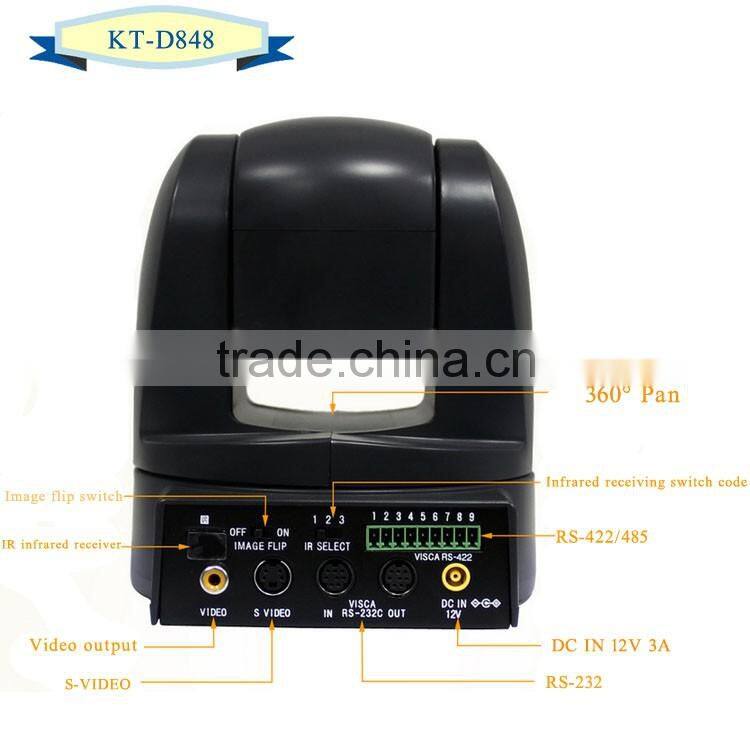

- Video output: CVBS &S-VIDEO

- Desktop and ceiling mount

- Information Feedback automatically

- Preset positions autocorrect

- Perfect compatible with SONY Terminals

PTZ 720p video conference camera voice tracking camera

Specification

Item No.	KT-D848
Image Sensor	SONY 1/4 Exwave HAD CCD
Effective Pixel	752 (H) * 582 (V)
Signal System	NTSC/PAL
Horizontal Resolution	550 TVL
Synchronization	Internal & External
Lens	18* Optical, F=4.1mm(tele)~73.8mm(wide), F1.4~F3.0
Angle of View (H)	48°(wide-angle)~2.8°(far-end)
Min. object distance	290mm(wide-angle)~800mm(tel-end)
Minimum Illumination	0.4lux (F1.4, 50IRE)
Auto exposure	Auto/Manual/AE priority/Exposure compensation/Backlight compensation
Shutter Speed	1/3~1/10000S,22 shelves
Gain	Auto/Manual (-3 ~ +28dB, 16 steps)
White Balance	Auto/Indoor/Outdoor/One push WB/Manual WB
S/N Ratio	more than 50dB
Pan/Tilt	Pan: +/- 360° (max. speed: 80°/s) Tilt: -30° to + 90° (max. speed: 60°/s)
Preset Position	9 by remote commander, 256 by keyboard controller
Picture effect	E-Flip, Invert, Mirror
Analog Output	VIDEO and S-VIDEO VBS 1.0VP-P
Camera Control	RS-232C(8-pin DIN)/(VISCA)/RS-422(9-pin) (VISCA)
Baud rate	9600bps, 38400bps
Power	10.8V~13.2V
Operating Temperature	0℃~50℃
Storage Temperature	-20℃~+60℃
Consumption	12W
Dimensions	(L)153(W)134(H)153mm
Weight	1200g
Color	black
