3D CCTV Keyboard Controller,PTZ Controller Educational Supplies

Specifications

-Smart 3D USB PTZ Keyboard Controller Educational Supplies
-Vandalproof,USB,RS232,485 Bus
-LCD,Joystick,Pelco P&D,CCTV,DVR

This is the type of innovation and vision that made KATO an earlier market leader in video collaboration.

Make no mistake-we are seeing KATO 2.0



Intelligent Universal 6 axis USB PTZ Keyboard Controller



Features of PTZ Keyboard Controller Educational Supplies

- Unique control code learning function to make revise orders freely.



- Each equipment which connect with RS485 bus can set different protocols and Baud rate individually



- The maximum of RS485 control bus can control 255 adress,128 equipment in parallel at the same time.



- Great Anti-lighting design and Anti-interference ability. The standard transmission distance reaches 1200 meters.



- The cascade port can connect15 vice keyboards at maximum.



- Multiple protocols selectable. Specific standard SONY VISCA protocol 9600bps,19200bps.



- Password protection function.



- Keyboard with infinitely variable speed



- 7 video conference cameras cascade control





Specification of PTZ Keyboard Controller Educational Supplies

Name	Universal Control Keyboard
Model	KT-K410C
LCD display	Chinese/English
Monitor Control	1-99
Camera Control	1-1024
Joystick	Three Dimensional Left/Right; Up/Down; Zoom
Connection	Seven D70P cascade control
Lens	Aperture: On/Off; Focus: Far/Near; Zoom: Wide angle/Tele
Camera	Defrost: On/Off; Wiper: On/Off; Auxiliary switch: On/Off;
PTZ Control	Up/Down/Left/Right; Scan limit set; Auto Scan; Pattern Scan, Auto Cruise.
Preset point control	Keep/Change preset point; Parameter set;
Alarm Operation	Arm/Disarm; Status Look Up/Display; Alarm record
DVR control	Control number:99; Control Protocol: up to customers’ demand
Control Protocol	SONY VISCA
Communication Interface:	RS422 and RS485; Rate: 9600bps,19200bps
Condition	Temp: -10~+50,Humidity:≤90%
Power	DC12V
Dimension	380mm(W)*48mm(H)*60mm(D)

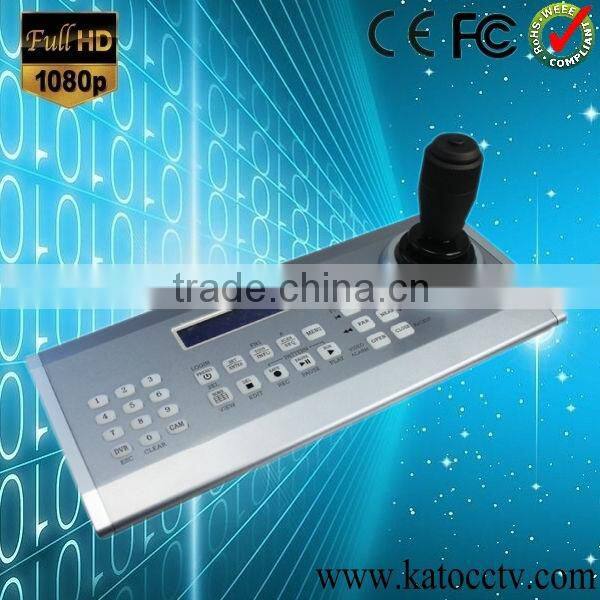

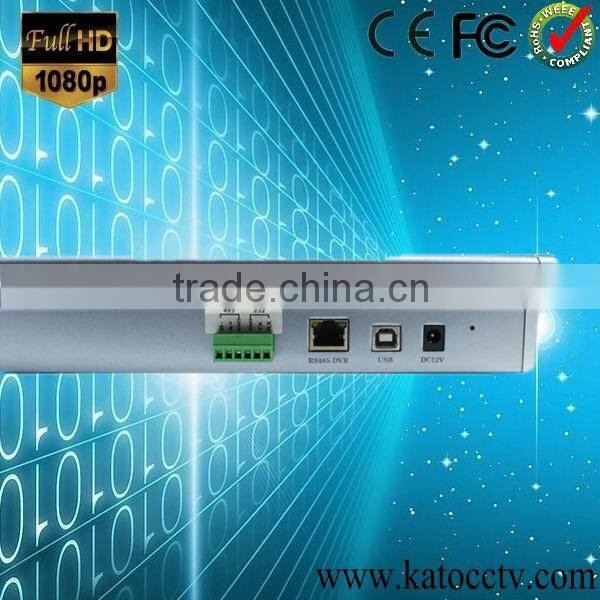

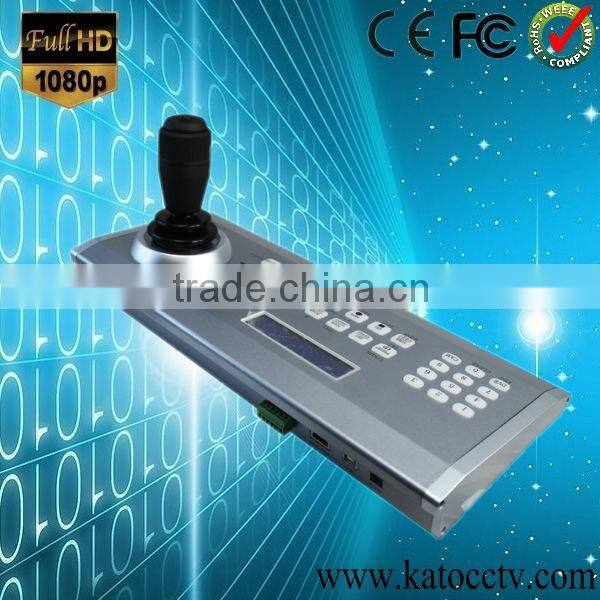

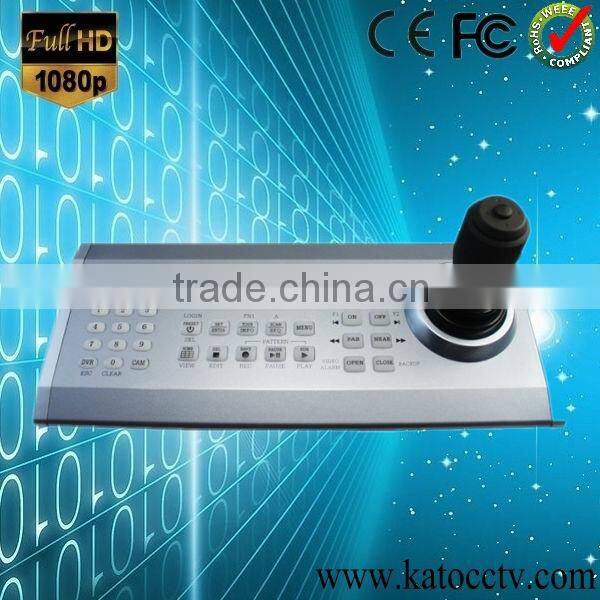

Photos of PTZ Keyboard Controller Educational Supplies
