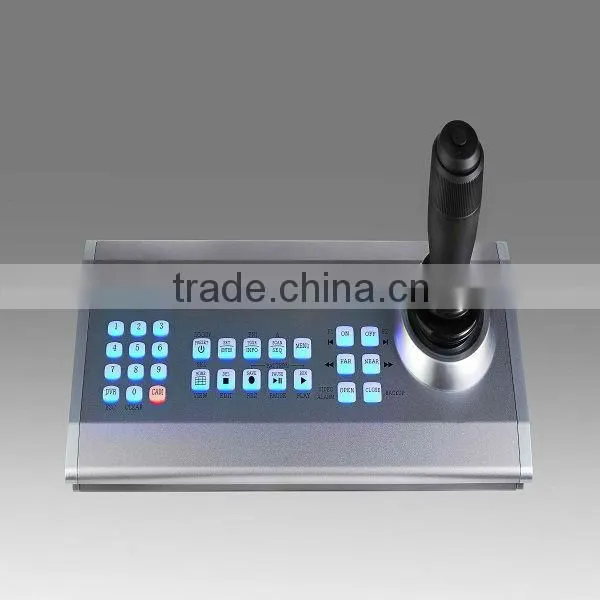

Intelligent Universal 6 Axis USB PTZ Keyboard Controller Auto Tracking Video Conference Camera

Shenzhen KATO Vision Co., Limited
Intelligent Universal 6 Axis USB PTZ Keyboard Controller Auto Tracking Video Conference Camera thumbnail-1
Intelligent Universal 6 Axis USB PTZ Keyboard Controller Auto Tracking Video Conference Camera photo-1
US$ 100 - 209 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Audio Conference System, Network Conference System, Video Conference System
Function:
Translation
Simultaneous Interpretation:
Yes
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Audio Conference System, Network Conference System, Video Conference System
Function Translation
Simultaneous Interpretation Yes
Place of Origin Guangdong, China
Brand Name KATO/OEM
Model Number KT-K410C

Specifications

1.Universal 6 axis USB PTZ Keyboard Controller
2.RS422 and RS485 Communication Interface
3.PTZ Control
4.SONY VISCA Protocol

CCTV PTZ Keyboard Controller Security System Keyboard Controller SONY VISCA Keyboard Controller is metal structure, Vandal Proof, with USB, RS232, 422, 485 Bus, Camera protocols including SONY VISCA, Polycom, Cisco, Canon, Pelco P&D, AD, Samsung, Panasonic, Dahua, etc. DVR protocols including Appro, HighEasy, Nadatel, Dahua, Hikvision. Dali, Hanbang, etc !  Best choce for SD/HD PTZ video conference camera system, DVR, high speed dome camera, constant-speed dome camera, etc. other surveillance system control, Much protocols, baud rate Settable, the best choice of remote control unit

 Remote Control 6 Axis VISCA CCTV PTZ keyboard controllerIntelligent Universal 6 axis USB PTZ Keyboard Controller auto tracking video conference camera

Features:



² Unique control code learning function to make revise orders freely.

² Each equipment which connect with RS485 bus can set different protocols and Baud rate individually

² The maximum of RS485 control bus can control 255 adress,128 equipment in parallel at the same time.

² Great Anti-lighting design and Anti-interference ability. The standard transmission distance up to 1200 meters.

² The cascade port can connect15 vice keyboards at maximum.

² Multiple protocols selectable. Specific standard SONY VISCA protocol 9600bps,19200bps.

² Password protection function.

² Keyboard with infinitely variable speed

² 7 video conference cameras cascade control



Remote Control 6 Axis VISCA CCTV keyboard controller Specification: Intelligent Universal 6 axis USB PTZ Keyboard Controller auto tracking video conference camera

Name

universal smart 3D remote control keyboard

Model

KT-K410C

LCD display

Chinese/English

Monitor Control

1-99

Camera Control

1-1024

Joystick

Three Dimensional Left/Right; Up/Down; Zoom

Connection:

Seven D70P cascade control

Lens

Aperture: On/Off; Focus: Far/Near; Zoom: Wide angle/Tele

Camera

Defrost: On/Off; Wiper: On/Off; Auxiliary switch: On/Off;

PTZ Control

Up/Down/Left/Right; Scan limit set; Auto Scan; Pattern Scan, Auto Cruise.

Preset point control

Keep/Change preset point; Parameter set;

Alarm Operation

Arm/Disarm; Status Look Up/Display; Alarm record

DVR control

Control number:99; Control Protocol: up to customers’ demand

Control Protocol

SONY VISCA

Communication Interface:

RS422 and RS485; Rate: 9600bps,19200bps

Condition

Temp: -10~+50,Humidity:≤90%

Power

DC12V

Dimension

380mm(W)×48mm(H)×60mm(D)

Intelligent Universal 6 axis USB PTZ Keyboard Controller auto tracking video conference cameraIntelligent Universal 6 axis USB PTZ Keyboard Controller auto tracking video conference cameraIntelligent Universal 6 axis USB PTZ Keyboard Controller auto tracking video conference cameraIntelligent Universal 6 axis USB PTZ Keyboard Controller auto tracking video conference camera
