speed dome ptz camera keyboard controller

Specifications

-Universal 6 axis USB speed dome ptz keyboard controller
-RS422 and RS485 Communication Interface
-PTZ Control
-SONY VISCA

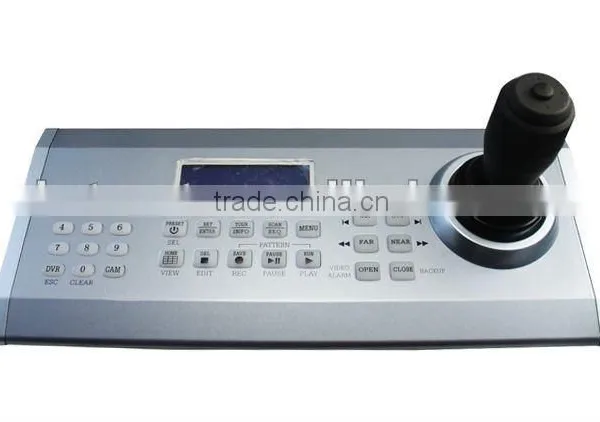

Intelligent Universal 6 axis USB PTZ Keyboard Controller



(HOT)



Intelligent 6 axis Universal USB PTZ Keyboard Controller with LCD, Joystick, etc. much protocols and baud rate selectable, outstanding function with low price. Mental structure, vandalproof, Best choice for SD/HD PTZ Video Conference Camera, DVR, High Speed Dome Cameras, Constant-speed Dome Cameras and other CCTV Surveillance System Control



Features:



- Unique control code learning function to make revise orders freely.

- Each equipment which connect with RS485 bus can set different protocols and Baud rate individually

- The maximum of RS485 control bus can control 255 adress,128 equipment in parallel at the same time.

- Great Anti-lighting design and Anti-interference ability. The standard transmission distance up to 1200 meters.

- The cascade port can connect15 vice keyboards at maximum.

- Multiple protocols selectable. Specific standard SONY VISCA protocol 9600bps,19200bps.

- Password protection function.

- Keyboard with infinitely variable speed

- 7 video conference cameras cascade control



Specification:



Name	Universal Control Keyboard
Model	KT-K410C
LCD display	Chinese/English
Monitor Control	1-99
Camera Control	1-1024
Joystick	Three Dimensional Left/Right; Up/Down; Zoom
Connection:	Seven D70P cascade control
Lens	Aperture: On/Off; Focus: Far/Near; Zoom: Wide angle/Tele
Camera	Defrost: On/Off; Wiper: On/Off; Auxiliary switch: On/Off;
PTZ Control	Up/Down/Left/Right; Scan limit set; Auto Scan; Pattern Scan, Auto Cruise.
Preset point control	Keep/Change preset point; Parameter set;
Alarm Operation	Arm/Disarm; Status Look Up/Display; Alarm record
DVR control	Control number:99; Control Protocol: up to customers’ demand
Control Protocol	SONY VISCA
Communication Interface:	RS422 and RS485; Rate: 9600bps,19200bps
Condition	Temp: -10°C~+50°C,Humidity:≤90%
Power	DC12V
Dimension	380mm(W)×48mm(H)×60mm(D)
