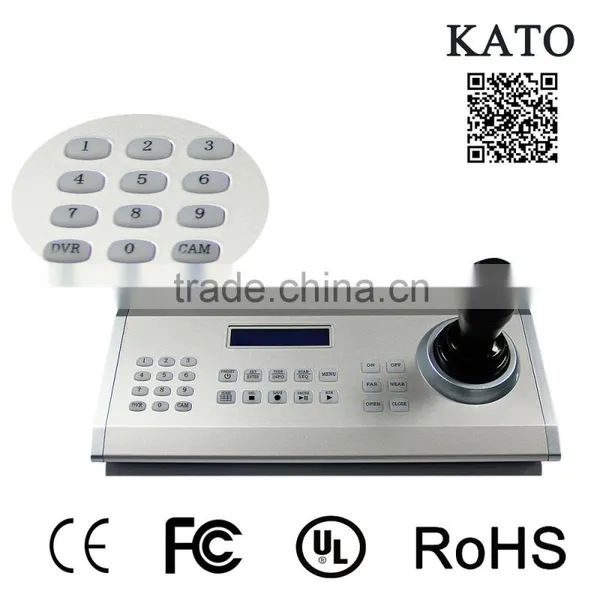

Teleconference camera controller Joystick Keyboard Controller for PTZ Camera remote rs485 keyboard controller

Name

Universal Control Keyboard

Model

KT-K410C

LCD display

Chinese/English

Monitor Control

1-99

Camera Control

1-1024

Joystick

Three Dimensional Left/Right; Up/Down; Zoom

Connection:

Seven D70P cascade control

Lens

Aperture: On/Off; Focus: Far/Near; Zoom: Wide angle/Tele

Camera

Defrost: On/Off; Wiper: On/Off; Auxiliary switch: On/Off;

PTZ Control

Up/Down/Left/Right; Scan limit set; Auto Scan; Pattern Scan, Auto Cruise.

Preset point control

Keep/Change preset point; Parameter set;

Alarm Operation

Arm/Disarm; Status Look Up/Display; Alarm record

DVR control

Control number:99; Control Protocol: up to customers’ demand

Control Protocol

SONY VISCA

Communication Interface:

RS422 and RS485; Rate: 9600bps,19200bps

Condition

Temp: -10°C~+50°C,Humidity:≤90%

Power

DC12V

Dimension

380mm(W)×48mm(H)×60mm(D)
