Intelligent 6 axis Universal USB PTZ Keyboard Controller with LCD, Joystick, etc. much protocols and baud rate selectable, outstanding function with low price. Mental structure, vandalproof, Best choice for SD/HD PTZ Video Conference Camera, DVR, High Speed Dome Cameras, Constant-speed Dome Cameras and other CCTV Surveillance System Control.
Features:
^Unique control code learning function to make revise orders freely.
^ Each equipment which connect with RS485 bus can set different protocols and Baud rate individually
^ The maximum of RS485 control bus can control 255 address,128 equipment in parallel at the same time.
^ Great Anti-lighting design and Anti-interference ability. The standard transmission distance up to 1200 meters.
^ The cascade port can connect15 vice keyboards at maximum.
^ Multiple protocols selectable. Specific standard SONY VISCA protocol 9600bps,19200bps.
^ Password protection function.
^ Keyboard with infinitely variable speed
^ 7 video conference cameras cascade control

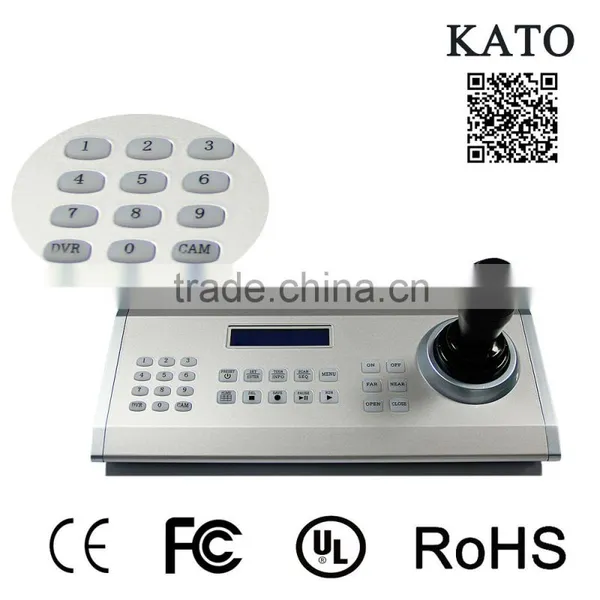

KT-K410C Universal Control Keyboard
Specification:
Name | Universal Control Keyboard |
Model | KT-K410C |
LCD display | Chinese/English |
Monitor Control | 1-99 |
Camera Control | 1-1024 |
Joystick | Three Dimensional Left/Right; Up/Down; Zoom |
Connection: | Seven D70P cascade control |
Lens | Aperture: On/Off; Focus: Far/Near; Zoom: Wide angle/Tele |
Camera | Defrost: On/Off; Wiper: On/Off; Auxiliary switch: On/Off; |
PTZ Control | Up/Down/Left/Right; Scan limit set; Auto Scan; Pattern Scan, Auto Cruise. |
Preset point control | Keep/Change preset point; Parameter set; |
Alarm Operation | Arm/Disarm; Status Look Up/Display; Alarm record |
DVR control | Control number:99; Control Protocol: up to customers’ demand |
Control Protocol | SONY VISCA |
Communication Interface: | RS422 and RS485; Rate: 9600bps,19200bps |
Condition | Temp: -10°C~+50°C,Humidity:≤90% |
Power | DC12V |
Dimension | 380mm(W)×48mm(H)×60mm(D) |
