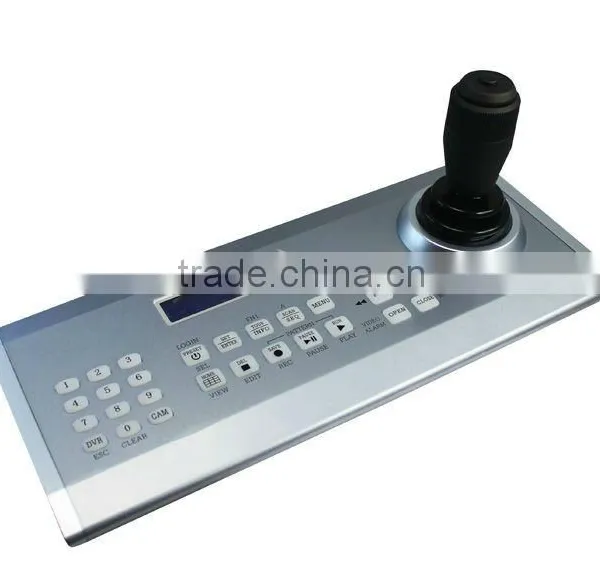

NVR Control Keyboard 4 Axis Joystick work with IP Camera NVR RS485 RJ45 Interface IP PTZ Controller Keyboard control PTZ ZOOM

Name

KT-K410C

Protocol

VISCA, PELCOP/D, Polycom, Cisco, Canon, Panisonic

Baud Rate

1200,2400,4800,9600,19200

Joystick

Triaxial + a button, light coding, accuracy of ±80 level

LCD display screen

English character version, blue backlight, 20 characters, 2lines

Button

28 keys, Double color backlight, 10 level of brightness

Quantity of controllable cameras

64

Video switching matrix controller

Can control 1 video matrix with 8 inputs and 4 outputs

The

communication dispatcher

16X4=64, can control 16 communication dispatchers, each one divides into 4.

Interface

1*RS485 interface, 2000 meters distance for camera controlling

1*RS232 interface, Support communication dispatcher serial port expansion(max. 64) for camera controlling

1*RJ45(RS485/RS232) for Video communication matrix

1*USB connect to PC host for system controlling.

Power Supply

DC12V/500mA

Color

Silver

Material of the appearance

Aluminium Alloy

Dimension

358(L) * 154(W) * 150(H)

Weight

1.47KG
