Definition DVI/SDI Video Conferencing Camera Support Multi-Protocol Communications Conference System

Item No.

KT-HD30DV

Image Sensor

 1/2.8’’ CMOS

Effective Pixels

2.07 Megapixels

Resolution HD

1080p/30,  1080p/25,  720p/60,  720p/50

Signal System

PAL/NTSC

Lens

10X optical zoom, f=4.4mm(wide angle end)~44.0 mm(far end)

Horizontal View Angle

60.9°(W)~6.43°(T)

Focus System

Auto/Manual

Minimum Illumination

0.1Lux

Shutter Speed

1/30~1/10,000s

Gain

Auto/Manual

White Balance

Auto/ Indoor/Outdoor/Manual

Image Effect

Full color/black and white/Electronic flip

S/N Ratio

≥50db

Pan

355°(max. speed:80°/s)

Tilt

-30° to +90° (max. speed: 60°/s)

Preset Position

9 preset positions by IR Remote, 255 preset positions by Keyboard

Video Output HD

DVI(HDMI, HD-Component), HD-SDI(Optional)

Video Output SD

CVBS(RCA)(optional)

Control Protocol

SONY VISCA, PELCO P/D

Control Mode

RS-232C, RS-422/485

Power

12V  DC(10.8~13.0V DC)

Power Consumption

Max. 30W(DC 12V)

Operating Temperature

0~40℃

Storage Temperature

-10-60℃

Dimensions

(L)135×(W)130×(H)144mm

Weight

768g

Color

Silver White

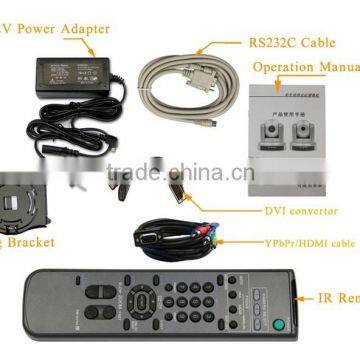

Accessories

DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, DVI Adapter, YPbPr/HDMI cable, Ceiling bracket
