HD 1080P Auto Tracking With Hdmi Interface Camera Polycom Video Conference

FOB Price

US$ 350 - 450 / Set

1 Set(Min. Order)

Port Shenzhen
Payment TermsPayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Audio Conference System, Network Conference System, Video Conference System	Function	Voting
Simultaneous Interpretation	Yes	Place of Origin	Guangdong, China
Brand Name	KATO/OEM	Model Number	KT-HD20D

Product Description

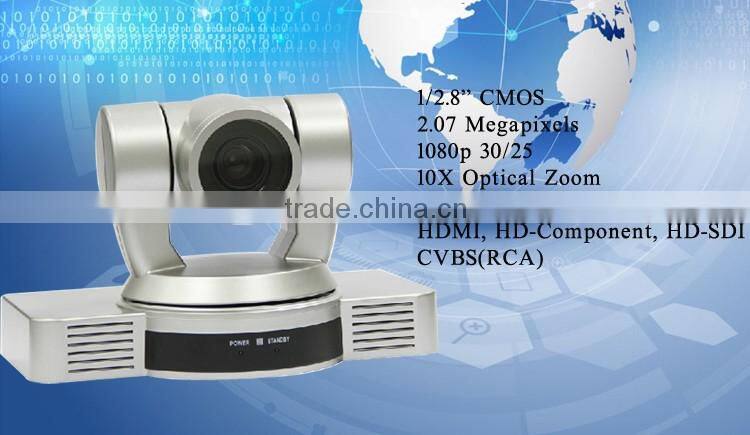

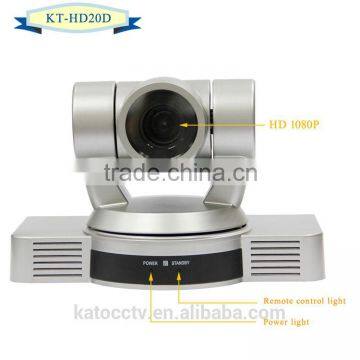

HD 1080P auto tracking with hdmi interface camera polycom video conference

Features:

1. Integrated and delicate design;

2. 1/3" CMOS, 2.07 Megapixels;

3. Using precision step motor driver, Flexible operation& control, positioning accuracy (± 0.1 °);

4.Unique 355 degree horizontal unlimited consecutive pan, tilt range 120 degrees;

5. Maximum horizontal rotation speed of 80 ° / sec, vertical rotation speed of 60 ° / sec;

6. 9 preset positions by IR remote controller, 255 preset positions by PC or keyboard controller, memory auto store when power off;

7. VISCA and PELCO P / D protocol optional;

8. Enter and exit the menu via IR remote controller “M-OPEN” button directly;

9. 254 addresses can be set (can be controlled 7 cameras via VISCA);

10. Multi control methods available, support IR remote control, RS-232C / 422 serial controls;

11. Multi-installation methods: wall mounting, desktop or ceiling mounting;

12. Information feedback automatically prompts;

13. Preset automatically correct;

14. Full compatibility with SONY terminal.

HD 1080P auto tracking with hdmi interface camera polycom video conference

Parameters:

Item No.	KT-HD20D
Image Sensor	1/3’’ CMOS
Effective Pixels	2.07 Megapixels
Resolution HD	1080i60/50, 1080p30/25, 720p60/50
Signal System	PAL/NTSC
Lens	10X optical zoom, f=4.4mm(wide angle end)~44.0 mm(far end)
Horizontal View Angle	50.6°(W)~5.5°(T)
Focus System	Auto/Manual
Minimum Illumination	0.1Lux
Shutter Speed	1/30~1/10,000s
Gain	Auto/Manual
White Balance	Auto/ Indoor/Outdoor/Manual
Image Effect	Full color/black and white/Electronic flip
S/N Ratio	≥50db
Pan	355°(max. speed:80°/s)
Tilt	-30° to +90° (max. speed: 60°/s)
Preset Position	9 preset positions by IR Remote, 255 preset positions by Keyboard

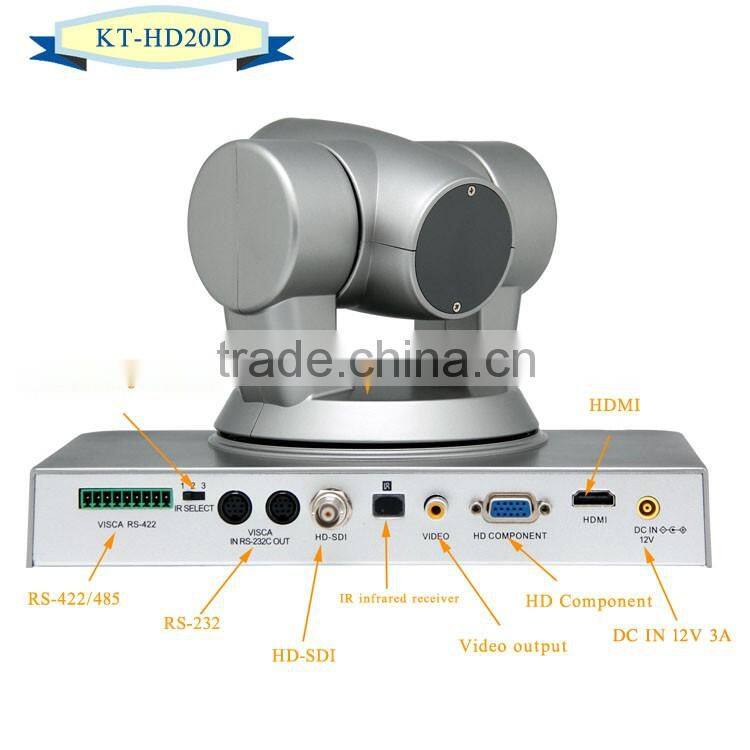

Video Output HD	HDMI, HD-Component, HD-SDI
Video Output SD	CVBS(RCA)
Control Protocol	SONY VISCA, PELCO P/D
Control Mode	RS-232C, RS-422/485
Power	12V DC(10.8~13.0V DC)
Power Consumption	Max. 30W(DC 12V)
Operating Temperature	0~40℃
Storage Temperature	-20-60℃
Dimensions	(L)262×(W)165×(H)157mm
Weight	1710g
Color	Silver White
Accessories	DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, YPbPr/HDMI cable, Ceiling bracket
