Hydraulic Press for Friction Materials
- 250 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Power Source | Hydraulic | Place of Origin | Zhejiang, China | |
| Brand Name | Xinke | Model Number | Y79 | |
| Voltage | 380v | Power(W) | 7.5kW-15kW | |
| Weight | 100t-630t | Dimension(L*W*H) | see design | |
| Certification | ISO9001-2000 | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1,with high precious and durability2,simple controlling
3.intelligent temperature control system

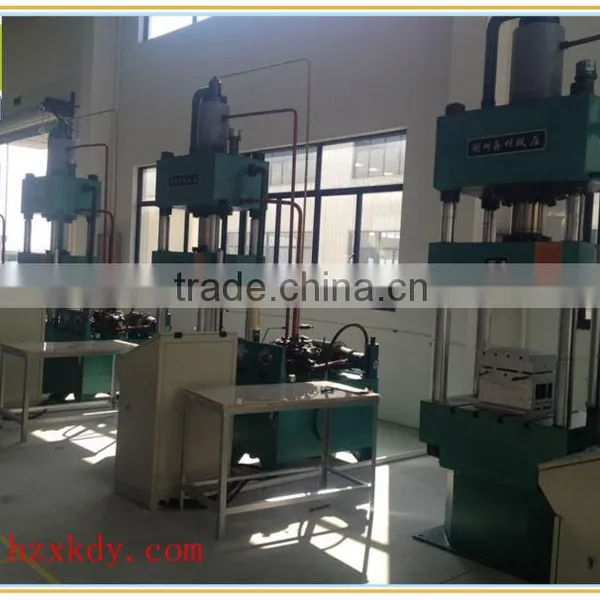

Name: Hydraulic Press for Friction Materials
Characteristics of Hydraulic Press for Friction Materials
1,Gantry or Four-column style based on Computer Optimizing Structure Design with high precious and durability.
2,Latest Closed-loop ratio control technology with digital display, position, pressure and speed setting,
3,Adopted in Inverter Control System with simple controlling, reliable performance and also reach to special SMC forming process.
4,Intelligent Temperature Control System. The precision can reach to ±5°C and Monitoring working conditions for heating elements of hotplate
5, Industrial Touching Screen Monitor and Communication module. Production control room uniform class and monitoring production process and statistics
6, 630T Gantry Hydraulic Press is with exhaust system and Multilayer mold temperature control system, featuring high reliability and high quality
Apllications of Hydraulic Press for Friction Materials :
With the latest Frequency Conversion Control Technology, digital control the speed, pressure, position, pre-press and pressing process. The presses are will suitable for high quality production of various thermo setting friction products. Widely used on making brake pad of automobile industry
Technical Specifications of Hydraulic Press for Friction Materials
| Items Type | Unit | Y79-100 | Y79-200 | Y79-315 | Y79-500 | Y79-630 | |
| Nominal Pressure | kN | 1000 | 2000 | 3150 | 5000 | 6300 | |
| Knock-out Force | kN | 160 | 360 | 450 | 760 | 650 | |
| Ejecting Force | kN | 300 | 400 | 630 | 630 | 630 | |
| Ejection Stroke | kN | 200 | 250 | 300 | 300 | 300 | |
| The Max. Working Pressure of Fluid | MPa | 25 | 25 | 25 | 25 | 25 | |
| Opening Height | mm | 900 | 1120 | 1250 | 1500 | 1500 | |
| Slider Stroke | mm | 600 | 710 | 800 | 900 | 800 | |
| Size of Working Table | Left-Right | mm | 720 | 930 | 1250 | 1400 | 1300 |
| Front-Back | mm | 630 | 900 | 1200 | 1400 | 900 | |
| Slider Speed | Idle Descend | mm/s | 120 | 120 | 160 | 160 | 120 |
| Working | mm/s | 6-15 | 7-18 | 6-15 | 4-11 | 2-5 | |
| Exhausting | mm/s | 3-5 | 3-5 | 3-5 | 3-5 | 3-5 | |
| Return | mm/s | 90 | 100 | 100 | 70 | 60 | |
| Ejecting | mm/s | 50 | 90 | 90 | 95 | 90 | |
| Configuration Power | Kw | 7.5 | 15 | 22 | 22 | 15 | |
| Piston Pump | YCY | 25 | 63 | 80 | 2*63 | ||
| Structure | Four-Column | Four-Column | Four-Column | Four-Column | Gantry-Style | ||
The options of Hydraulic Press for Friction Materials :
Multilayer Frame; Mould heating system; Light curtain safety device; Intelligent Temperature Control System
