Specifications
1.Purity:W 99.95% min.2.Density:19.15g/cm3
3.Standard:ASTMB 760-86
4.Application temperature environment:1800-2750.
The detail information of Pure tungsten plate :
1.Apperance:It has metallic silver luster.
2.Surface:Rolled,polished,machined,ground,finish,depend upon the thickness.
3.We can provide the following size of tungsten plate:
| Thickness(mm): | Width(mm): | Length(mm): | |||
| 1.5-2.0 | 150 | 200 | |||
| 2.0-3.0 | 200 | 250 | |||
| 3.0-4.0 | 250 | 600 | |||
| 4.0-6.0 | 300 | 600 | |||
| 6.0-8.0 | 300 | 600 | |||
| 8.0-10.0 | 300 | 750 | |||
| 10.0-14.0 | 200 | 650 | |||
| 14.0- | 250 | 500 |
4.The physical properties of tungsten plate:
| Atomic number:74 | ||||
| Atomic weight:183.85 | ||||
| Melting point:3410°c | ||||
| Boling point:5560°c | ||||
| Density:≥19.3g/cm3. | ||||
| The specific heat:0.14kj(kg.k) | ||||
| Solution heat:190.3kj/kg | ||||
| Crystal Structure:body-centered cubic |
5.The chemical properties:
The tungsten material didn't easily erosion by the acid and alkali in the nomal temperature.This material have the stability property in the air.
6.The chemical composition of our tungsten plate.
| Element | Al | Ca | Fe | |
| Concentration | ≤0.02 | ≤0.05% | ≤0.05% | |
| Element | Mg | Mo | N | |
| Concentration | ≤0.003% | ≤0.010% | ≤0.03% | |
| Element | Si | C | N | |
| Concentration | ≤0.05% | ≤0.081% | ≤0.003% | |
| Element | O | W | ||
| Concentration | ≤0.005% | Balance | ||
7.Application of tungsten plate:
Suitable for producing ion implantation parts.
For producing electric light source parts and electric vacuum components.
For producing W-boats,heat shild and heat bodies in high temperature furnace.
Used for tungsten sputtering target.

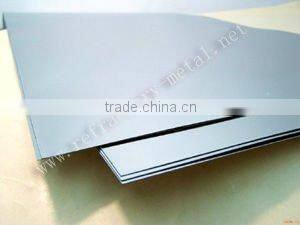

8.Attached our pictures of Pure tungsten plate for your reference:
9.Company file and certification:
Luoyang Tuojing Refractory Metal Co., LTD. located in Luoyang,Henan province,China. The company is specialized in the developing, producing and selling the deep-processing products of tungsten,molybdenum and alloys.Our factory covers an area of 15000 square meters and has annual production of 200-300 tons.
Luoyang Tuojing Refractory metal Co., LTD. has modern workshops and equipments,high quality raw materials,the scientific and strict productive technology and advanced testing equipments.Our products enjoy a good reputation at home and abroad.We are willing to help our customers occupy more market share in the world.
10.We can also provide the following products,you may be interested in:
| Molybdenum Product: | Molybdenum Sheet,Plate/Molybdenum Rod | ||||||
| Molybdenum Crucible/Molybdenum Tube | |||||||
| Molybdenum Special Shape Product | |||||||
| Tungsten Product: | Tungsten Sheet,Plate/Tungsten Rod | ||||||
| Tungsten Crucible/Tungsten heat shield | |||||||
| Tungsten Special Shape Product | |||||||
| Alloy Product: | TZM Alloy/Mo-La Alloy/W-Mo Alloy/Mo-Yt Alloy | ||||||
