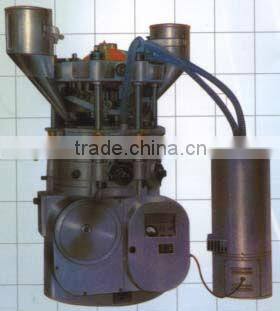

ZP25 ROTARY TABLET PRESS

ZP25 ROTARY TABLET PRESS photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Brand Name:
sunhang
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin China
Brand Name sunhang
Model Number ZP25
Type Rotary Tablet Press
Production Capacity 18000-72000pcs/h
Max. Pressure(KN) 60KN
Max. Tablet Thickness(mm) 15
Max. Tablet Diameter(mm) 9
Voltage 380v 50HZ
Power(W) 3KW
Weight 850
Dimension(L*W*H) 1100X1100X1600 mm

Specifications

ZP25 ROTARY TABLET PRESS



ZP25 ROTARY TABLET PRESS



This machine is designed for pressing tablets from various kinds of materials. Besides round tablets the machine can press the tablets in different geometrical shape and impressed letters on both sides of the tables. The mechanism of the machine belongs to double-press type, including two sets of feed assemblage and press-roller unit. The turret carries 25 sets of movable-punches and dies so 50 tablets are produced by each revolution of the turret rotation. When round tablets are pressed, there are four sets of punches and dies to choose: 1-tablet mode of punch and die through 4-tablet mode of punch and die. The choice is dependent on the diameters of the tablets. So this machine is more suitable for mass production when operated, the speed of the turret rotation, the depth of the filling material and the thickness of tablets are adjustable. A independent suction unit is attached to the machine. This suction unit through its nozzles and hoses can take in the residual powder during operation. Thus the blockage by clustered powder is eliminated and the collected powder material can be reused.



Main Technical Specifications:



Dies                           sets

25

Max. Pressure                   Kn

60

Max. Dia. of Tablet               mm

20

Max. Depth of Fill                mm

15

Max. Thickness of Tablet         mm

9

Turret Speed                    rpm

6-10

Motor

3Kw 950rpm 380V 50Hz

Overall Size                     mm

1100*1100*1700

Net Weight                      Kg

1800

Production Capacity              pcs/H

18000~72000
