YD-18I/ II Automatic Tea-bag Inner and Outer Bag Packing Machine

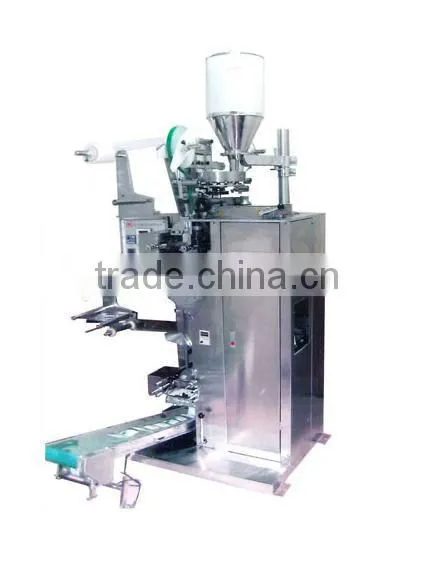

YD-18I/ II Automatic Tea-bag Inner and Outer Bag Packing Machine photo-1

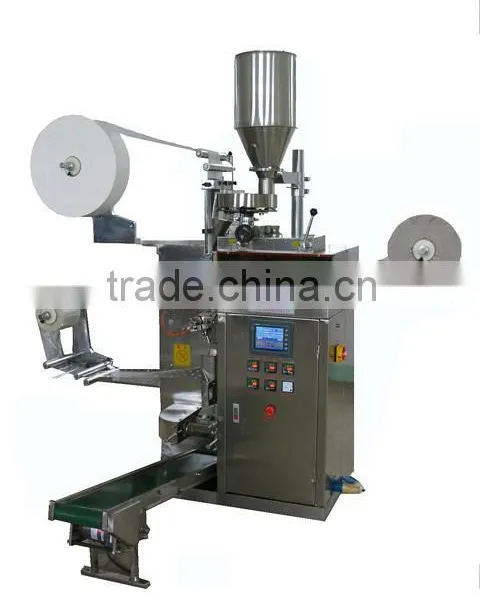

YD-18I/ II Automatic Tea-bag Inner and Outer Bag Packing Machine photo-2

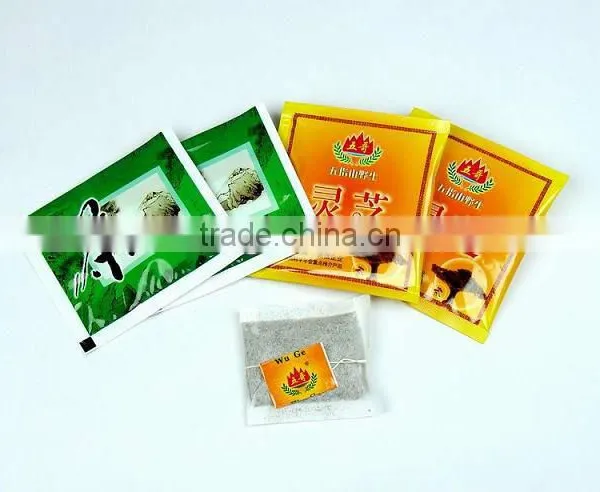

YD-18I/ II Automatic Tea-bag Inner and Outer Bag Packing Machine photo-3
US$ 10,500 - 14,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Other
Packaging Type:
Bags, Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Food, Other
Packaging Type Bags, Pouch
Packaging Material Plastic, Paper
Automatic Grade Automatic
Driven Type Mechanical
Voltage 220V/50HZ
Power 3.5KW
Place of Origin China
Brand Name sunhang
Model Number YD-18I/ II
Dimension(L*W*H) 1000 x 950 x 2000(mm)
Weight 500KG

Specifications

The machine is suitable for the dual bag packing of small grain-like materials, such as tea leafs, medicinal tea and healthy tea

YD-18I/ II Automatic tea-bag inner and outer bag packing machine



1,APPLICATIONS:



The machine is suitable for the dual bag packing of small grain-like materials, such as tea leafs, medicinal tea and healthy teas.







2, FEATURES

   AUTOMATIC TEA-BAG PACKING MACHINE WITH THREAD,TAG AND ENVELOPE is a hot-sealed,automatic and multifunction packing equipment ,The main characteristic of this equipment is it can molding in one time to protect the material from the direct contact with workers’hands and improve the efficiency.The inner bag is filter itssue,tagging with thread and label automatically is available.The outer bag is composite paper (including various kinds of composite membrane hotsealable such as paper/plastic,plastic/plastic,plastic/aluminum/plastic,paper/aluminum/plastic.)The most advantage is ,the capacity ,the inner bag and outer bag can be adjuster flexibly,and the size of the inner and outer bag also can be adjuster according to the requirement of the customer to get the perfect effect.



3, TECHNICAL DATA:

MODEL

YD-18I

YD-18II

FEATURES

The inner bag without thread and tag

The inner bag with thread and tag automatically

FILLING RANGE

3-40(ml)

3-20(ml)

CAPACITY

30-60(bag/min)

30-40(bag/min)

INTER BAG SIZE

W:50-90(mm)

L:50-100(mm)

W:50-90(mm)

L:50-10(mm)

OUTER BAG SIZE

W:80-120(mm)

L:70-120(mm)

W:70-100(mm)

L:80-120(mm)

TAG SIZE



W:40-55(mm)

L:20-40(mm)

THREAD LENGTH



155(mm)

POWER

220V/50HZ

220V/50HZ

TOTAL POWER

3.5KW

3.5KW

DIMENSION

(L*W*H)1000*950*2000(mm)

(L*W*H)900*610*1500(mm)

WEIGHT

500KG

500KG
