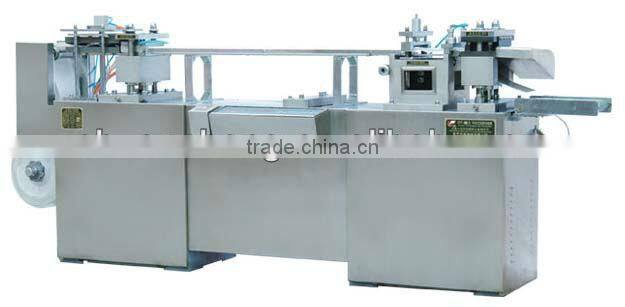

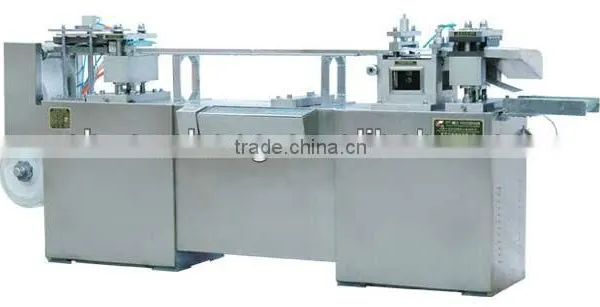

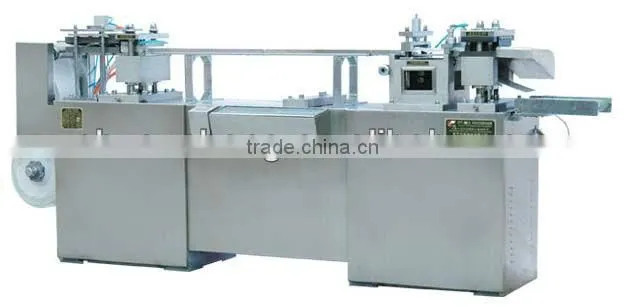

FSC160/FSC250 Auto Plastic Thermoforming Machine
The machine integrates of electricity and optics, adopts the technology like: PC auto-controlling, transducer regulating, the piece of material heated up by temperature, molding by air-press to cutting the finished product, and the numbers of the products can input to the machine. The flow is in a high automatic function can also configure the PLC computer control.(By the request of client).
Characteristic:
It is used for molding the plastic material as BOPS,HIPS,PS,PVC,PET and so on, which is widely used for the mini type soup spoon,the cover of the dish such as the salver of medicine and coffee, the bottleneck of Coca-cola.......
Main Technical Specifications:
Max.Forming Area: 150x150mm/310x150mm (FSC250)
Max.Forming Depth: 30mm
Max.Diameter of Piece: 710mm; 160x0.1-1mm (FSC250)
Air pressure: 0.5MPa
Punching Frequency: 500-1000time/hour
Total Power of Electric Source: 380V 50Hz 5.5KW
Weight: 1500Kg
Overall Size: 2800×850×1900mm
