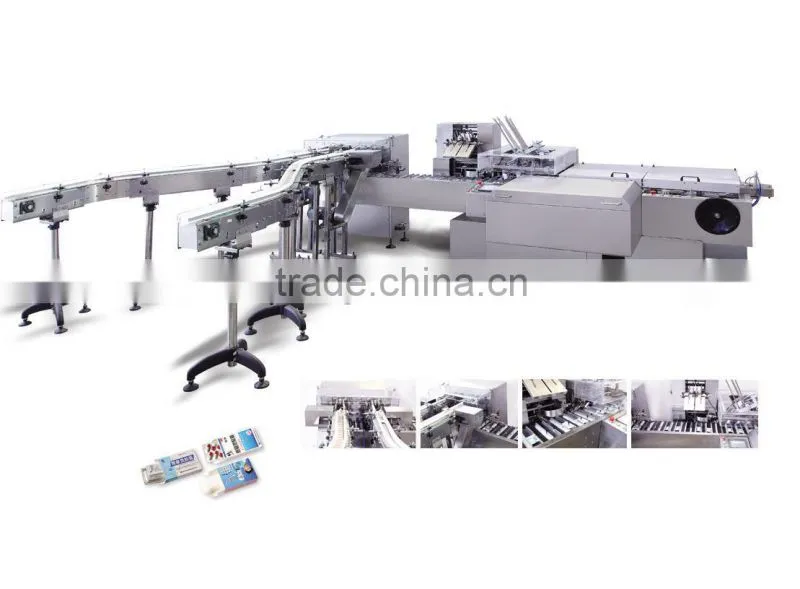

Help CenterWZH-180 Multifunctional Automatic Cartoning Machine
Related Products
-
WZH-180Multifunctional Automatic Cartoning MachineUS$ 1 - 1MOQ: 1 Set -
Blister Packing and Cartoning Machine Packing Production LineUS$ 1 - 1MOQ: 1 Set
-
Simplified BY-600 Chocolate and Chewing Gum FoodStuff Coating MachineNegotiableMOQ: 1 Set
-
BGW High Efficiency Poreless Film Coating MachineUS$ 1,700 - 4,500MOQ: 1 Set
-
SK Single Head Capsule Tablet Accounting MachineUS$ 1 - 8,500MOQ: 1 Set
Specifications
Automatic folding(1~4 folding) and conveying of manual leaflet, , synchronous(3-row) batch number printing, automatic paper cart
Automatic folding(1~4 folding) and conveying of manual leaflet, automatic matenal categorizing and feeding; automatic paper carton apreading; automatic manual leaflet and material carton packaging, synchronous(3-row) batch number printing, automatic paper carton sealing, automatic waster eliminating.
Performance and characteristics:
1. Continuous mechanical feeding materials and carton packing, and working of each functional part is in harmony, stable and reliable.
2. When materials do not reach correct position, the pusher has an alarm and halt facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.
3. Constantly moving carton-opening and pulling carton-opening mechanism are more stable and reliable.
4. Servo material departing and feeding mechanism is stable and reliable.
5. Halt facility for air pressure and vacuum protection ,when caster opened, the halt facility will be checked automatically for operating safety of the machine.
6. It is easy, convenient and quick to change and adjust product size by hand wheel.
7. Variable frequency speed regulation, automatic PLC control, opera-ting on touch screen, words and numbers display, easy to operate, coefficient run stable..
8. Overload protection for principal driving, indication of failure diagno-sis, and automatic halt of failure.
Main Technical Parameters:
Max encasing speed |
180box/min |
|
box |
Quality Requirement |
250-350g/m2 |
Dimension Range (L×W×H) |
(78-150) ×(33-70) ×(15-60)mm |
|
leaflet |
Quality Requirement |
50-70g/m2 |
Folded Leaflet Specification(1-4 Fold) |
(130-160)X(100-130)mm |
|
Air Consumption |
>0.3m3/min 0.6mpa |
|
Motor Power |
1.5kw 380V 50HZ |
|
Machine Dimension (L×W×H) |
4300x1440x1600mm |
|
Machine Net Weight |
1500kg |
|
