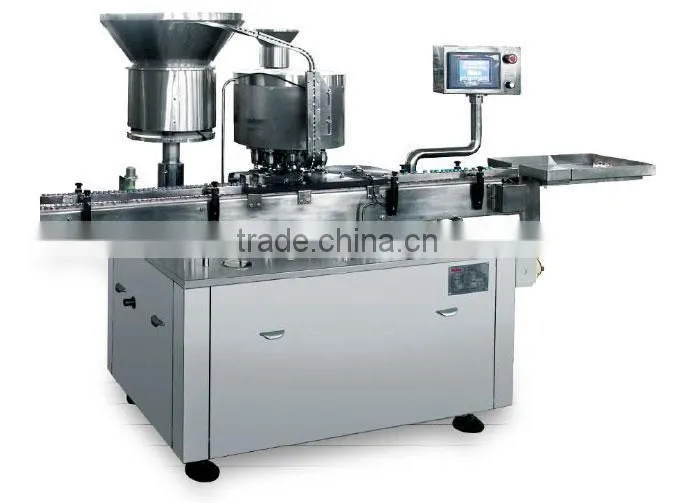

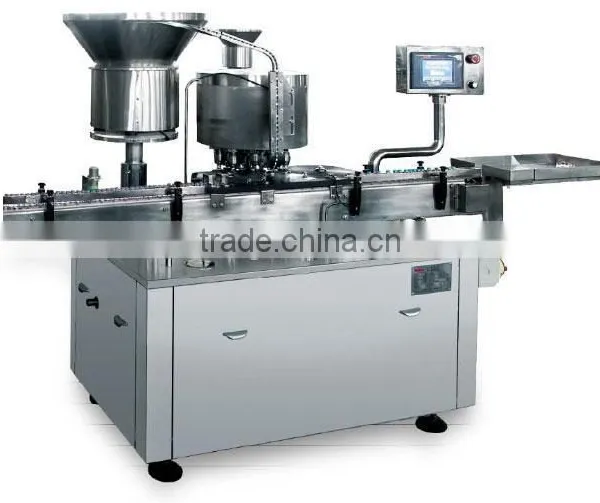

Help Center(ZG-KGL10A) KGL SERIES CAPPING MACHINE
Related Products
Specifications
It's a single-head lid-screwing machine, a good companion of product's packing process for light, food, chemical and pharmaceutiBrief introduction:Zg-kgl10a type capping machine is a new generation high speed capping machine which our company
has developed based on the former 10 head and 12 head model and referring to the similar machine
in overseas market. It is suitable for the capping of round glass bottles and plastic bottles.It is used in
pharmaceutical industry, light industry and chemical industry.
Production capacity:7Ml vial 320~350 bts/min
Working principle:This machine consists of turntable, plastic chain plate conveyor, screw conveyor,
aluminum cap oscillator and its track, bottle holder, capping head, bottle outlet track and electric control
system. It utilizes the positioning and the rotating of bottle holder and capping knife roller to conduct the
capping process.
The bottles come through turntable, conveyor and the screw conveyor to feed, then to the bottle holder
and capping knife roller to be positioned. After that, the bottle will be capped by the force of the cam
and be pushed out one by one.
Characteristic:High production capacity, stable running,high qualified capping ratio, 10 head flexible
capping, bottle breakage ratio is low and suitable bottle range is wide.
Bottle feeding, capping and bottle out are done automatically, can be used as single machine or part
of the production line.
Simple structure and appearance; easy operation, maintenance and cleaning.
Falling bottle auto rejected in the turntable,machine auto stops when bottle falls in the track;no bottle,no
cap-adding;machine auto stops when insufficient cap
Speed adjustable by inverter
Easy to change the change part, aluminum cap oscillator can capping head height adjustable
Optional acrylic glass hood, 100-class laminar flow
Bottle spec |
2~30ml vial or plastic bottle |
Auto cap-adding ratio |
≥99.9% |
Qualified capping ratio |
≥99.7% |
Bottle breakage ratio |
≤0.1% |
Power supply |
220V,50Hz |
Power |
1.6Kw |
Single machine noise |
≤70dB |
Weight |
(approx)400Kg |
Dimension |
2110×1250×1520 (mm) |
