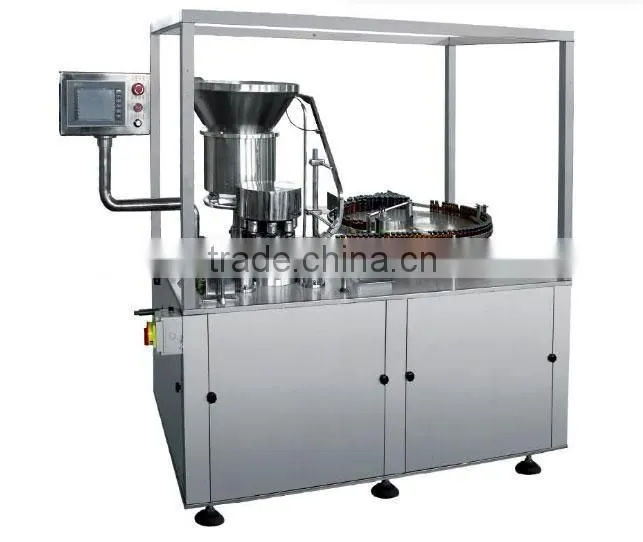

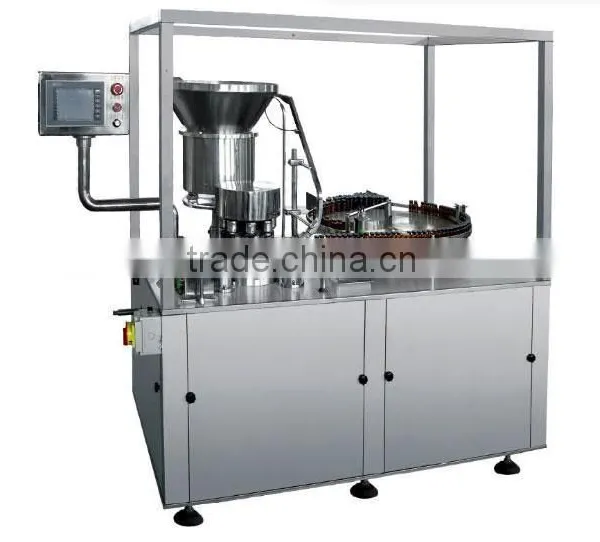

Help Center(ZG-KGL10B) KGL SERIES CAPPING MACHINE
Related Products
Specifications
It's a single-head lid-screwing machine, a good companion of product's packing process for light, food, chemical and pharmaceutiBrief introduction:Zg-kgl10 is a high speed capping machine, which our company has developed based on the former 8-head model through referring similar model in domestic market. It is suitable for the capping of round glass bottle and plastic bottles. It is used in pharmaceutical industry, light industry and chemical industry.
Production capacity:Zg-kgl10 type capping machine 7ml vial 300-320bts/minZg-kgl8 type capping machine 7ml vial 220-250 bts/min
Working principle:This machine consists of turntable,conveyor,star wheel,aluminum cap oscillator and its track,bottle holder,single knife 10 head capping head,bottle outlet track and electric control system. It utilizes the positioning and the rotating of bottle holder and capping knife roller to conduct the capping process.
The bottles comes through turntable,conveyor and the screw conveyor to feed,then to the bottle holder and capping knife roller to be positioned.Then,by the force of the gear,the capping head will push the lower edge of the cap so that the bottle is sealed.finally,the bottles will be pushed out one by one.
Characteristic:Built-in turn table, running is stable. Qualified capping ratio is high and the adjusting of the capping head is easy.
Bottle feeding, capping and bottle out is done automatically, can be used as single machine
Simple structure and appearance; easy operation, maintenance and cleaning.
Falling bottle auto rejected in the turntable,machine alarms when bottle falls in the track;no bottle,no cap-adding;machine auto stops when insufficient cap
Speed is adjusted by inverter
Easy to change the change part, aluminum cap oscillator and capping head can be operated by handwheel
Optional acrylic glass hood
Bottle spec. |
2~30 ml vial or plastic bottle |
||
Auto cap-adding ratio |
≥99.7% |
||
Qualified capping ratio |
≥99.5% |
||
Bottle breakage ratio |
≤0.5% |
||
Power supply |
220V,50Hz |
||
Power |
1.5Kw |
||
Single machine noise |
≤70dB |
||
Weight |
(approx)400Kg |
||
Dimension |
1540×1250×1520(mm) |
||
