----------------------Company Information---------------------
Shenzhen Vision Star Technology Co.,Ltd., a professional cctv cameras manufacturer, with high quality and competitive price. It located in Shenzhen, Guangdong, China. The main products are CCTV Camera, AHD CCTV Camera, DVR, CCTV Acessories.
----------------------Product Description---------------------
Outdoor Vandalprooof Dome Camera;
1/3" Sony 960H Double -Speed CCD;
DSP: Sony Effio-V CXD4141GG;
Ultra High Resolution 800TVL, 0.0003Low Lux;
Super WDR, 2D&3D-DNR, Sense-up, Defog;
OSD /BLC /Motion Detection /Privacy Masking;
36pcs F5 IR-LED, IR Range more than 30M;
2.8-12mm varifocal lens ( 2Mega Pixels );
OSD Languages: Chinese,English,Japanese,French,Portuguese,German,Russian,Spanish.
Model No. |
VS-V3180IR-1 |
|
Camera Type |
Outdoor Vandalproof Dome Camera |
|
Image Sensor |
1/3" SONY 960H CCD(Dual CCD) |
|
System |
PAL: 663+4141+5148 NTSC: 662+4141+5148 |
|
Effective Pixels |
PAL: 1020(H)x508(V) NTSC: 1020(H)x596(V) |
|
Sync. System |
Internal |
|
Signal System |
PAL /NTSC |
|
Horizontal Resolution |
800TV Lines |
|
Min. Illumination |
0.003Lux/F1.2 (IR ON 0 Lux) |
|
Lens |
2.8-12MM Varifocal Lens ( 2Mega Pixels ) |
|
IR LED |
36pcs F5 IR LED |
|
Infrared Wavelength |
850 nm |
|
Illuminate Distance |
30M |
|
WDR |
Super WDR |
|
Noise Reduction |
3DNR+2DNR |
|
Sense Up |
Yes |
|
Defog |
Yes |
|
S/N Ratio |
More Than 52dB (AGC Off) |
|
OSD Menu |
LENS: |
AUTO/MANUAL |
SHUTTER/AGC: |
AUTO/MANUAL |
|
FLIP: |
HV/OFF/V/H |
|
LCD/CRT: |
CRT/LCD |
|
SYNC MODE: |
INT |
|
COMMUNICATION |
|
|
SCENE SELECT: |
CUSTOM/FULL AUTO/INDOOR/OUTDOOR/BACKLIGHT/ITS |
|
WDR ATR-EX: |
WDR:CONTRAST/HIGH/MIDDLE/LOW |
|
CLEAR FACE:LOW/MIDDLE/HIGH/OFF | ||
PICT Adjust: |
BRIGHTNESS/CONTRAST/SHARPNESS/HUE/COLOR GAIN |
|
DAY/NIGHT: |
AUTO/DAY/NGHT |
|
HLC/BLC: |
OFF/ HLC/BLC |
|
LANGUAGE: |
Chinese/English/Japanese/German/French /Russian/Portuguese/Spanish |
|
White BAL : |
ATW FRAME/SPEED/DELAY CNT/ENVIRONMENT |
|
S/N : |
OFF/low/middle low/middle/middle high/high |
|
EZOOM: |
ON/OFF |
|
DIS: |
ON/OFF |
|
PRIVACY MASK: |
Area selection/Display/position/color/Transparency/Mosaic |
|
DETEC MOV: |
ACTIVAR/DESACTIVAR |
|
MOTION DET: |
ON/OFF |
|
I/O Connector |
Power: DC Power Jack, Video Output: BNC |
|
Video Output |
1.0Vp-p Composite Output (75Ω / BNC) |
|
Power Supply |
DC12V(+/-10%) |
|
Working Temperature |
-10°C~50°C |
|
Working Humidity |
≤ 95% RH |
|
Dimensions |
110mm x 80mm |
|
Weight |
Approx. 0.80kg |
|
------------------------Product Display------------------------

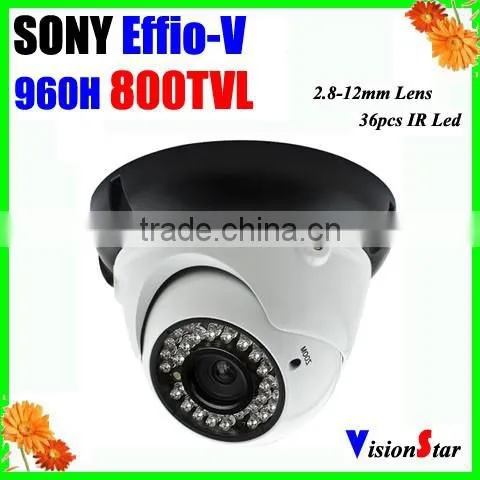

High Quality CCTV Camera Board Sony Effio-V 960H Infrared IR led Camera Zoom 2.8-12mm Varifocal Lens Security Camera Effio-V
CCTV Competive price!!!
Two yeasrs Warranty!!!
High Quality!!!
Good service!!!
Top Sell IP66 Waterproof CCTV Camera, Vandalproof Camera, Plastic Camera, Box Camera and Mini Camera
New Stypes Cameras

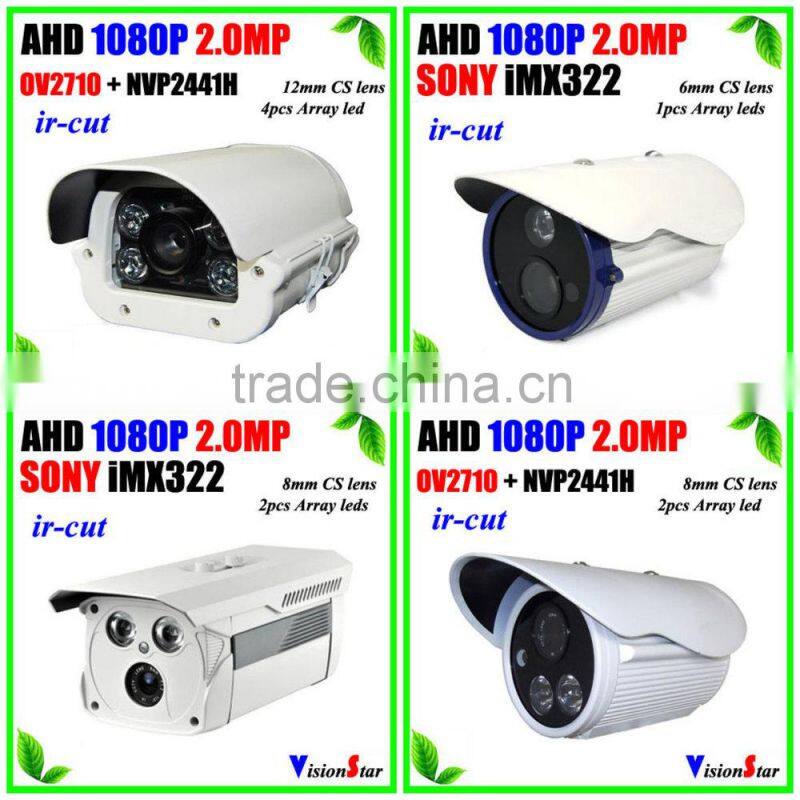

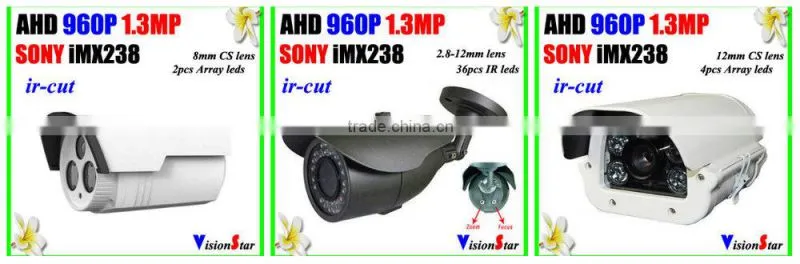

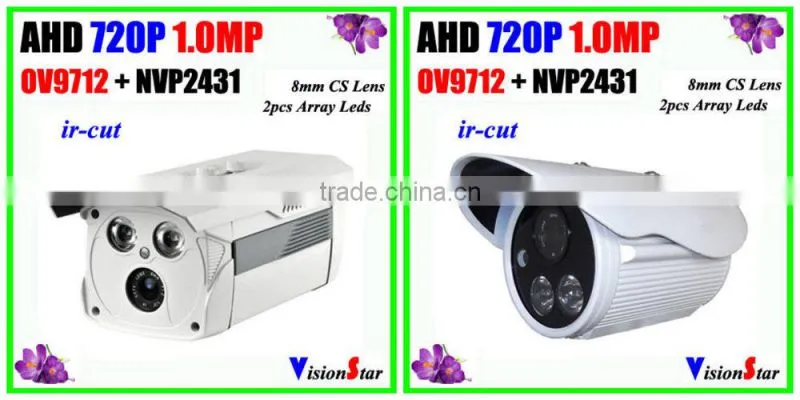

AHD 720P 1.0MP, 960P 1.3MP, 1080P 2.0MP Camera
