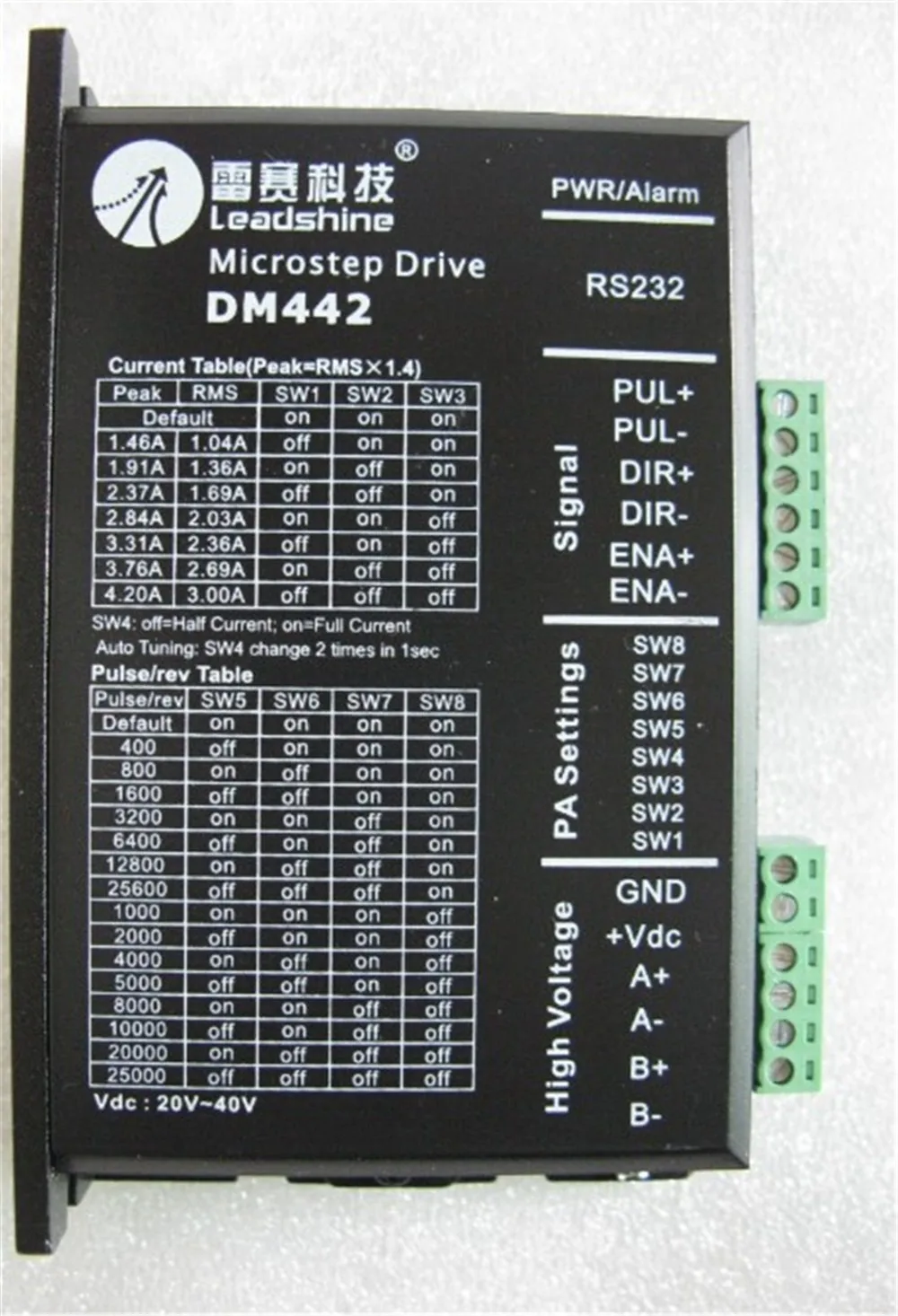

Leadshine DM442 nema 17 23 stepper motor driver
The DM442is a versatility fully digital stepping drive based on a DSP with advanced control algorithm. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. The self-test and auto-configuration technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drives on the markets. Its unique features make the DM442 an ideal solution for applications that require low-speed smoothness.
Compared to the DM432C, DM442 can output more current. What’s more, owing to its higher performance DSP, driven motors can achieve much higher speed than that of the DM432C, offering servo-like performances.
Features
Extra-low motor noise offers excellent quietness
Anti-Resonance, provides optimum torque and nulls mid-range instability
Self-test and Auto-configuration technology, offers optimum responses with different motors
Microstep resolutions programmable, from full-step to 102,400 steps/rev
Supply voltage up to +40 VDC
Output current programmable, from 0.5A to 4.2A
Pulse input frequency up to 200 KHz
Automatic idle-current reduction
Supports PUL/DIR and CW/CCW modes
Specifications
| Model | Phase | Current(A) | Voltage(V) | Adaptive motor | Weight(kg) | Dimensions(mm) |
| DM320C | 2 | 0.5-2 | 18-30 DC | 39 42 | 0.1 | 86*55*20 |
| DM422 | 2 | 0.5-2.2 | 18-36 DC | 39 42 | 0.15 | 86*55*20 |
| DM422C | 2 | 0.5-2.2 | 18-36 DC | 39 42 | 0.15 | 86*55*20 |
| DM422C-64 | 2 | 0.5-2.2 | 18-40 DC | 42 57 | 0.23 | 86*55*20 |
| DM432C | 2 | 1.3-3.2 | 18-40 DC | 42 57 | 0.28 | 116*69.2*26.5 |
| DM442 | 2 | 1.4-4.2 | 18-36 DC | 42 57 | 0.2 | 116*69*26.5 |
| DM542 | 2 | 1.0-4.2 | 18-48 DC | 57 86 | 0.23 | 118*75.5*33 |
| DM542-500 | 2 | 1.0-5.0 | 18-48 DC | 57 86 | 0.23 | 118*75.5*33 |
| DM556 | 2 | 2.1-5.6 | 18-48 DC | 57 86 | 0.28 | 118*75.5*33 |
| DM856 | 2 | 2.1-5.6 | 18-70 DC | 57 86 | 0.28 | 118*75.5*33 |
| DM856-SW | 2 | 2.1-5.6 | 18-70 DC | 57 86 | 0.28 | 118*75.5*33 |
| DM870 | 2 | 2.1-7.0 | 18-70 DC | 57 86 | 0.28 | 118*75.5*33 |
| DM860 | 2 | 2.4-7.2 | 18-80 DC | 57 86 | 0.38 | 151*97*48 |
| DMA860H | 2 | 2.0-6.0 | 18-80 DC | 34 42 | 0.57 | |
| DMA860H-DK | 2 | 2.0-6.0 | 18-80 DC | 34 42 | 0.57 | |
| DM1182 | 2 | 2.2-8.2 | 90-130 AC | 86 110 | 1.3 | 200*145*83 |
| DM2282 | 2 | 2.2-8.2 | 180-240 AC | 86 110 130 | 1.7 | 200*145*83 |
Connections
Product photos
Applications
For a variety of small and medium sized automation equipment and instruments, such as: laser processing equipment, engraving equipment, medical equipment, measuring equipment, electronic processing equipment, textile and garment equipment. User expectations low vibration, low noise devices used in, the better.
Similar items
| Model | Phase | Current | Voltage | Matching motor | Application |
| DM320C | 2ph | 0.5~2A | 18~30VDC | Nema14 15 17 Motor | Good for Low Speed |
| DM422 | 2ph | 0.5~2.2A | 18~40VDC | Nema14 15 17 Motor | |
| DM422C | 2ph | 0.5~2.2A | 18~40VDC | Nema15 17 Motor | Good for Low Speed |
| DM422C-64 | 2ph | 0.5~2.2A | 18~40VDC | Nema15 17 Motor | Pneumatic Marking Machine |
| DM432C | 2ph | 1.3~3.2A | 18~40VDC | Nema17 23 Motor | Good for Low Speed |
| DM442 | 2ph | 1.46~4.2A | 18~40VDC | Nema17 23 Motor | |
| DM542 | 2ph | 1~4.2A | 20~50VDC | Nema23 34 Motor | |
| DM542-500 | 2ph | 1~5A | 20~50VDC | Nema23 34 Motor | |
| DM556 | 2ph | 2.1~5.6A | 18~50VDC | Nema23 34 Motor | |
| 3DM583 | 3ph | 2.1~8.3A | 24~40VDC | Nema23 34 Motor | |
| DM856 | 2ph | 2.1~5.6A | 18~80VDC | Nema23 34 Motor | |
| DM856-SW | 2ph | 2.1~5.6A | 18~80VDC | Nema23 34 Motor | Sewing Equipment |
| DM860 | 2ph | 2.4~7.2A | 24~60VDC | Nema23 34 Motor | |
| DMA860H | 2ph | 2.4~7.2A | 36~80VDC | Nema34 42 Motor | |
| DMA860H-DK | 2ph | 2~6A | 18~80VAC | Nema34 42 Motor | Carving Machine |
| DM1182 | 2ph | 2.2~8.2A | 60~130VAC | Nema34 42 Motor | |
| DM2282 | 2ph | 2.2~8.2A | 180~240VAC | Nema34 42 52 Motor | |
| 3DM683 | 3ph | 3.2~8.3A | 20~60VDC | Nema23 34 Motor | |
| 3DM2283 | 3ph | 2.2~11.7A | 180~240VAC | Nema34 42 52 Motor |
