DM542-500 leadshine industrial dc stepper motor controller

Name: DM542-500 leadshine industrial dc stepper motor controller
Brand: Leadshine
Price: USD $10 - 150 / Piece

FOB Price

USD $10 - $150 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shenzhen/Hongkong/Guangzhou
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Leadshine	Model Number:	DM542-500
Motor Type:	Stepper Motor

Product Description

Welcome

Thanks for your visiting, for product details, competitive price or more items, welcome to contact Surina directly. :)

DM542-500 leadshine industrial dc stepper motor controller

DM542-500 digital low-voltage stepper motor drive, using the latest 32-bit DSP technology, suitable for driving 57,86 series motor, with excellent low-speed performance to meet the application needs of most small and medium sized equipment.
With built-in micro-segmentation technology, even at low breakdown conditions, but also to achieve high breakdown effect, low-speed operation is very smooth, minimal noise.
Drive internal integration parameter self-tuning feature that can automatically generate the optimal operating parameters for different motors to maximize the performance of the motor.
Features
Can drive four lines, 8 lines of two-phase stepper motor
Voltage input range: 18 ~ 50 VDC
Current Max: 5A, Resolution: 0.1A
Subdivision range: 400 ~ 25600ppr
Signal Input: Differential / Single-Ended, pulse / direction or double pulse, 5 ~ 24VDC level compatible
Impulse Response Frequency: 200KHz
Built-in micro-segmentation
The electrical parameters of the automatic tuning function
Precision current control of the motor heat is greatly reduced
Stationary current is automatically reduced by half
Optically isolated inputs, strong anti-jamming capability
Overvoltage, overcurrent protection function

Specifications

Model	Phase	Current(A)	Voltage(V)	Adaptive motor	Weight(kg)	Dimensions(mm)
DM320C	2	0.5-2	18-30 DC	39 42	0.1	865520
DM422	2	0.5-2.2	18-36 DC	39 42	0.15	865520
DM422C	2	0.5-2.2	18-36 DC	39 42	0.15	865520
DM422C-64	2	0.5-2.2	18-40 DC	42 57	0.23	865520
DM432C	2	1.3-3.2	18-40 DC	42 57	0.28	11669.226.5
DM442	2	1.4-4.2	18-36 DC	42 57	0.2	1166926.5
DM542	2	1.0-4.2	18-48 DC	57 86	0.23	11875.533
DM542-500	2	1.0-5.0	18-48 DC	57 86	0.23	11875.533
DM556	2	2.1-5.6	18-48 DC	57 86	0.28	11875.533
DM856	2	2.1-5.6	18-70 DC	57 86	0.28	11875.533
DM856-SW	2	2.1-5.6	18-70 DC	57 86	0.28	11875.533
DM870	2	2.1-7.0	18-70 DC	57 86	0.28	11875.533
DM860	2	2.4-7.2	18-80 DC	57 86	0.38	1519748
DMA860H	2	2.0-6.0	18-80 DC	34 42	0.57
DMA860H-DK	2	2.0-6.0	18-80 DC	34 42	0.57
DM1182	2	2.2-8.2	90-130 AC	86 110	1.3	20014583
DM2282	2	2.2-8.2	180-240 AC	86 110 130	1.7	20014583

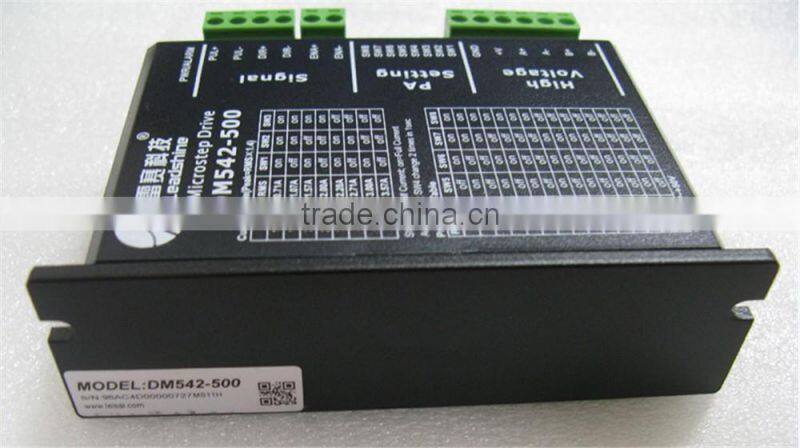

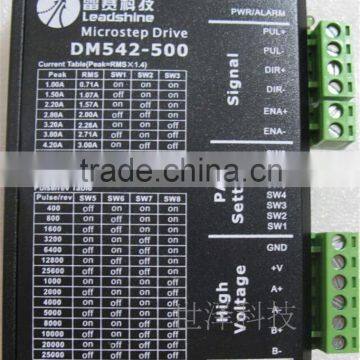

Product photos

Applications

For a variety of small and medium sized automation equipment and instruments, such as: laser processing equipment, engraving equipment, medical equipment, measuring equipment, electronic processing equipment, textile and garment equipment. User expectations low vibration, low noise devices used in, the better.

Similar items

Model	Phase	Current	Voltage	Matching motor	Application
DM320C	2ph	0.5~2A	18~30VDC	Nema14 15 17 Motor	Good for Low Speed
DM422	2ph	0.5~2.2A	18~40VDC	Nema14 15 17 Motor
DM422C	2ph	0.5~2.2A	18~40VDC	Nema15 17 Motor	Good for Low Speed
DM422C-64	2ph	0.5~2.2A	18~40VDC	Nema15 17 Motor	Pneumatic Marking Machine
DM432C	2ph	1.3~3.2A	18~40VDC	Nema17 23 Motor	Good for Low Speed
DM442	2ph	1.46~4.2A	18~40VDC	Nema17 23 Motor
DM542	2ph	1~4.2A	20~50VDC	Nema23 34 Motor
DM542-500	2ph	1~5A	20~50VDC	Nema23 34 Motor
DM556	2ph	2.1~5.6A	18~50VDC	Nema23 34 Motor
3DM583	3ph	2.1~8.3A	24~40VDC	Nema23 34 Motor
DM856	2ph	2.1~5.6A	18~80VDC	Nema23 34 Motor
DM856-SW	2ph	2.1~5.6A	18~80VDC	Nema23 34 Motor	Sewing Equipment
DM860	2ph	2.4~7.2A	24~60VDC	Nema23 34 Motor
DMA860H	2ph	2.4~7.2A	36~80VDC	Nema34 42 Motor
DMA860H-DK	2ph	2~6A	18~80VAC	Nema34 42 Motor	Carving Machine
DM1182	2ph	2.2~8.2A	60~130VAC	Nema34 42 Motor
DM2282	2ph	2.2~8.2A	180~240VAC	Nema34 42 52 Motor
3DM683	3ph	3.2~8.3A	20~60VDC	Nema23 34 Motor
3DM2283	3ph	2.2~11.7A	180~240VAC	Nema34 42 52 Motor
