M860 leadshine 2 phase 24v dc motor controller

Thanks for your visiting, for product details, competitive price or more items, welcome to contact Surina directly.  :)

M860 leadshine 2 phase 24v dc motor controller

The M860 is a high performance microstepping drive based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drives on the markets. It is suitable for driving 2-phase and 4-phase hybrid stepping motors.
Features
Extremely cost-effective
Good high speed performance
Supply voltage up to +72VDC
Output current up to 7.2A
Self-adjustment technology
Pure-sinusoidal current control technology
Pulse input frequency up to 300 KHz
TTL compatible and optically isolated input
Automatic idle-current reduction
16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
Suitable for 2-phase and 4-phase motors
Support PUL/DIR and CW/CCW modes
Short-voltage, over-voltage, over-current and short-circuit protection

Specifications

Electronic connection

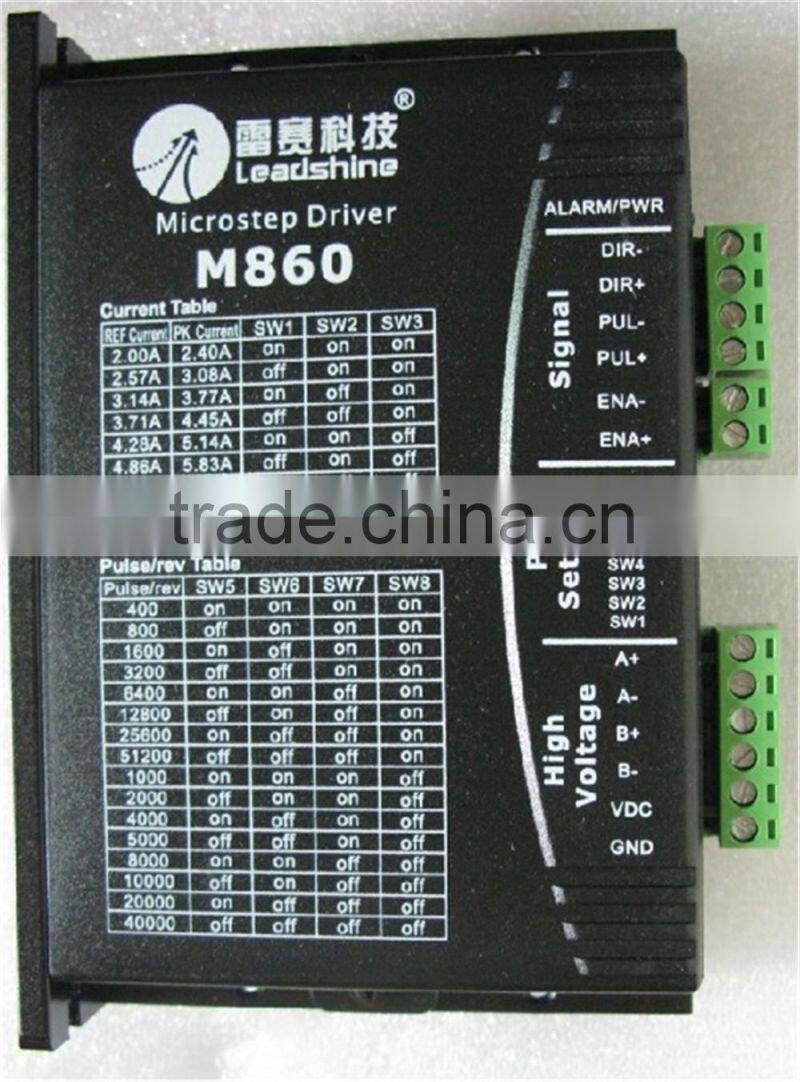

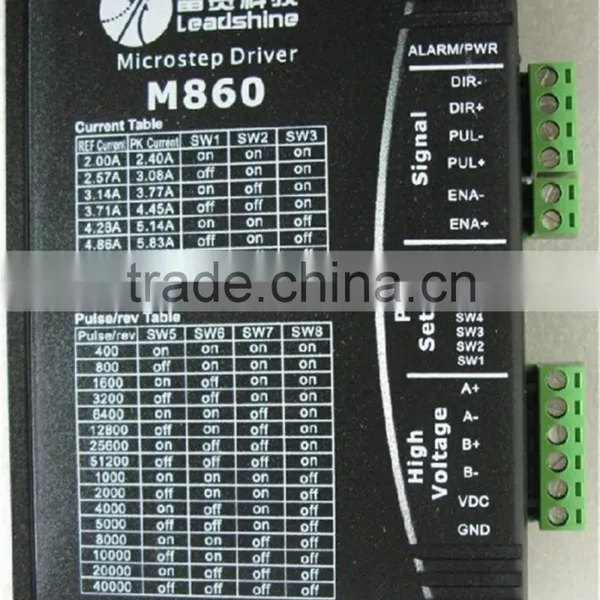

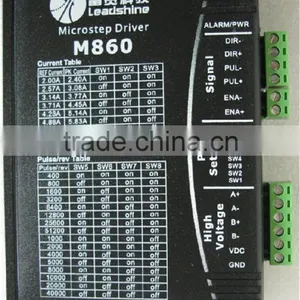

Product photos

Application
For a variety of medium-sized automation equipment and instruments, such as: engraving machine, labeling machine, cutting machine, laser phototypesetting, plotters, CNC machine tools, handling the devices. In user expectations low vibration, low noise, high speed, high-precision equipment applications excellent special effects.
