Product Details
Place of Origin: | Guangdong, China | Brand Name: | Leadshine | Model Number: | 573S20-LS+3DM583 |
Phase: | 3 | Type: | Other, General stepper motor | Step Angle(degrees): | 1.2 Degree |
Holding Torque: | 2Nm | Current / Phase: | 5.8A |
Product Description
Thanks for your visiting, for product details, competitive price or more items, welcome to contact Surina directly. :)
573S20-LS+3DM583 leadshine 3-phase nema 23 stepper motor driver kit
Typical Applications
Suitable for applications require high reliability, high performance, low cost stepper systems, such as CNC routers, small and medium size milling or engraving machines, laser machines, textile equipment, medical devices, assembly machines, pick and place devices, etc.
DM Series - DSP Based Digital Stepper Drives
*Step & direction or CW/CCW control
*Advanced DSP-based current control algorithm
*Low-middle speed anti-resonance
*Extra low noise; extra low motor heating; smooth motor movement
*Easy setup via DIP switches for microstepping resolution and output current
*Free software for fine tuning, output current, resolutions...
*Automatic stepper motor identification and self configuration
Drive
Model | Phase | Current (A) | Voltage (V) | Microstep resolution | Control Type | Adaptive motor |
DM442 | 2 | 1.4-4.2 | 18-40 DC | 2-128,5-125 | Step&Dir | 42 57 |
DM556 | 2 | 2.1-5.6 | 18-48 DC | 2-128,5-125 | Step&Dir | 42 57 86 |
DM1182 | 2 | 2.2-8.2 | 60-130 AC | 2-128,5-125 | Step&Dir | 110 86 |
3DM580 | 3 | 3.2-8.3 | 20-60 DC | 2-128,5-125 | Step&Dir | 57 86 |
Specifications
Stepper motor drive kit | Brand | Drive volt. | Flange | Holding torque | Holding torque | Phase | Rate current | Axis dia. | Application |
57HS09+DM442 | TOAUTO | 24VDC | NEMA23 | 0.9Nm | 128 oz-in | 2ph | 3A | 6.35mm | Laser Machine |
57HS13+DM442 | TOAUTO | 24VDC | NEMA23 | 1.3Nm | 186 oz-in | 2ph | 3A | 6.35mm | Laser Machine |
86HS35+DM556 | TOAUTO | 48VDC | NEMA34 | 3.5Nm | 500 oz-in | 2ph | 3A | 9.5mm | Lase rMachine |
86HS45+DM556 | TOAUTO | 48VDC | NEMA34 | 4.5Nm | 643 oz-in | 2ph | 4.2A | 12.7mm | Engraving Machine |
86HS85+DM556 | TOAUTO | 48VDC | NEMA34 | 8.5Nm | 1214 oz-in | 2ph | 4.2A | 12.7mm | Engraving Machine |
86HS85D+DM556 | TOAUTO | 48VDC | NEMA34 | 8.5Nm | 1214 oz-in | 2ph | 4.2A | 12.7mm | Engraving Machine |
86HS120+DM556 | TOAUTO | 48VDC | NEMA34 | 12Nm | 1714 oz-in | 2ph | 4.2A | 15.87 | Engraving Machine |
110HS20+DM1182 | TOAUTO | 110VAC | NEMA42 | 20Nm | 2857 oz-in | 2ph | 6A | 19mm | Textile Machine |
110HS28+DM2282 | TOAUTO | 110VAC | NEMA42 | 28Nm | 2857 oz-in | 2ph | 6.5A | 19mm | Textile Machine |
573S09+3DM583 | TOAUTO | 48VDC | NEMA23 | 0.9Nm | 128 oz-in | 3ph | 3.5A | 6.35mm | Laser Machine |
573S15+3DM583 | TOAUTO | 48VDC | NEMA23 | 1.5Nm | 128 oz-in | 3ph | 5.2A | 8mm | Laser Machine |
573S15-L+3DM583 | Leadshine | 48VDC | NEMA23 | 1.5Nm | 128 oz-in | 3ph | 5.2A | 8mm | Laser Machine |
573S20-LS+3DM583 | Leadshine | 48VDC | NEMA23 | 2Nm | 285 oz-in | 3ph | 5.8A | 8mm | Laser Machine |
863S22+3DM583 | Leadshine | 48VDC | NEMA34 | 2.2Nm | 314 oz-in | 3ph | 5A | 12mm | Laser Machine |
863S42+3DM583 | TOAUTO | 48VDC | NEMA34 | 4.2Nm | 600 oz-in | 3ph | 5A | 12mm | Laser Machine |
863S68H+3DM583 | Leadshine | 48VDC | NEMA34 | 6.8Nm | 971 oz-in | 3ph | 2.2A | 14mm | Laser Machine |

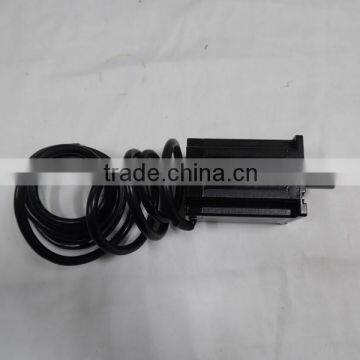

Product photos
Delivery details:
1. Item will be shipped out within 1-5 working days by DHL, FedEx, UPS, EMS ASAP. We will choose the best and suitable shipping company. Usually it takes 3-7 working days to most of the country. You will be notified the tracking number once shipped out.
2. International buyers are responsible for any and all customs, duties taxes and brokerage fees to be paid to the courier or government. Please contact your local customs office with further inquiries in this issue. We will not be responsible for with respect to any tariffs, duties, or any and all other charges requested or required by destination countries.
Terms of sales:
1. We accept 14 days return policy. If you want to return the item, please contact us in 14 days first and make sure the package is un-opened. The buyer has to pay for the go and back delivery cost and the custom fee of each country. Once we received the product and checked, we will make refund for the part in 24 hours.
2. We make sure the item is brand new with original package and offer 1 year warranty for the quality.
3. Any quality problem in normal use during the warranty period, We offer free repair. The buyer should pay the return cost and our company will pay the re-shipping cost.
