Infrared technology cmos sensor weatherproof outdoor security onvif 3 Mega pixels H.265 IP camera
cctv hd ip camera 3.0mp high definition surveillance system

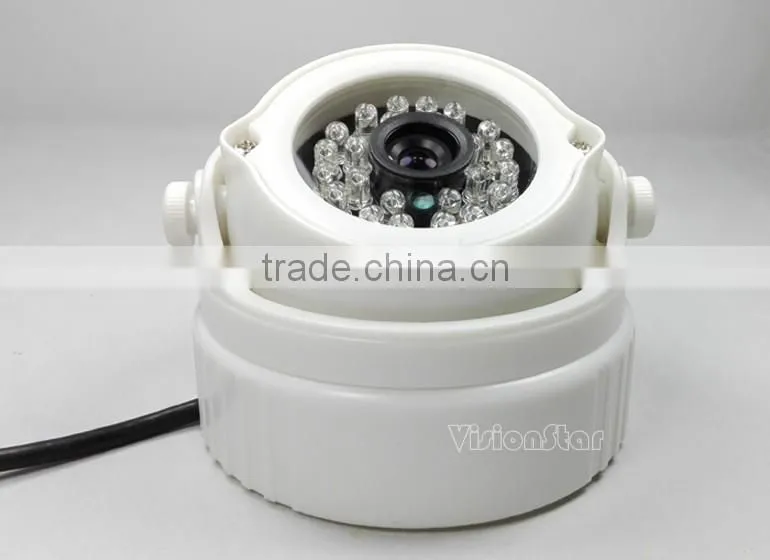

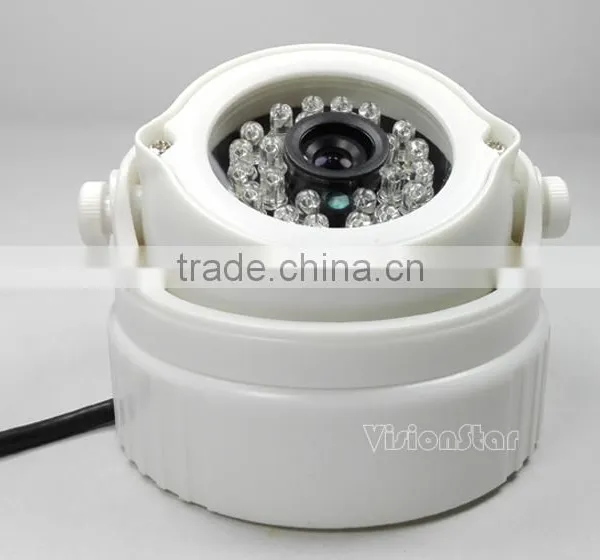

1. H.265 / H.264 3.0Megapixels Color Dome IP camera
2. 1/3” CMOS Sensor OV4689 + HI3516D, high definition 2048 x 1520.
3. Board Lens 3.6mm, optional 6mm
4. Built-in IR-CUT filter, day night auto switch
5. Advanced H.264/ H.265 video compression, achieving ultra low bit rate, superb high-definition picture quality.
6. Support various information superimposed(such as DDNS etc.)
7. Support dual-stream
8. Plug and play, with cloud service
9. Support various mobile monitoring (Iphone, Symbian, Android etc.)
10. Support multiple web browser under Windows OS (IE,Chrome,Firefox,Safari), support 10 users log into at the same time(MAX), do not support MAC system.
11. Support auto electronic shutter, adapt to different monitoring environment

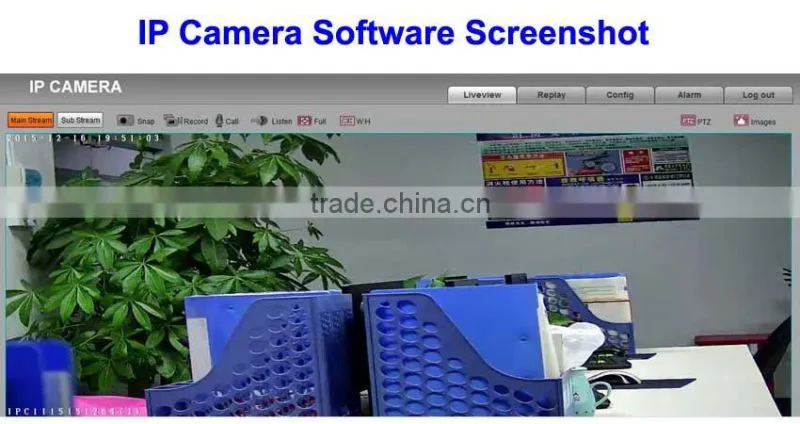

12. Built-in Web server enables the use of a standard Web browser for viewing and management
13. Standard ONVIF 2.2, support HVR, NVR connection and storage
Camera | |
Model No. |
VS-D3030IR-IP |
Camera Type |
Color IR Dome IP Camera |
Image Sensor |
3.0MegaPixels 1/3” CMOS Sensor OV46889 |
Main Processor |
HI3516D |
Resolution |
2048 x 1520, 3.0Megapixels |
Min illumination |
Color 0.05Lux / F1.2, B/W 0.01Lux / F1.2(IR ON) |
Lens |
Standard 3.6mm board lens |
IR Led |
24pcs IR LEDs |
IR Distance |
20-30M |
Day / Night |
Built-in IR-CUT filter, Day / Night Auto Switch |
S/N Ratio |
≥50db(AGC OFF) |
WDR |
DWDR, >80db |
Compression Standard | |
Video Coding |
H.264 Baseline/ Main profile/ High profile, H.265 Main profile |
MJPEG for snapshot | |
Main Stream |
2592 x 1520, 1-15 FPS |
2048 x 1536, 1-25(30) FPS | |
1920 x 1080, 1-25(30) FPS | |
Sub Stream |
704*576, 1-25(30)FPS, 640*480, 1-25(30)FPS |
640*352, 1-25(30)FPS, 320*240, 1-25(30)FPS | |
Compression Rate |
32 Kbps~16Mbps Continuously adjustable,support CBR/VBR |
Subtitle Overlay |
Support Channel Name, Date/Time, Stream information Overlay, position is adjustable |
Network &Storage | |
Storage |
Network, HVR, NVR |
Video Recording |
Manual, Auto( Loop, Timer, Alarm, Motion Detection) |
Alarm |
FTP, E-mail, IE, CMS software |
Support Protocol |
TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP,NTP,PPPOE,SMTP, UPNP |
Onvif |
Standard Onvif |
Remote View |
Support remote view by IE6.0 or above browser (Built-into Web server), support 10 users log into at the same time(MAX) |
Mobile View |
Support Windows Mobile, iPhone, iPad, Android system |
Interface | |
Ethernet |
10M / 100M mbps Ethernet (RJ-45) |
General standard | |
Temperature and Humidity |
-10°C~50°C, humidity less than 95%(no condensation) |
Power Supply |
DC12V±10% / PoE(optional) |
Dimension(mm) |
100mm X 70mm |
Weight |
0.3KG |
We use a color box for camera, then use another carton box to pack it carefully. Our shipping time is 3-5 working days, by DHL, UPS, TNT, Fedex, EMS or Aramex. The price not including any tax rate caused in destination country's Customs.
Each item will be tested and checked before shipping, for any problems after you received,such as damage, defective, please contact us immediately for helping, and please don't heasitate to contact us for any unsatisfyingbefore you open a dispute, we will try our best to offer you a reasonable solution.
Vision Star is a professional manufacturer of surveillance video system devices in China. Our main products including: IP camera, AHD camera, Analog camera, DVR, NVR, HVR and cctv accessories. We are always striving to provide you High Quality cameras with Reasonable Price, Fast Delivery, Excellent Service. We sincerely hope to do mutual-beneficial and wonderful business with you.
