52mm 300w 0.4Nm ER11 3000rpm dc 12v air cooled spindle motor for cnc diy carving pcb milling machine
- 1000 Piece / Pieces per Month
- Shenzhen/Hongkong/Guangzhou
- Credit Card PayPal
You May Like
-
52mm 300w 0.4Nm ER11 6000rpm dc 24 volt air cooled spindle motor for cnc milling machine
-
52mm 300w 0.4Nm ER11 9000rpm dc 48v air cooled spindle motor for cnc
-
3000rpm 300w ER11 12 volt DC spindle motor+power governor+52D mount bracket
-
6000rpm 300w ER11 24volt DC spindle motor+power governor+52D mount bracket
-
9000rpm 300w ER11 48 volt DC spindle motor+power governor+52D mount bracket
-
9000rpm 0.3kww ER11 48 volt DC spindle motor+power governor+52D mount bracket+12pcs collets
Product Details
Place of Origin | Guangdong, China | Brand Name | ToAuto | |
Model Number | TOAUTO-DC-300W | Application | Other, for cnc diy carving pcb milling machine | |
Maximum Torque | 0.4Nm | Drive | Motor | |
Operating Speed | 3000rpm |
Product Description
Thanks for your visiting, for product details, competitive price or more items, welcome to contact Surina directly. :)
52mm 300w 0.4Nm ER11 3000rpm dc 12v air cooled spindle motor for cnc diy carving pcb milling machine
Application Fields
CNC DIY Carving PCB, Acrylic, Drill Hole, tapping, metal or nonmetal material.
Specification
Type | Air Cooling DC Spindle Motor | ||
Rated voltage | 12V | 24V | 48V |
rotate speed | 3000r/min | 6000r/min | 9000r/min |
Power | 300W | ||
Max current | 6A | ||
Torque | 400mN.m | ||
Nut& Collet | ER11 3.175mm(default) | ||
Collet range | 1~7mm | ||
Absolute temperature rise | 15 degree centigrade | ||
Insulation Resistance | greater than 2Mohm | ||
Dielectric strength of insulation | 400V | ||
Diameter | 52mm | ||
Motor length | 175mm | ||
Radial pulsation | 0.01mm | ||
Carving object | metal or nonmetal | ||
Carbon brush | Extra position | ||
Advantage | lower noise and large force |
Available accessories(Leave a message)
Fixture bracket | Diameter 52mm | $9.9/PCS |
Power Supply | 48V 360W | $29/PCS |
Collet | 1/1.5/2/2.5/3/3.175/3.5/4/5/6/6.35/7mm | $1.9/PCS |

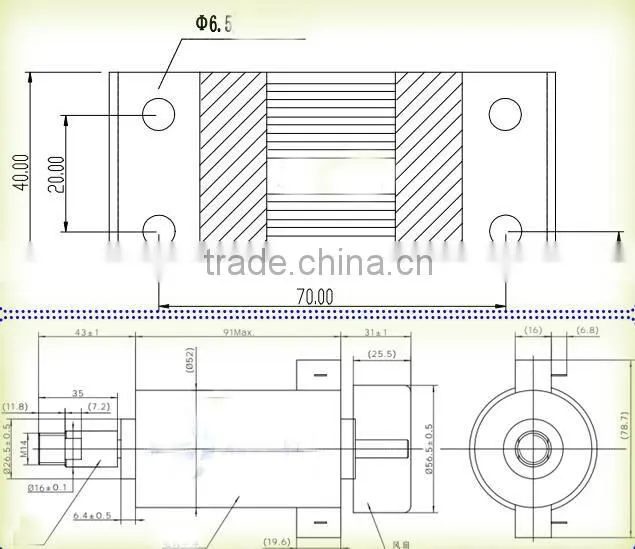

Dimension

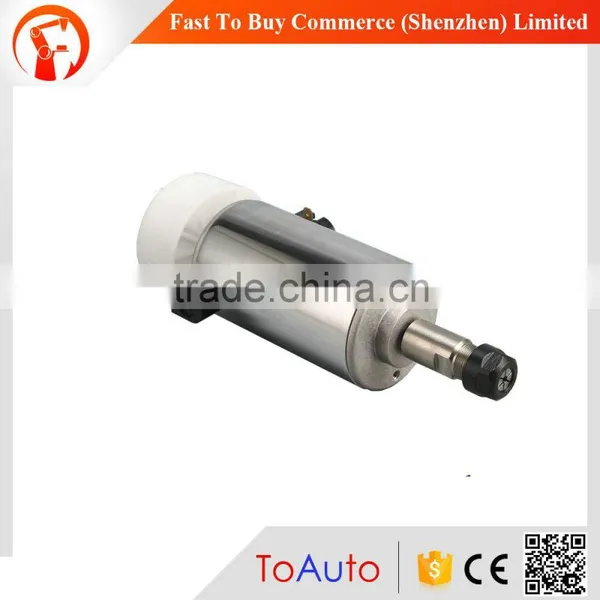

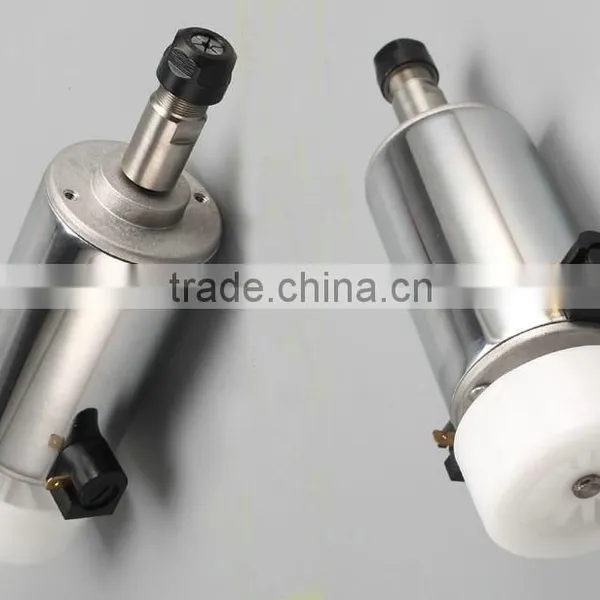

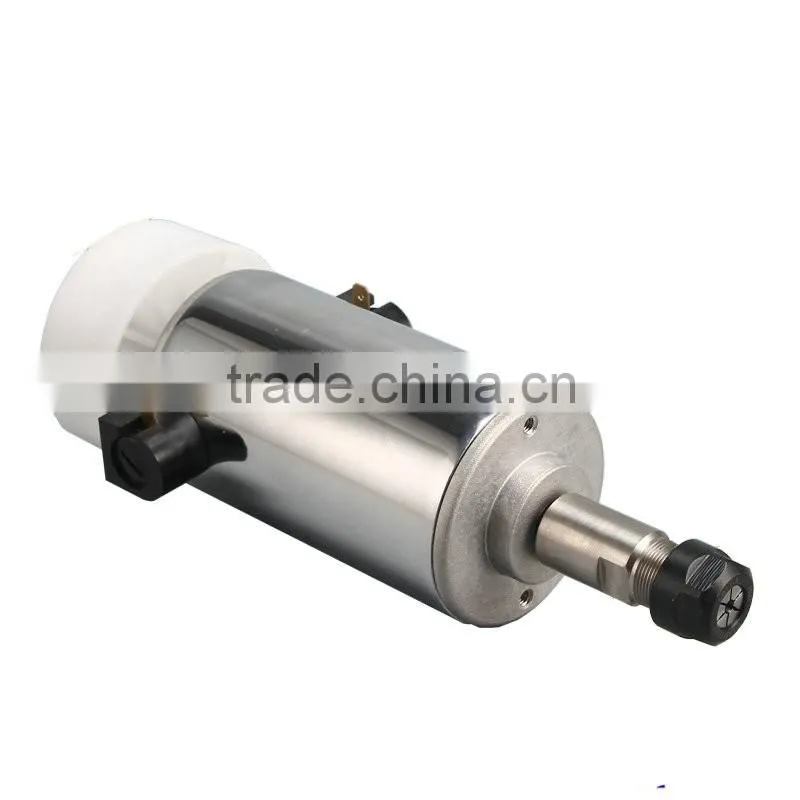

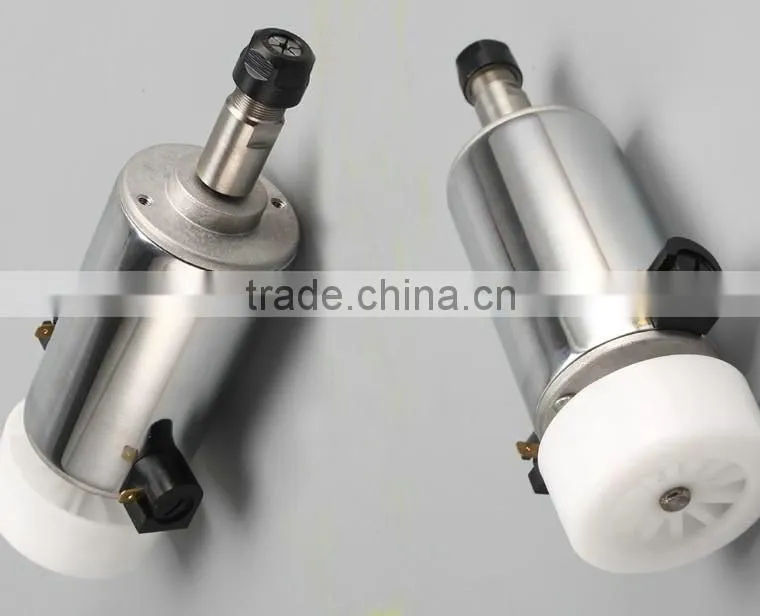

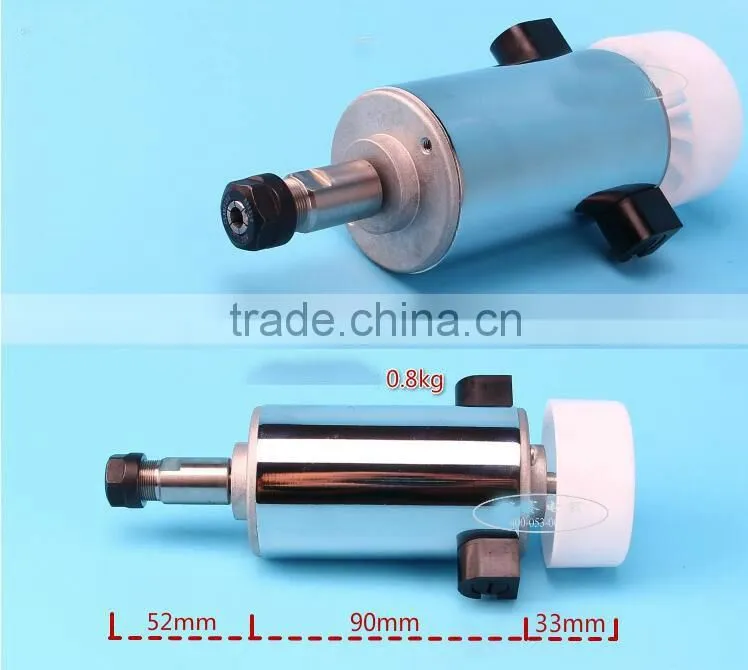

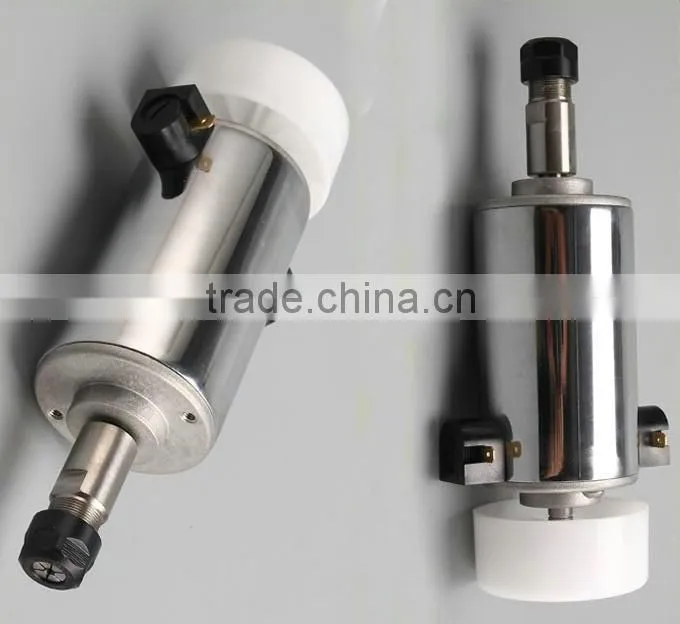

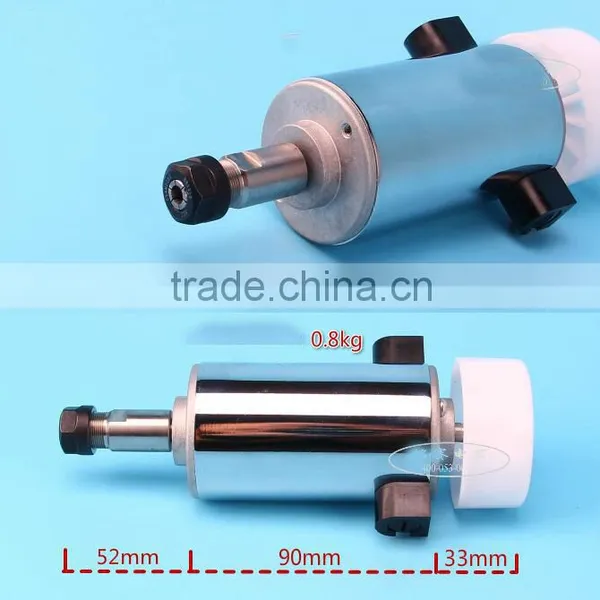

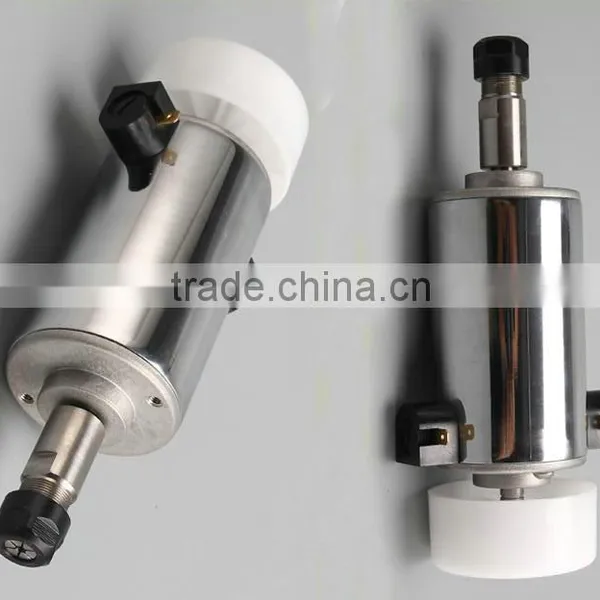

Product photos
Similar 300w air cooled spindle motors
Model | Power | Voltage | Speed | Torque | Cooling | Collet | Dia. | Application |
TOAUTO-DC-300W | 300W | DC12V | 3000rpm | 0.4NM | air cooled | ER11 | 52D | cnc diy carving pcb milling machine |
TOAUTO-DC-300W | 300W | DC24V | 6000rpm | 0.4NM | air cooled | ER11 | 52D | cnc diy carving pcb milling machine |
TOAUTO-DC-300W | 300W | DC48V | 9000rpm | 0.4NM | air cooled | ER11 | 52D | cnc diy carving pcb milling machine |
Delivery details:
1. Item will be shipped out within 1-5 working days by DHL, FedEx, UPS, EMS ASAP. We will choose the best and suitable shipping company. Usually it takes 3-7 working days to most of the country. You will be notified the tracking number once shipped out.
2. International buyers are responsible for any and all customs, duties taxes and brokerage fees to be paid to the courier or government. Please contact your local customs office with further inquiries in this issue. We will not be responsible for with respect to any tariffs, duties, or any and all other charges requested or required by destination countries.
Terms of sales:
1. We accept 14 days return policy. If you want to return the item, please contact us in 14 days first and make sure the package is un-opened. The buyer has to pay for the go and back delivery cost and the custom fee of each country. Once we received the product and checked, we will make refund for the part in 24 hours.
2. We make sure the item is brand new with original package and offer 1 year warranty for the quality.
3. Any quality problem in normal use during the warranty period, We offer free repair. The buyer should pay the return cost and our company will pay the re-shipping cost.
