GDZ93x82-2.2(380V) Toauto 2.2 kw spindle motor for cnc machine
Specification(Air cooled spindle motor)
| Model | Speed | Power | Torque | Voltage | Current | Frequency |
| GDZ93x82-1.5(220V) | 18000rpm | 1.5KW | 0.81NM | 220V | 6.8A | 300Hz |
| GDZ93x82-1.5(380V) | 18000rpm | 1.5KW | 0.81NM | 380V | 3.8A | 300Hz |
| GDZ93x82-2.2(220V) | 18000rpm | 2.2KW | 1.21NM | 220V | 10A | 300Hz |
| GDZ93x82-2.2(380V) | 18000rpm | 2.2KW | 1.21NM | 380V | 5.5A | 300Hz |
| GDZ93x82-3.5(220V) | 18000rpm | 3.5KW | 1.92NM | 220V | 15A | 300Hz |
| GDZ93x82-3.5(380V) | 18000rpm | 3.5KW | 1.92NM | 380V | 8.8A | 300Hz |
| GDZ120x103-4.5 | 18000rpm | 4.5KW | 2.45NM | 380V | 9.5A | 300Hz |
| GDZ120x103-6 | 18000rpm | 6KW | 3.21NM | 380V | 12.6A | 300Hz |
| GDZ120x103-7.5 | 18000rpm | 7.5KW | 380V | 15.5A | 300Hz | |
| GDZ170x150-12 | 18000rpm | 12KW | 380V | 26A | 300Hz | |
| GDZ70X65-350(220V) | 12000rpm | 350W | 220V | 1.8A | 200Hz | |
| GDZ70X65-350(380V) | 12000rpm | 350W | 380V | 1.1A | 200Hz | |
| GDZ70X65-700(220V) | 18000rpm | 700W | 220V | 3.7A | 300Hz | |
| GDZ70X65-700(380V) | 18000rpm | 700W | 380V | 2.2A | 300Hz | |
| GDZ70X65-750 | 18000rpm | 750W | 220V/380V | 3.9/2.3A | 300Hz | |
| GDZ65F-800 | 24000rpm | 800W | 0.33NM | 220V | 4A | 400Hz |
| GDZ80-1.5F | 24000rpm | 1.5KW | 0.91NM | 220V | 5A | 400Hz |
| GDZ80-2.2F(220V) | 24000rpm | 2.2KW | 0.91NM | 220V | 5A | 400Hz |
| GDZ143x133-8 | 12000rpm | 8KW | 6.4NM | 380V | 18A | 200/400Hz |
| GDZ143x133-9(380V Long head) | 12000~24000rpm | 9KW | 6.4NM | 380V | 22A | 200/400Hz |
| GDZ143x133-9(220V Long head) | 12000~24000rpm | 9KW | 6.4NM | 220V | 200/400Hz | |
| GDZ143x133-9(220V short head) | 12000~24000rpm | 9KW | 6.4NM | 220V | 200/400Hz | |
| GDZ143x133-9(380V short head) | 12000~24000rpm | 9KW | 6.4NM | 380V | 22A | 200/400Hz |
Dimension

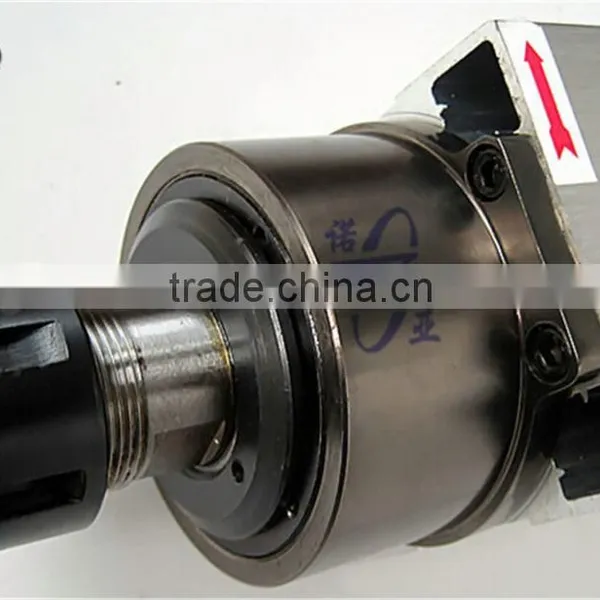

Product photos
Delivery details:
1. Item will be shipped out within 1-5 working days by DHL, FedEx, UPS, EMS ASAP. We will choose the best and suitable shipping company. Usually it takes 3-7 working days to most of the country. You will be notified the tracking number once shipped out.
2. International buyers are responsible for any and all customs, duties taxes and brokerage fees to be paid to the courier or government. Please contact your local customs office with further inquiries in this issue. We will not be responsible for with respect to any tariffs, duties, or any and all other charges requested or required by destination countries.
Terms of sales:
1. We accept 14 days return policy. If you want to return the item, please contact us in 14 days first and make sure the package is un-opened. The buyer has to pay for the go and back delivery cost and the custom fee of each country. Once we received the product and checked, we will make refund for the part in 24 hours.
2. We make sure the item is brand new with original package and offer 1 year warranty for the quality.
3. Any quality problem in normal use during the warranty period, We offer free repair. The buyer should pay the return cost and our company will pay the re-shipping cost.
About us:
Fasttobuy company is one of the biggest online Industrial components wholesaler in Asia, committing itself to build a worldwide supply shop online. Our company was originally set up in Hongkong, China in 2009, aiming to operate the business-to-customer transactions with overseas consumers.Along with the rapid development of electronic business in China,Our IC and LCD product has earned itself a solid reputation for quality.
Our services:
We would provide professional technicial support.
