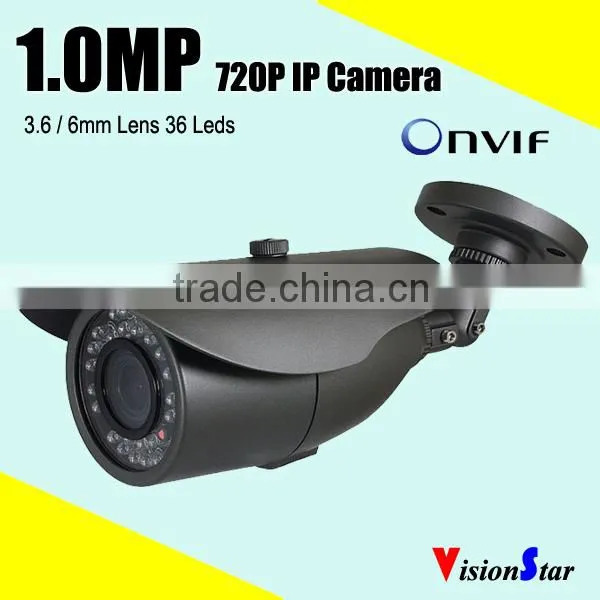

IR Outdoor Security Bullet Waterproof 3.6mm Board Lens 720P 1.0MP CCTV Network IP Camera

Name: IR Outdoor Security Bullet Waterproof 3.6mm Board Lens 720P 1.0MP CCTV Network IP Camera
Brand: Visionstar
SKU: 112775931
Availability: InStock

IR Outdoor Security Bullet Waterproof 3.6mm Board Lens 720P 1.0MP CCTV Network IP Camera thumbnail-1

IR Outdoor Security Bullet Waterproof 3.6mm Board Lens 720P 1.0MP CCTV Network IP Camera photo-1

US$ 18.3 - 19 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Visionstar

Model Number:

VS-W3210A-IP

Contact Supplier Request Quote Chat Now

Shenzhen Vision Star Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Visionstar

Model Number VS-W3210A-IP

Type IP Camera

Style Bullet Camera

Sensor CMOS

Technology NetWork

Special Features Waterproof / Weatherproof

Factory shows

Shenzhen Vision Star Technology Co.,Ltd.,a professional cctv cameras manufacturer,with high quality and competitive price.It located in Shenzhen,Guangdong,China.The main productsare CCTV Camera,AHD CCTV Camera,AHD CCTV Camera,DVR,CCTV Acessories.

Features

1.0MP 720P OV9712 + HI3518E

1. 1.0Megapixels Color Waterproof IP camera

2. 1/4” CMOS Sensor OV9712 + HI3518E, high definition 1280 x 720

3. 3.6/6mm board lens

4. Built-in IR-CUT filter, day night auto switch

5. Advanced H.264 video compression, achieving ultra low bit rate, superb

high-definition picture quality.

6. Support various information superimposed(such as DDNS etc.)

7. Support dural-stream

8. Plug and play, with multiple cloud service

9. Support various mobile monitoring (Iphone, Symbian, Android etc.)

10. Support multiple web browser (IE,Chrome,Firefox,Safari), support 2 users log into at the same time(MAX)

11. Support auto electronic shutter, adapt to different monitoring environment

12. Built-in Web server enables the use of a standard Web browser for viewing and

management

13. Standard ONVIF 2.2, support HVR, NVR connection and storage

Parameter

Camera
Model No.	VS-W3210A-IP
Camera Type	Color IR Waterproof IP Camera
Image Sensor	1.0MegaPixels 1/4” CMOS Sensor OV9712
Main Processor	HI3518E
Resolution	720P
Effective Pixels	1280(H) X 720(V) 1.0MP
Min illumination	Color 0.6Lux F1.2; B/W 0.08Lux F1.2 (IR ON)
Lens	3.6/6mm board lens
IR Led	36pcs ir leds
IR Distance	30M
Day / Night	Built-in IR-CUT filter, Day / Night Auto Switch
S/N Ratio	≥39db(AGC OFF)
Compression Standard
Compression Format	H.264/MJPEG
Main Stream	1280*720, 1-25FPS
Sub Stream	704*576, 1-6FPS
Sub Stream	320*240, 1-25FPS
Compression Rate	32 Kbps~16Mbps Continuously adjustable,support CBR/VBRs
Subtitle Overlay	Support Channel Name, Date/Time, Stream information Overlay, position is adjustable
Network &Storage
Storage	Network, HVR, NVR
Video Recording	Manual, Auto( Loop, Timer, Alarm, Motion Detection)
Alarm	FTP, E-mail, IE, CMS software
Support Protocol	TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP,NTP,PPPOE,SMTP, UPNP
Onvif	Standard Onvif 2.2
Remote View	Support remote view by IE6.0 or above browser (Built-into Web server), support 2 users log into at the same time(MAX)
Mobile View	Support Windows Mobile, iPhone, iPad, Android system
Interface
Ethernet	10M / 100M mbps Ethernet (RJ-45)
General standard
Temperature and Humidity	-10°C~50°C, humidity less than 95%(no condensation)
Power Supply	DC12V±10% / PoE(optional)
Dimension(mm)	228mm(L)x97mm(W)x84mm(H)
Weight	0.6KG

Delivery

We use a color box for camera, then use another carton box to pack it carefully. Our shipping time is 3-5 working days, by DHL, UPS, TNT, Fedex, EMS or Aramex. The price not including any tax rate caused in destination country's Customs.

Service

Each item will be tested and checked before shipping, for any problems after you received,such as damage, defective, please contact us immediately for helping, and please don't heasitate to contact us for any unsatisfyingbefore you open a dispute, we will try our best to offer you a reasonable solution.

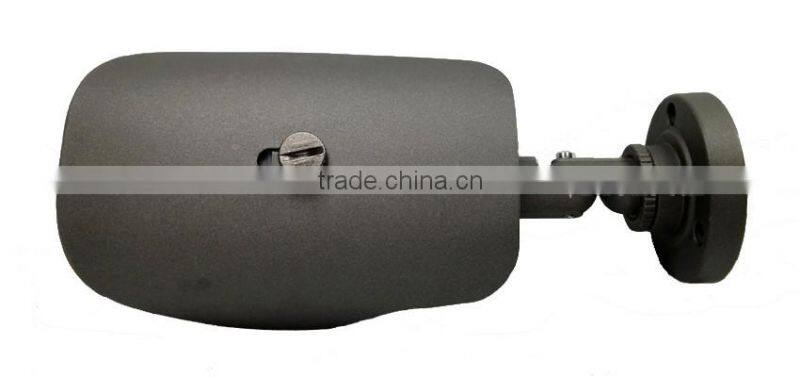

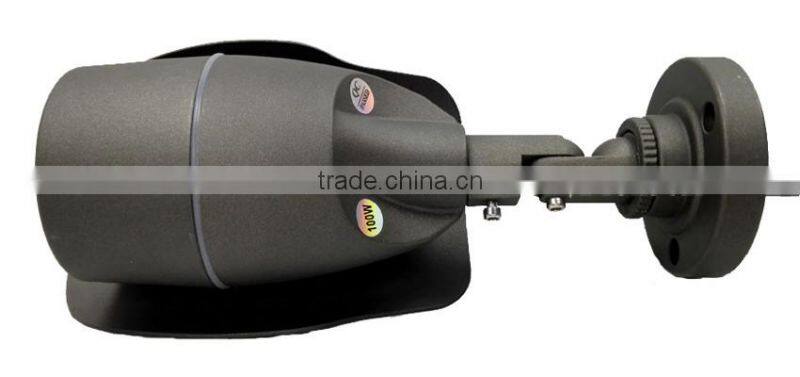

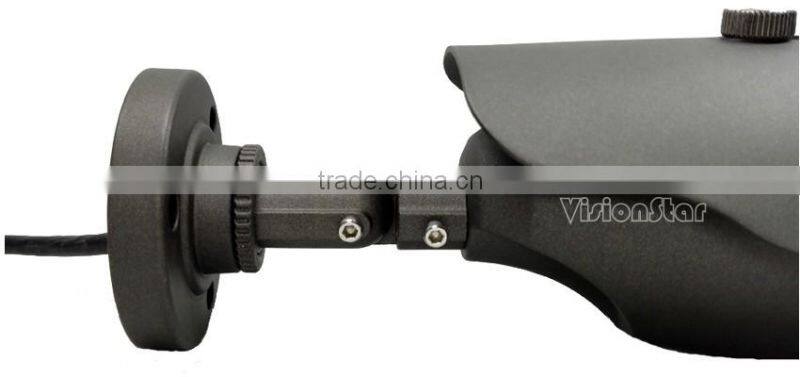

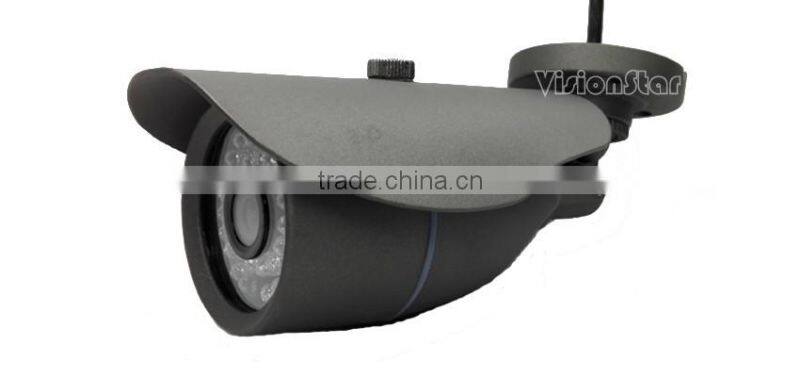

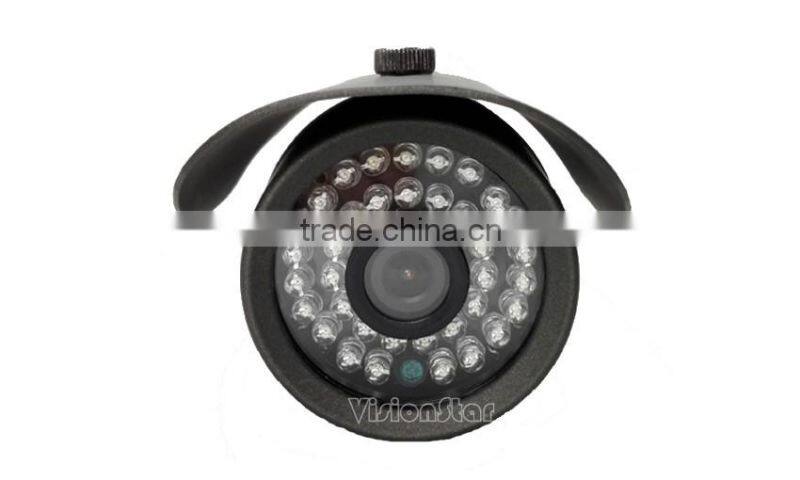

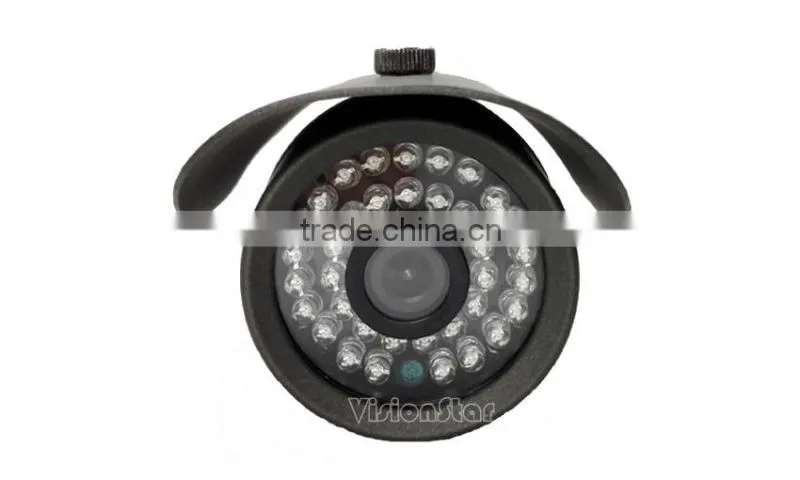

Product shows
