2.8 inch QVGA 240*320 TFT mini hd LCD panel, Tiamma coverglass
- 500000 Piece / Pieces per Month
- HK
-
negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
-
digital fire alarm installation module display, HTN segment display with blue led lcd panel
-
negative autoreclose circuit-breaker lcd display, segment module with blue led
-
charger negative character lcd display,white led ,battery segment small flexible display
-
character small charger lcd display ,custom battery display ,white led
-
segment positive temperature time clock lcd display,blue TN white backlight
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | CDTech | Model Number: | S028Q02 tft display |
| Type: | Other, TFT, 2.8 inch tft display |
Product Description
Gneral specifications
Feature | Spec | |
Characteristics | Size | 2.8inch |
Resolution | 240(horizontal)*320(Vertical) | |
Interface | MCU-18/16/9/8Bit RGB-18Bit | |
Connect type | Connector | |
Color Depth | 65k | |
Technology type | a-Si | |
Display Spec. Pixel pitch (mm) | 0.18 x 0.18 | |
Pixel Configuration | R.G.B. Vertical Stripe | |
Display Mode | Normally White | |
Driver IC | ILI9341 | |
Surface Treatment | 3H | |
Viewing Direction | 6 O’clock | |
Mechanical | LCM (W x H x D) (mm) | 50.0*69.2*2.55 |
Active Area(mm) | 43.2*57.6 | |
With /Without TSP | With outTSP | |
Weight (g) | TBD | |
LED Numbers | 4 LEDs | |

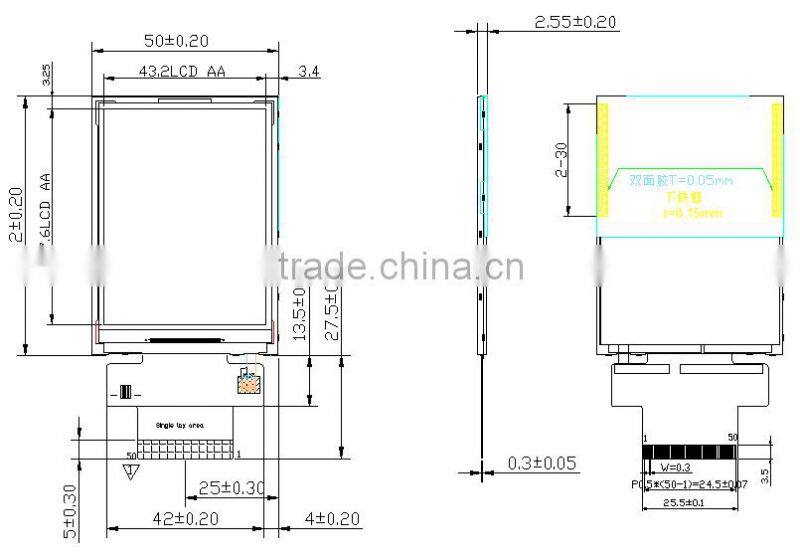

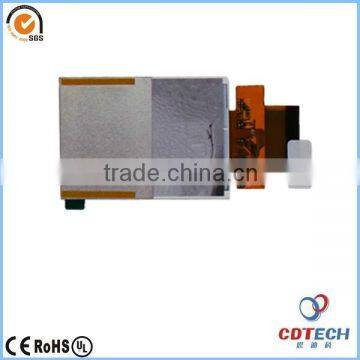

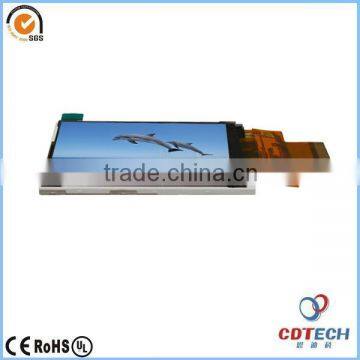

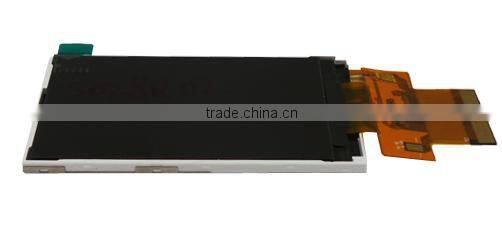

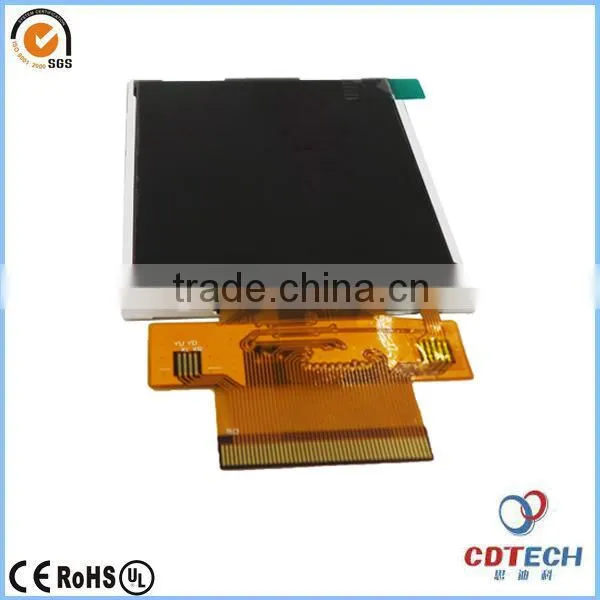

Drawing and images show
Packaging
1. Put module into tray cavity.
2. Tray stacking .
3. Put 1 cardboard under the tray stack and 1 cardboard above.
4. Fix the cardboard to the tray stack with adhesive tape.
5. Put the tray stack into carton.
6. Carton sealing with adhesive tape.
Shipping
Application
| Application of TFT LCD Display | |
| Consumer Products | Camera,DVD player,toy,gam player,etc |
| Technical Equipment | Elevator controller,Industrial machine,etc |
| Office Automation | Printer,scanner,attendance machine,fax machine,etc |
| Home Appliances | Air-condition display,refrigerator,electric cooker,video doorbell,etc |
| Automobile | GPS,video player,speedometer,audio broadcast,etc |
| IT Products | Camera,handheld digital video,projector,media play,tablet PC,etc |
| Medical Equipment | Ultrasound machine,therapeutic equipment, Blood pressure meter,etc |
All the descriptions correspond with the goods
Contact us
CDTech (H.K.) Electronics Limited
Website:
Tel: 86-755-23032206
Fax: 86-755-23032209
E-mail: sales@CDTechHK.com
Any questions pls do not hesitate to contact me anytime!!
FAQ:
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1PC.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for
your second confirmation. if sample is ok, finally we will go to mass production.
More information needed, please feel free to contact me. Thanks for your visiting and wish we could cooperate soon.
The best services will be assured at soon!!!
