Gneral specifications
Characteristics |
Size |
5inch |
Resolution |
800(horizontal)*480(Vertical) |
|
Interface |
RGB-24bit |
|
Connect type |
Connector |
|
Color Depth |
16.7M |
|
Technology type |
a-Si |
|
Display Spec. Pixel pitch (mm) |
0.135 x 0.135 |
|
Pixel Configuration |
R.G.B. Vertical Stripe |
|
Display Mode |
Normally White |
|
Driver IC |
HX8264-D+HX8664-B |
|
Surface Treatment |
3H |
|
Viewing Direction |
12 O’clock |
|
Mechanical |
LCM (W x H x D) (mm) |
120.7*76.3*4.2 |
Active Area(mm) |
108 x64.8 |
|
With /Without TSP |
With TSP |
|
Weight (g) |
TBD |
|
LED Numbers |
12 LEDs |

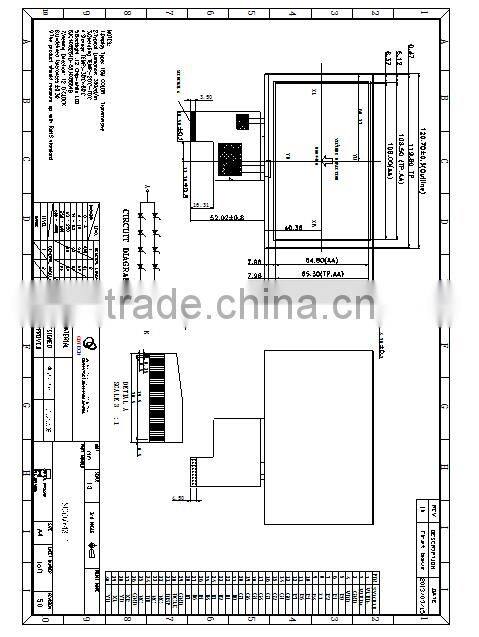

Drawing for Professional color lcd display module with good qualit

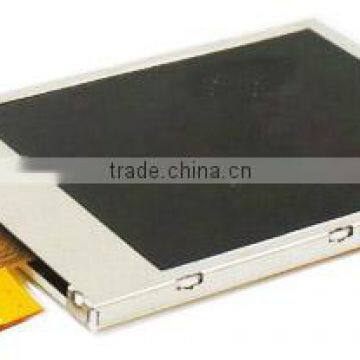

Product show
Packaging Details: Carton size:385X155X227 mm ,300 pcs one carton
Delivery Time:3-5 weeks
Our advantage of LCD Monitor
| 1 | FOG automatical device can ensure the capacity of 1000,000 per month. |
| 2 | MOQ can be 100pcs, lead time of standard products is 20 days. |
| 3 | Reliability test and full examination to ensure the high quality of the display. |
| 4 | OEM&ODM are provided for TFT/TN LCD/Plastic Moulding. |
| 5 | Strictly ISO quality management system. |
| 6 | Mature and Professional R&D and after service. |
| 7 | Various cooperation experience with big brands. |
General Business Claused
| 1 | MOQ: | 100pcs |
| 2 | L/T: | Samples in stocks,2-4 weeks for mass TFT LCD Display Screen |
| 3 | Trade Terms : | FCA HK |
| 4 | Payment: |
100% paypal in advanc for samples , 50% T T in advance and 50% before delivery for mass production |
| 5 | Warranty: | 12 months |
| 6 | Package: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
