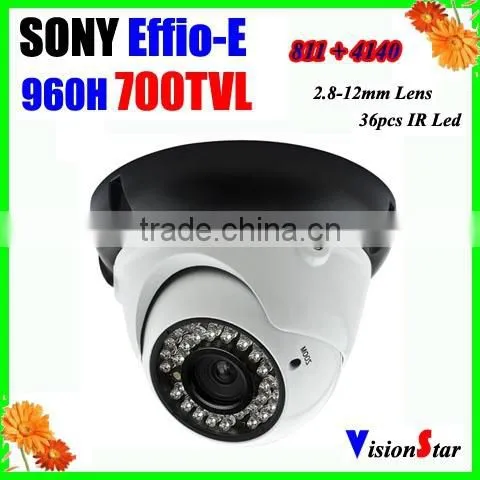

700TVL WDR Camera With 36pcs IR Leds Varifocal Lens CCTV Camera 2.8-12mm Infared Camera

700TVL WDR Camera With 36pcs IR Leds Varifocal Lens CCTV Camera 2.8-12mm Infared Camera thumbnail-1
700TVL WDR Camera With 36pcs IR Leds Varifocal Lens CCTV Camera 2.8-12mm Infared Camera photo-1
US$ 25.17 - 33.37 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Vision star
Model Number:
VS-V3172IR
Contact Supplier Request Quote Chat Now
Shenzhen Vision Star Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Vision star
Model Number VS-V3172IR
Type Analog Camera
Style Dome Camera
Sensor CCD
Technology Infrared
Special Features Vandal-proof





Your Satisfaction is our pursuit

Welcome to

http://visionstar.en.china.cn/ /store/1836019



 Company Information



Shenzhen Vision Star Technology Co.,Ltd., a professional cctv cameras manufacturer, with high quality and competitive price. It located in Shenzhen, Guangdong, China. The main products are CCTV Camera, AHD CCTV Camera, DVR, CCTV Acessories.



 Product Description





700TVL WDR Camera with 36pcs IR Leds Varifocal Lens CCTV Camera 2.8-12mm Infared Camera


  • Color Vandalproof Dome IR Camera;
  • 1/3" Sony Super HADII CCD (ICX810/1AKA);
  • DSP: Sony Effio-E CXD4140GG;
  • Ultra High Resolution 700TVL, 0.01Low Lux;
  • 2D&3D-DNR, Sense-up, Defog;
  • OSD /BLC /Motion Detection /Privacy Masking;
  • 36pcs F5 IR-LED, IR Range more than 30M;
  • 2.8-12mm varifocal lens ( 2Mega Pixels );
  • OSD Languages: Chinese,English,Japanese,French,Portuguese,German,Russian,Spanish.



700TVL WDR Camera with 36pcs IR Leds Varifocal Lens CCTV Camera 2.8-12mm Infared Camera







Model No.

VS-V3172IR

Camera Type

Color Dome IR Camera

Image Sensor

1/3"SONY Super HAD CCDⅡ

Effective Pixels

PAL:976(H) x 582(V)570K

NTSC:976(H) x 494(V)480K

Signal System

PAL /NTSC

Horizontal Resolution

700 TV Lines

Min. Illumination

0.01 LUX/F1.2

Lens Mount

2.8-12mm Lens/F1.4

Iris Control

 Auto/Manual

S/N

≥52Db (AGC OFF)

OSD Menu

Support

Language

8 languages  (EN, FR, DT, ES, POR, CN, RCN, RUS,JP)

White Balance

Push/User/Antic/Manual/Push lock/ATW

Picture Adjust

Mirror/Brightness/Contrast/Sharpness/HUE/Gain

ATR

Yes

Motion Detection

Yes

Privacy Mask

4 masks

Day & Night

Color / B/W / Auto

Noise Reduction

2D-NR

HLC

Yes

AFD

Yes

SYNC

Internal

Shutter

PAL:1/60(Sec.)~1/100,000(Sec.);
NTSC: 1/50(Sec.)~1/100,000(Sec.)

Infrared Luminary

36pieces IR-LED

Infrared Wavelength

850 nm

Illuminate Distance

More than 30M

Waterproof Criterion

no

I/O Connector

Power : DC Power Jack , Video Output : BNC

Video Output Level

1.0 Vp-p (75 Ohms, composite)

Supplied Voltage

DC12V Voltage

Power Consumption

IR On: 280mA max., IR Off: Less than 130mA

Dimensions

110 x 80mm

Weight

Approx.0.65kg







Product Display




Top Sell IP66 Waterproof CCTV Camera, Vandalproof Camera, Plastic Camera, Box Camera and Mini Camera

Relative Products

Sony Effio-E 960H 700TVL Dome Camera

700TVL WDR Camera with 36pcs IR Leds Varifocal Lens CCTV Camera 2.8-12mm Infared Camera

   Sony Effio-E 960H 700TVL Waterproof Camera

CXD4140GG+ICX 810/1AKA

700TVL WDR Camera with 36pcs IR Leds Varifocal Lens CCTV Camera 2.8-12mm Infared Camera



  Packing & Shipping



700TVL WDR Camera with 36pcs IR Leds Varifocal Lens CCTV Camera 2.8-12mm Infared Camera



We use a color box for camera, then use another carton box to pack it carefully. Our shipping time is 3-



5 working  days,by DHL, UPS, TNT, Fedex, EMS or Aramex. The price not including any tax rate



caused in  destination country's Customs.



Our Service



700TVL WDR Camera with 36pcs IR Leds Varifocal Lens CCTV Camera 2.8-12mm Infared Camera



We offer 2 years warranty, during this period, for any quality problems please contact us for solving. And we



offer life-time technicial supportings. We tested each camera before shipping, if you found any problems after



received, please contact us immediately. We are trying every effort to keep new progress, we promise to offer



the users high quality products and excellent service. We look forward to establish a long-term business



relationship with you based on integrity and honesty.
