8 inch TFT LCD display with 1024x768 resolution 1000cd/m2 high brightness 4/3 aspect ratio S080XG04H
USD $80 - $90
/ Piece
1 Piece(Min.Order)
- 500000 Piece / Pieces per Month
- HK
You May Like
-
Digital thermometer hygrometer used for travelling weather station pocket type
-
Wireless Atomic Table Clock, Thermometer/Display In/Out Temperature, Blue/Green Backlight Selectable
-
Weather Station Clock with Forecast/Desk/Digital Clock with in/Outdoor Temperature and Humidity
-
Wired Weather Station/Desk/Digital Clock with In/Outdoor Temperature Display
-
MAX / MIN Temperature And Humidity Automatic Memory Digital Thermometer Hygrometer
-
Atomic Projection Desk Clock with Indoor Temperature and Big Character Display
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | CDTech | Model Number: | S080XG04H |
| Type: | TFT |
Product Description
CDTech is a manufacture in mainland China, specializing in custom-made TFT LCD module, RTP, CTP and HMI solutions. The size is from 1.44 inch to12.3 inch, widely used in car display system, medical equipment, industrial application and many other household appliances and handheld devices.
With over 6 years running, we have numerous satisfied and repeated customers; Philips, Devilbiss, Midea Group, CHIGO Group, Harman Kardon, ABB, Micronet etc. are our cooperative partners.
8 inch TFT LCD display Specification:
Characteristics | Size | 8.0 inch |
| Resolution | 1024(horizontal)*768(Vertical) |
| Glass Maker | Innolux |
| Interface | LVDS |
| Connect type | Connector |
| Color Depth | 16.7M |
| Technology type | a-Si |
| Pixel pitch (mm) | 0.1583*0.1583 |
| Pixel Configuration | R.G.B. Stripe |
| Display Mode | Normally Black |
| Driver IC | TBD |
| Luminance | 1000 nits |
| Viewing Direction | All |
| Gray Scale Inversion Direction | All |
Mechanical | LCM (W x H x D) (mm) | 183*141*6.15 |
| Active Area(mm) | 162.05*121.54 |
| With /Without TSP | Without |
| Weight (g) | 169 g |
| LED Numbers | 27LEDs(3S9P) |

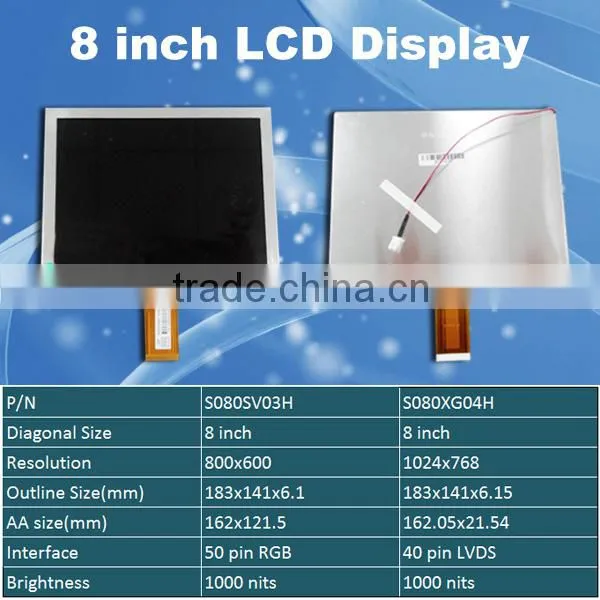

8 Inch sunlight readable LCD module Product pictures
CDTech Product list
| P/N | Size | Resolution | P/N | Size | Resolution |
| S032HV04 | 3.2" | 320*480 | S035VR14-T | 3.5" | 480*640 |
| S035Q01 | 3.5" | 320*240 | S035HV09 | 3.5" | 320*480 |
| S035Q01-T | 3.5" | 320*240 | S035HV09H | 3.5" | 320*480 |
| S035Q03-T | 3.5" | 320*240 | S035HV12 | 3.5" | 320*480 |
| S035Q08-T | 3.5" | 320*240 | S035HV13 | 3.5" | 320*480 |
| S035Q09 | 3.5" | 320*240 | S035HV13H | 3.5" | 320*480 |
| S035Q09-CTP | 3.5" | 320*240 | S039WQ01 | 3.9" | 480*128 |
| S035Q13-T | 3.5" | 320*240 | S040WV04 | 3.95" | 480*800 |
| S035Q24 | 3.5" | 320*240 | S042WQ01 | 4.2" | 240*432 |
| S035LQNC111 | 3.5" | 320*240 | S043WQ02 | 4.3” | 480*272 |
| S035LQNC111-CT | 3.5" | 320*240 | S043WQ07 | 4.3” | 480*272 |
| S035LQNC211 | 3.5" | 320*240 | S043WQ08 | 4.3” | 480*272 |
| S035LQNC116 | 3.5" | 320*240 | S043WQ09 | 4.3” | 480*272 |
| S035V01 | 3.5" | 480*640 | S043WQ018HB | 4.3” | 480*272 |
| S035V01-T | 3.5" | 480*640 | S043WQ15 | 4.3” | 480*272 |
| S035V03 | 3.5" | 480*640 | S043WQ21 | 4.3” | 480*272 |
| S035V03-T | 3.5" | 480*640 | S043WQ24 | 4.3” | 480*272 |
| S035V04 | 3.5" | 480*640 | S043WQ24H | 4.3” | 480*272 |
| S035V04-T | 3.5" | 480*640 | S043WQ26H | 4.3” | 480*272 |
| S035VR10 | 3.5" | 480*640 | S043WQ26H-CT6 | 4.3” | 480*272 |
| S035VR10-T | 3.5" | 480*640 | S043WQ28 | 4.3” | 480*272 |
| P/N | Size | Resolution | P/N | Size | Resolution |
| S043WQ36H | 4.3” | 480*272 | S050WV43-CT5 | 5.0" | 800*480 |
| S043WQ40H | 4.3” | 480*272 | S056V01 | 5.6" | 640*480 |
| S043WQ49 | 4.3” | 480*272 | S057Q01 | 5.7" | 320*240 |
| S043WQ55 | 4.3” | 480*272 | ma | 5.7" | 640*480 |
| S043WQ56 | 4.3” | 480*272 | S057V02 | 5.7" | 640*480 |
| S043WQ56H | 4.3” | 480*272 | S057V03 | 5.7" | 640*480 |
| S043WQ56HS | 4.3” | 480*272 | S058WV01 | 5.8" | 800*320 |
| S043WV07 | 4.3” | 800*480 | S060FW03 | 6.0" | 480*854 |
| S046WV01 | 4.6" | 800*320 | S065WV01 | 6.5" | 800*320 |
| S046WV02 | 4.6" | 800*320 | S065WV02 | 6.5" | 800*320 |
| S046WV03 | 4.6" | 800*320 | S070WV20 | 7.0" | 800*480 |
| S050WQ06 | 5.0" | 480*272 | S070WV83 V.1 | 7.0" | 800*480 |
| S050WQ06-T | 5.0" | 480*272 | S070WV83 V2.0 | 7.0" | 800*480 |
| S050WQ06-CT | 5.0" | 480*272 | S070WV84 | 7.0" | 800*480 |
| S050WQ07 | 5.0" | 480*272 | S070WV85-CT8 | 7.0" | 800*480 |
| S050WV02 | 5.0" | 800*480 | S070WV92 | 7.0" | 800*480 |
| S050WV06 | 5.0" | 800*480 | S070WV94 | 7.0" | 800*480 |
| S050WV07 | 5.0" | 800*480 | S070WV94H | 7.0" | 800*480 |
| S050WV43 | 5.0" | 800*480 | S070WV95/97 | 7.0" | 800*480 |
| S050WV44 | 5.0" | 800*480 | S070WV98 | 7.0" | 800*480 |
| S050WV44H | 5.0" | 800*480 | S070WV101 | 7.0" | 800*480 |
| S050WV43-T | 5.0" | 800*480 |
| P/N | Size | Resolution | P/N | Size | Resolution |
| S070WS03 | 7.0" | 1024*600 | S101WS09 | 10.1 | 1024*600 |
| S070WS08 | 7.0" | 1024*600 | S101WX06 | 10.1 | 1280*800 |
| S070WS12 | 7.0" | 1024*600 | S101FH01 | 10.1 | 1280*800 |
| S070WS14 | 7.0" | 1024*600 | CDT101PUW1-A00/S101WU01 | 10.1 | 1920*1200 |
| S070WX02 | 7.0" | 800*1280 | S091WX02 | 10.1 | 1920*480 |
| S070WU01 | 7.0" | 1200x1920 | S104V01 | 10.4" | 800*600 |
| S072WX01 | 7.2 | 1280*384 | S104SX01 | 10.4" | 800*600 |
| S080SV01 | 8.0" | 800*600 | S104SX02 | 10.4" | 800*600 |
| S080SV03H | 8.0" | 800*600 | G104VN01 V1 | 10.4" | 640*480 |
| S080SV04H-L | 8.0" | 800*600 | S104XG01 | 10.4" | 1024*768 |
| S080SV05H | 8.0" | 800*600 | S104XG02 | 10.4" | 1024*768 |
| S080XG04 | 8.0" | 1024*768 | S104SV05H | 10.4" | 800*600 |
| S080XG04H V2 | 8.0" | 1024*768 | S088WX03 | 10.8 | 1280*320 |
| S072WX02 | 8.2 | 1280*384 | S088WU02 | 11.8 | 1920*480 |
| S088WX01 | 8.8 | 1280*320 | S121SDS01 | 12.1" | 800*600 |
| S090WV02 | 9.0" | 800*480 | S121WX03 | 12.1" | 1280*800 |
| S091WX01 | 9.1 | 1920*480 | S123WU01 | 12.3" | 1920*720 |
| S072WX03 | 9.2 | 1280*384 | S150XG01 | 15.0" | 1024*768 |
| S088WX02 | 9.8 | 1280*320 | S170XG01 | 17" | 1024*768 |
| S101WS07 | 10.1 | 1024*600 | S190XG01 | 19" | 1024*768 |
| S101WS08 | 10.1 | 1024*600 | M220ZGE-L20 | 22" | 1680*1050 |
Packing
Trade terms
| Payment | 100% paypal in advance for samples , 50% deposit T/T in advance and 50% remaining T/T before delivery for mass production |
| Lead time | around 4 weeks after the payment confirmed |
| Shipment | Support Fedex, UPS, TNT, DHL,EMS etc. air and ocean shipping are available |
| Warranty | 1 year |
| Samples | We supply samples, with the cost, the shipping fee and the tax paid by buyer |
CDTech Workshop
CDTech Exhibiton
CDTech Sale Volume
For more detailed information, please feel free to contact me,Thanks!
CDTech (H.K.) Electronics Limited
Tel: 86-755-23032202
Fax: 86-755-23032202-808
Website:
Contact Us
- Shenzhen CDTech Electronics Limited
- Contact nameHuang Haocheng
- Phone86-0755-23058122
- Address7F, Bldg 5, Chaxi Industrial Park, Huafeng 1st Technology Park, Gushu, Bao'an District, Shenzhen518126, China Shenzhen,Guangdong
