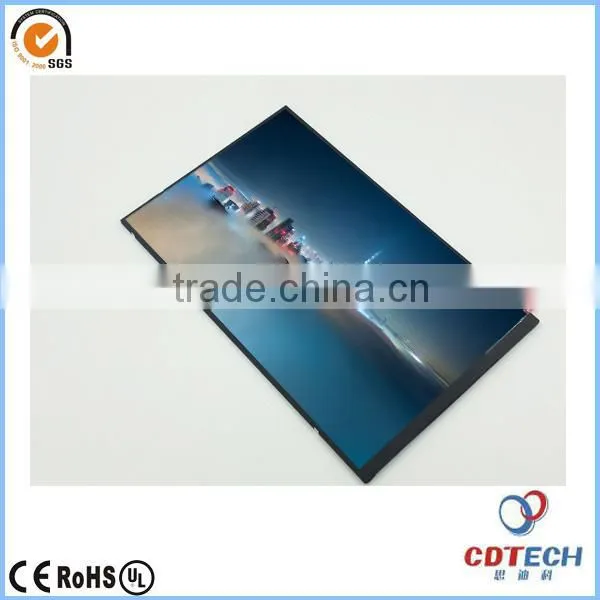

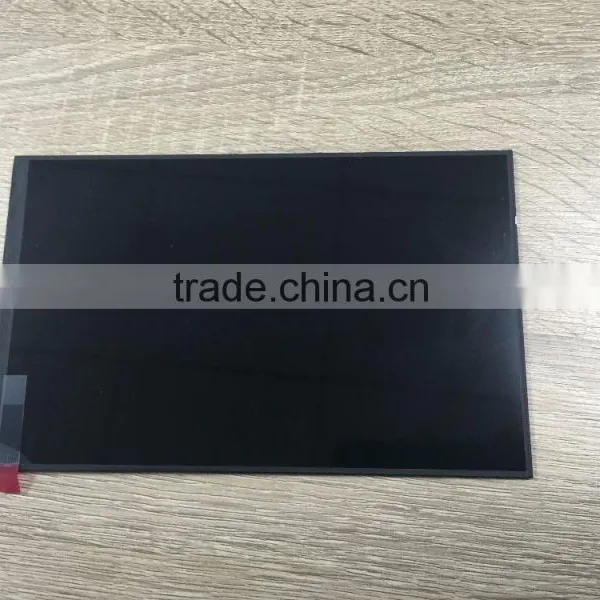

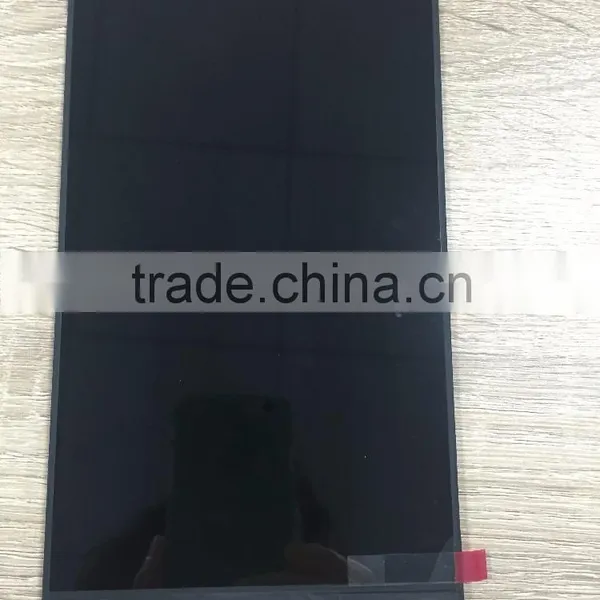

high quality 8.0 inch 800*1280 lcd type panel MIPI interface tft lcd screen in full view angle- stork supply
- 1000 Piece / Pieces per Month
- HK
- T/T L/C D/P D/A Credit Card PayPal
- Digital thermometer hygrometer used for travelling weather station pocket type
- Wireless Atomic Table Clock, Thermometer/Display In/Out Temperature, Blue/Green Backlight Selectable
- Weather Station Clock with Forecast/Desk/Digital Clock with in/Outdoor Temperature and Humidity
- Wired Weather Station/Desk/Digital Clock with In/Outdoor Temperature Display
- MAX / MIN Temperature And Humidity Automatic Memory Digital Thermometer Hygrometer
- Atomic Projection Desk Clock with Indoor Temperature and Big Character Display
Product Details
Place of Origin: | Guangdong, China | Brand Name: | CDTech | Model Number: | S80WX01 |
Type: | TFT |
Product Description
high quality 8.0 inch 800*1280 lcd type panel MIPI interface tft lcd screen in full view angle- stork supply
General Specifications
Feature | Spec | |
Characteristics | Size | 8.0 inch |
Resolution | 800(horizontal)*1280(Vertical) | |
Glass Maker | TBD | |
Interface | Mipi | |
Connect type | Connector | |
Display Colors | 262k | |
Technology type | a-Si | |
Pixel pitch (mm) | 0.13455 (H) x 0.13455 (V) | |
Pixel Configuration | R.G.B. Stripe | |
Display Mode | Normally Black | |
Driver IC | TBD | |
Luminance | 300 nits | |
Viewing Direction | ALL | |
Gray Scale Inversion Direction | ALL | |
Mechanical | LCM (W x H x D) (mm) | 114.58*184.09*2.6 |
Active Area(mm) | 107.64*172.22 | |
With /Without TSP | Without | |
Weight (g) | TBD | |
LED Numbers | 18LEDs(3S6P)
|
Drawing for high quality 8.0 inch 800*1280 lcd type panel MIPI interface tft lcd screen in full view angle- stork supply
Packaging Details: Carton size:385X155X227 mm ,60 pcs one carton
Delivery Time:3-5 weeks
1. Custominzed TFT module.
2. Do OEM &ODM fro TFT LCD Module pannel.
3. Good quality and quick reply.
Basic information
1.Was found in 2009, 8000 square meters
2.Strong R&D , do OEM & ODM
3.Customer Group : Hardon, HITACHI, ABB Group , Midea Group, CHIGO Group, QSC etc.
4.All goods we export will pass strict international AQL inspection
5. Professional in TFT LCD, HMI and custominzed TFT module
Our Advantages for LCD pannel
1 | FOG automatical device can ensure the capacity of 1000,000 per month. |
2 | MOQ can be 100pcs, lead time of standard products is 20 days. |
3 | Reliability test and full examination to ensure the high quality of the display. |
4 | OEM&ODM are provided for TFT/TN LCD/Plastic Moulding. |
5 | Strictly ISO quality management system. |
6 | Mature and Professional R&D and after service. |
7 | Various cooperation experience with big brands |
Contact us:
CDTech (H.K.) Electronics Limited
Tel: 86-755-23032206
Fax: 86-755-23032209
Website:
Address: 7F, Blgd 5, Chaxi Industrial Park, Huafeng 1st Technology Park,
Gushu, Bao'an District, Shenzhen518126, China
1. Can you support us with CTP’s? G+G? or OGS-CTP?
Yes, we can support, G+G and the OGS both is OK.
2. How you will glue the TFT to the OGS? By OCA or DST?
OCA and DST both OK, it depends on the customer.
