Gneral specifications
|
Characteristics
|
Size |
3.5inch |
Resolution |
320(horizontal)*240(Vertical) |
|
Interface |
RGB-24Bit |
|
Connect type |
Connector |
|
Color Depth |
16.7M |
|
Technology type |
a-Si |
|
Display Spec. Pixel pitch (mm) |
0.219 x 0.219 |
|
Pixel Configuration |
R.G.B. Vertical Stripe |
|
Display Mode |
Normally White |
|
Driver IC |
HX8238D |
|
Surface Treatment |
HC |
|
Viewing Direction |
12 O’clock |
|
|
Mechanical
|
LCM (W x H x D) (mm) |
76.90*63.9*3.26 |
Active Area(mm) |
70.08 x 52.56 |
|
With /Without TSP |
Without TSP |
|
Weight (g) |
TBD |
|
LED Numbers |
6 LEDs |

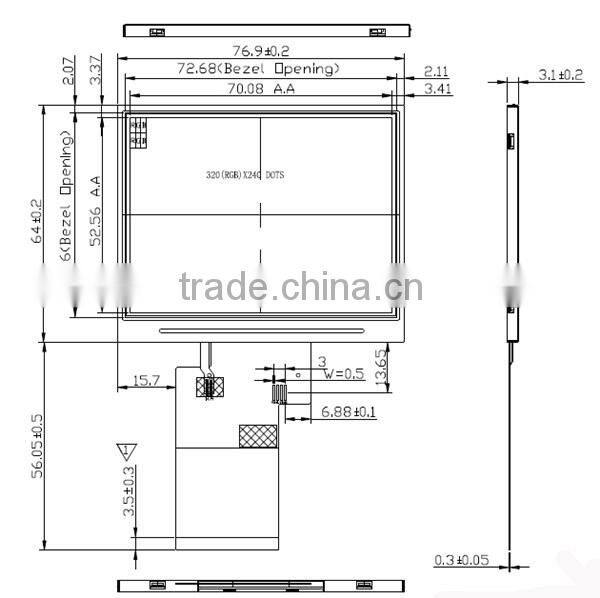

Drawing for Hot selling 3.5 inch tft panel transparent lcd display
Picture for Hot selling 3.5 inch tft panel transparent lcd display
Packaging Details: Carton size:385X155X227 mm ,300 pcs one carton
Delivery Time:3-5 weeks
1. Custominzed transparent lcd display
2. Do OEM &ODM fro TFT LCD Module pannel.
3. Good quality and quick reply.
Basic information
1.Was found in 2009, 8000 square meters
2.Strong R&D , do OEM & ODM
3.Customer Group : Hardon, HITACHI, ABB Group , Midea Group, CHIGO Group, QSC etc.
4.All goods we export will pass strict international AQL inspection
5. Professional in TFT LCD, HMI and custominzed transparent lcd display
The Exhibiton that we attend
Sale Volume
Contact us:
CDTech (H.K.) Electronics Limited
Tel: 86-755-23032206
Fax: 86-755-23032209
E-mail: sales@CDTechHK.com
Website:
http://cdtechhk.en.china.cn/
Address: 7F, Blgd 5, Chaxi Industrial Park, Huafeng 1st Technology Park,
Gushu, Bao'an District, Shenzhen518126, China
1. Can you support us with CTP’s? G+G? or OGS-CTP?
Yes, we can support, G+G and the OGS both is OK.
2. How you will glue the TFT to the OGS? By OCA or DST?
OCA and DST both OK, it depends on the customer.
3. Whis is your MOQ?
At the beginning, 100 pcs is OK.
4.What is your Leave time?
Samples in stocks,2-4 weeks for mass TFT LCD Display Screen.
5.What is your payment Terms?
100% paypal in advanc for samples,
30% T T in advance and 70% before delivery for mass production.
6. What is your warranty?
It is 12 month.
