GDZ65-800 Toauto 24000rpm 800w Spindle Motor for Woodworking Machine

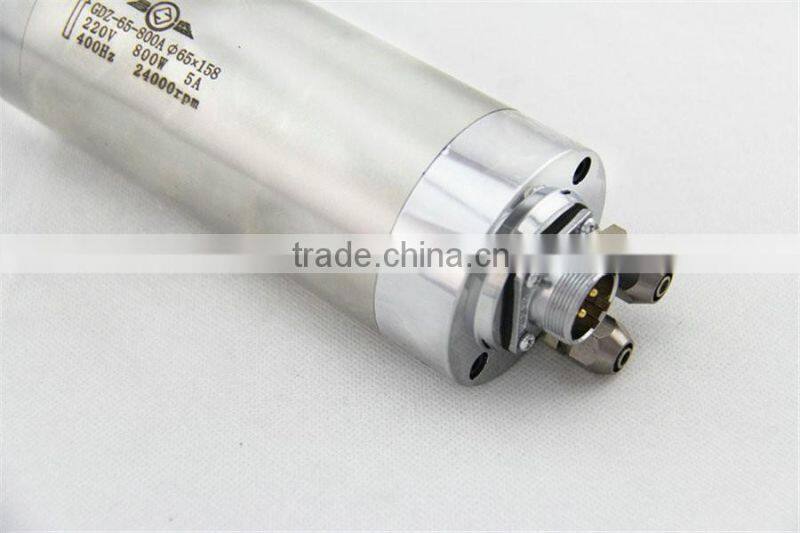

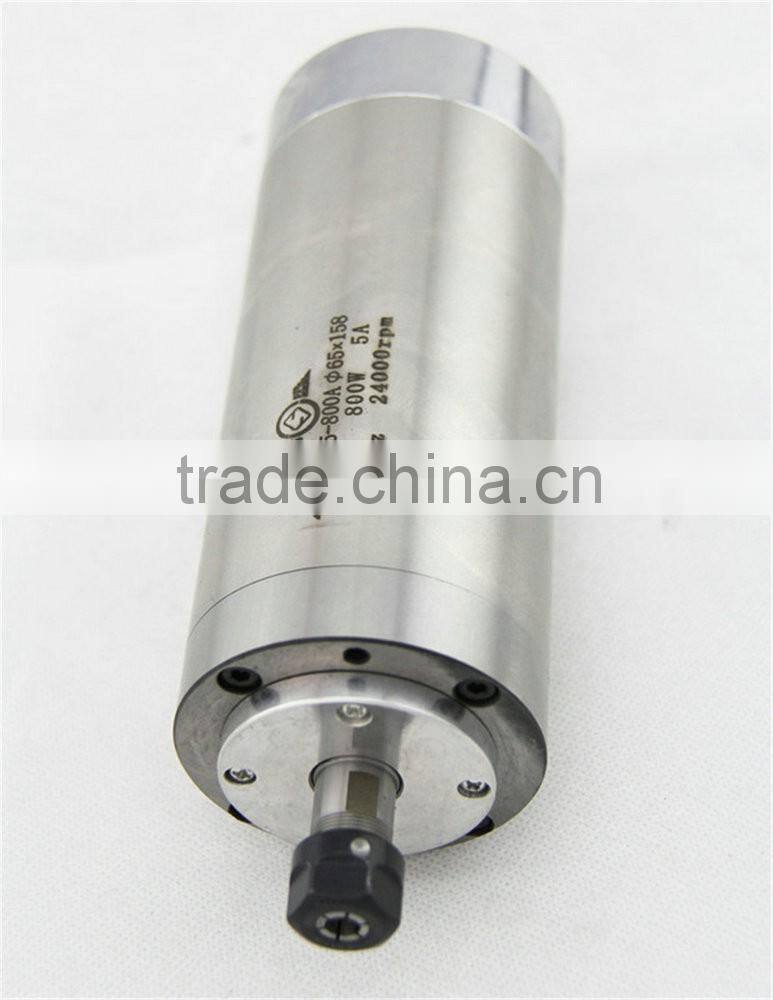

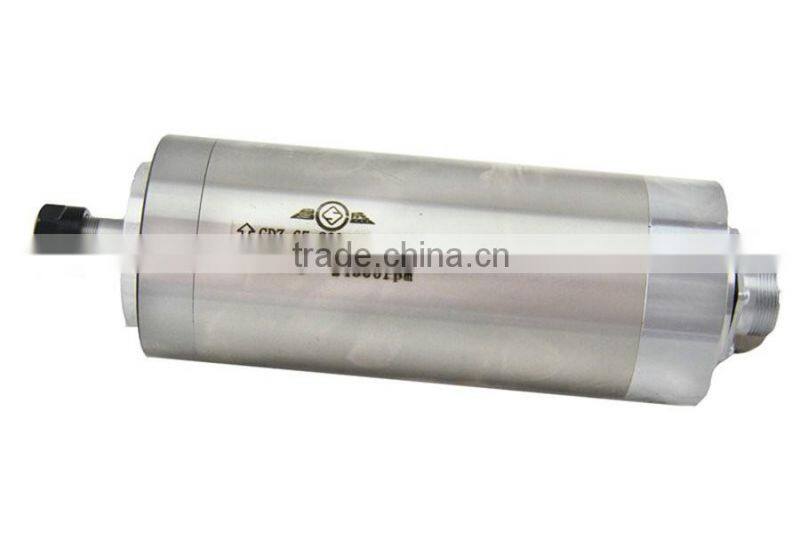

GDZ65-800 Toauto 24000rpm 800w Spindle Motor for Woodworking Machine photo-1

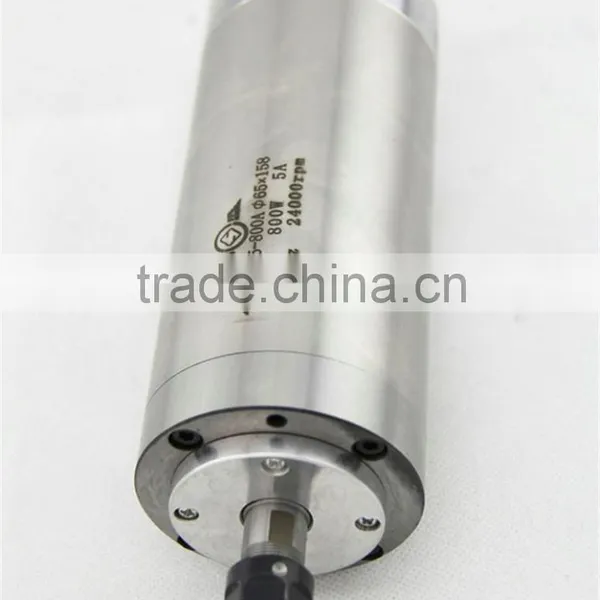

GDZ65-800 Toauto 24000rpm 800w Spindle Motor for Woodworking Machine photo-2

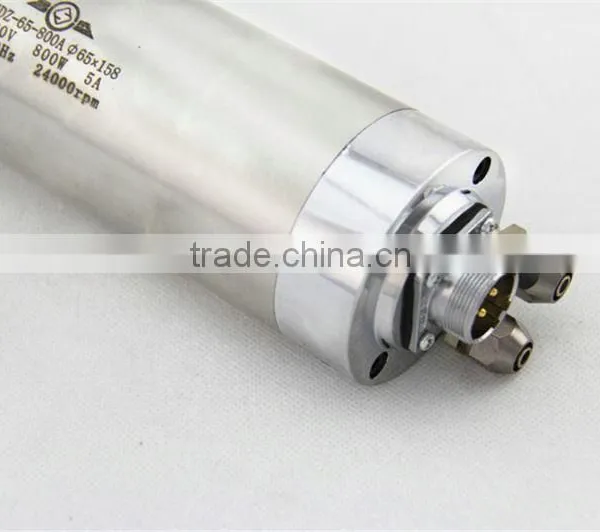

GDZ65-800 Toauto 24000rpm 800w Spindle Motor for Woodworking Machine photo-3
US$ 100 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Toauto
Model Number:
GDZ65-800
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Toauto
Model Number GDZ65-800
Application Other, Woodwork engraving
Maximum Torque 0.33Nm
Drive Motor
Operating Speed 24000rpm
Welcome

Thanks for your visiting, for product details, competitive price or more items, welcome to contact Surina directly.  :)

Product Description

GDZ65-800 Toauto 24000rpm 800w spindle motor for woodworking machine

Specification(Water cooled spindle motor)

ModelSpeedPowerTorqueVoltageCurrentFrequency
GDZ62-1.260000rpm1.2KW0.49NM220V4.5A400Hz
GDZ65-800A24000rpm800W0.33NM220V5A400Hz
GDZ65-800A-short24000rpm800W 220V5A400Hz
GDZ65-80024000rpm800W0.33NM220V5A
GDZ65-1.524000rpm1.5KW 220V5A400Hz
GDZ100-2.224000rpm2.2KW 220V8A400Hz
GDZ100-3(220V)24000rpm3KW1.23NM220V12A400Hz
GDZ100-3(380V)24000rpm3KW1.23NM380V7A400Hz
GDZ100-4(220V)24000rpm4KW1.65NM220V10A400Hz
GDZ100-4(380V)24000rpm4KW1.65NM380V13A400Hz
GDZ100-4.5(220V)24000rpm4.5KW 220V13A400Hz
GDZ100-4.5(380V)24000rpm4.5KW 380V10A400Hz
GDZ125-4.524000rpm4.5KW1.85NM380V8A400Hz
GDZ125-5.518000rpm5.5KW 380V10A
GDZ48-30060000rpm300W0.052NM75V4.5A1000Hz
GDZ80-1.5B24000rpm1.5KW0.62NM220V5A400Hz
GDZ80-1.524000rpm1.5KW0.91NM220V5A400Hz
GDZ80-2.224000rpm2.2KW 220V8A400Hz
GDZ80-2.2B24000rpm2.2KW0.91NM220V8A400Hz
GDZ80-2.2B 3 bearing(380V)24000rpm2.2KW0.91NM380V8A400Hz
GDZ80-2.2B 4 bearing(220V)24000rpm2.2KW 220V8A400Hz
GDZ85-1.524000rpm1.5KW 220V5A400Hz
GDZ85-2.2(220V)24000rpm2.2KW 220V 400Hz
GDZ85-2.2(380V)24000rpm2.2KW 380V6A400Hz
GDZ105-3.2(220V)24000rpm3.2KW1.23NM220V12A400Hz
GDZ105-3.2(380V)24000rpm3.2KW1.23NM380V7A400Hz
125TD12Z6B9000rpm/12000rpm6KW 380V13.5A450/600Hz
125TD11&18Z7.5B(380V)11000-18000rpm7.5KW2.9NM380V16.5A550/900Hz
120TD18Z5.5A(220V)18000rpm5.5KW3.9NM220V20A600Hz
120TD18Z5.5A(380V)18000rpm5.5KW3.9NM380V12A600Hz

Product photos

GDZ65-800 Toauto 24000rpm 800w spindle motor for woodworking machineGDZ65-800 Toauto 24000rpm 800w spindle motor for woodworking machineGDZ65-800 Toauto 24000rpm 800w spindle motor for woodworking machine

About Shipping

Delivery details:

GDZ65-800 Toauto 24000rpm 800w spindle motor for woodworking machine
1. Item will be shipped out within 1-5 working days by DHL, FedEx, UPS, EMS ASAP. We will choose the best and suitable shipping company. Usually it takes 3-7 working days to most of the country. You will be notified the tracking number once shipped out.
2. International buyers are responsible for any and all customs, duties taxes and brokerage fees to be paid to the courier or government. Please contact your local customs office with further inquiries in this issue. We will not be responsible for with respect to any tariffs, duties, or any and all other charges requested or required by destination countries.

Terms of sales:
1. We accept 14 days return policy. If you want to return the item, please contact us in 14 days first and make sure the package is un-opened. The buyer has to pay for the go and back delivery cost and the custom fee of each country. Once we received the product and checked, we will make refund for the part in 24 hours.
2. We make sure the item is brand new with original package and offer 1 year warranty for the quality.
3. Any quality problem in normal use during the warranty period, We offer free repair. The buyer should pay the return cost and our company will pay the re-shipping cost.
