3.5 inch 480X640 TFT LCD Display with CTP capacitive touch panel S035V04-CT11

Name: 3.5 inch 480X640 TFT LCD Display with CTP capacitive touch panel S035V04-CT11
Brand: CDTech
Price: USD $30 - 50 / Piece

FOB Price

USD $30 - $50 / Piece

1 Piece(Min.Order)

Supply Ability 500000 Piece / Pieces per Month
Port HK

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	CDTech	Model Number:	S035V04-CT11
Type:	TFT

Product Description

CDTech supply 2.4" to 12.3 " TFT LCD Display with capacitive touch panel; supply touch screen, CTP;

Size	Reslution	P/N	OD Size/mm	AA Size/mm	Op. Temp	St. Temp
2.4"	QVGA (240*320)	S024Q14-CT4	42.7259.262.6	36.72*48.96	-20~70°C	-30~80°C
3.2"	WQVGA (240*400)	S032WQ04-CTP	47.6680.92.3	41.76* 69.6	-20~70°C	-30~80°C
3.5"	QVGA (320*240)	S035LQNC111-CT1	76.963.93.26	70.08*52.56	-20~70°C	-30~80°C
	QVGA (320*240)	S035Q09-1-CT1	76.8463.843.27	70.08*52.56	-20~70°C	-30~80°C
	VGA (480*640)	S035V04-CT11	64.085.02.9	53.28*71.04	-20~70°C	-30~80°C
3.9"	WQVGA (480*128)	S039WQ01-CT2	105.540.642.95	95.04 x 25.34	-20~70°C	-30~81°C
4.3”	WQVGA (480*272)	S043WQ07H-CT6	105.567.24.31	95.04 x 53.856	-20~70°C	-30~80°C
	WQVGA (480*272)	S043WQ07H-CT7	105.567.22.9	95.04x53.856	-20~70°C	-30~80°C
	WVGA (800*480)	S043WV07-CT15	68.45129.283.77	56.16 x 93.60	-20~70°C	-30~80°C
4.6"	WVGA (800*320)	S046WV05-CT1	120.756.164.77	108 x 43.2	-20~70°C	-30~80°C
5.0''	WQVGA (480*272)	S050WQ06H-CT6	120.775.84.3	110.88*62.83	-20~70°C	-30~80°C
5.0''	WVGA (800*480)	S050WV49-CT5	120.7764.92	108*64.8	-20~70°C	-30~80°C
6.5"	WVGA (800*320)	S065WV03-CT2	174.9278.865.95	154.08*57.28	-20~70°C	-30~80°C
7.0"	WVGA (800*480)	S070WV92-CT16	164.91005.7	154.08*85.92	-20~70°C	-30~80°C
	WVGA (800*480)	S070WV94-CT16	164.91005.7	154.08*85.92	-20~70°C	-30~80°C
	WVGA (800*480)	S070WV97-CT9	164.91005.7	154.08*85.92	-20~70°C	-30~80°C
	WSVGA (1024*600)	S070WS12H-O-CT21	175.8109.244.6	154.21x 85.92	-20~70°C	-30~80°C
	WXGA (800*1280)	S070WX02-CT31	99.85161.702.4	94.2x 150.72	-10 ~ 60℃	-20~ 70℃
8.8"	WXGA	S088WX03-CT	229.6667.53.5	216.96*54.24	-10~50°C	-20~60°C
10.1"	1024*600	S101WS07-CT4	257.1159.667.62	222.72*125.28	-20~70°C	-30~80°C
12.3”	1920*720	S123WU01-CT4	308.1134.867.3	292.32 *109.62	-30~85°C	-40~90℃

3.5 inch LCD display with touch panel Specification:

P/N	S035V04-CT11
Size	3.5inch TFT with PCAP
Resolution	480(Horizontal)*640(Vertical)
LCD Interface	18bit-RGB
CTP Interface	I2C
LCD Driver IC	HX8363-A
Viewing Direction	9 O’clock
LCM (W x H x D) (mm)	64(H)85(V)4.97(T)
Active Area(mm)	53.28(H) x 71.04(V)
Operation Temperature	-20℃ ~ +70℃
Storage Temperature	-30℃ ~ +80℃
Luminance (with PCAP)	600 nits
Bonding way of TFT and PCAP	DST/Optical bonding
Application: POS Machine, Handheld devices, Portable devices, Medical devices, GPS, Instruments, Industrial devices

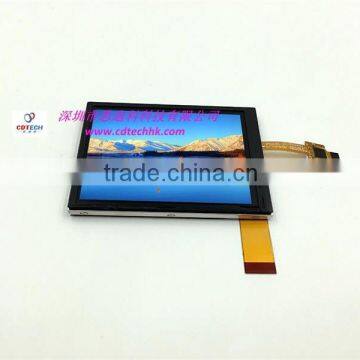

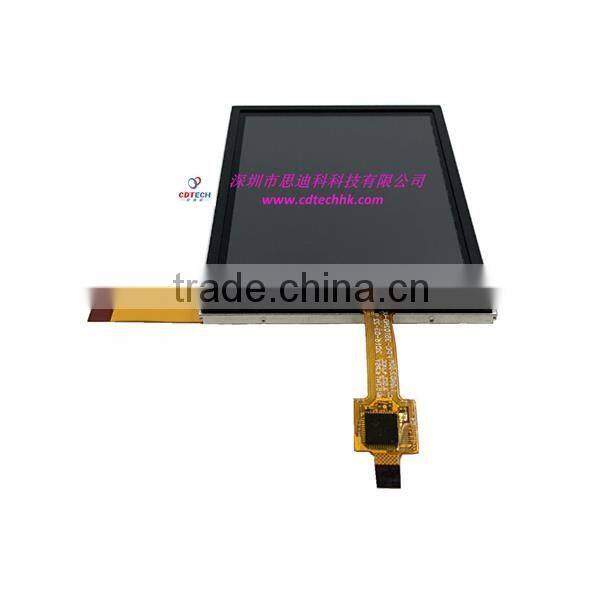

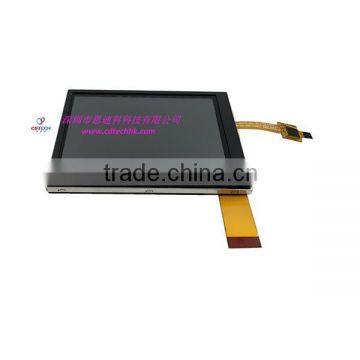

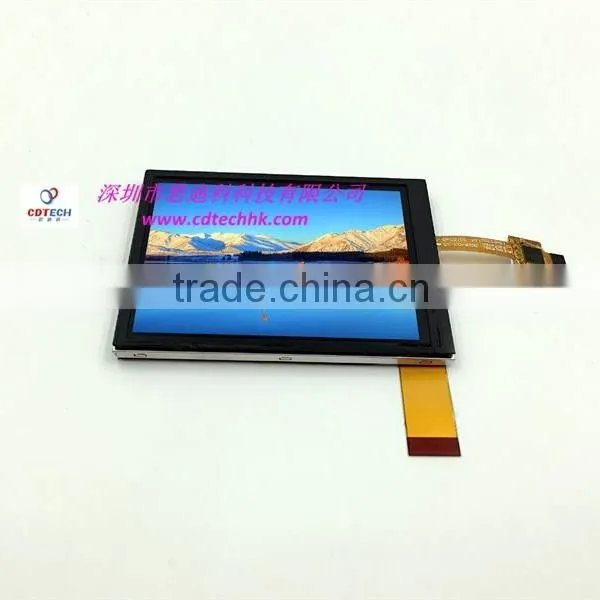

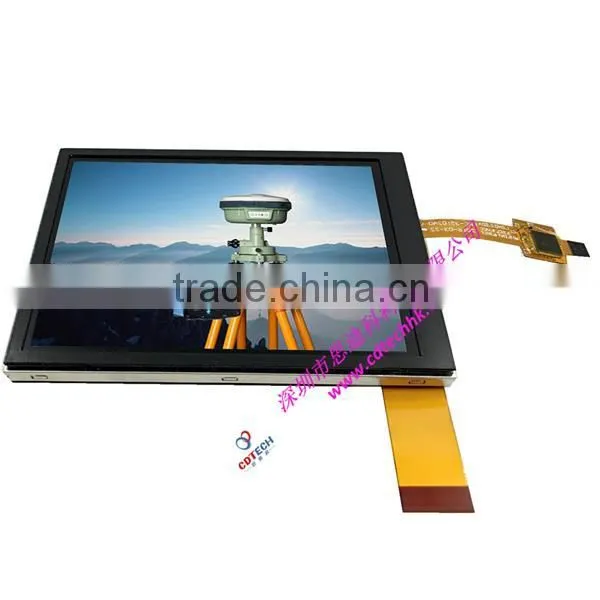

3.5 inch LCD display with touch panel Product pictures

Packing

Trade terms

Payment	100% paypal in advance for samples , 50% deposit T/T in advance and 50% remaining T/T before delivery for mass production
Lead time	around 4 weeks after the payment confirmed
Shipment	Support Fedex, UPS, TNT, DHL,EMS etc. air and ocean shipping are available
Warranty	1 year
Samples	We supply samples, with the cost, the shipping fee and the tax paid by buyer

CDTech Workshop

CDTech Exhibiton

CDTech Sale Volume

For more detailed information, please feel free to contact me,Thanks!
