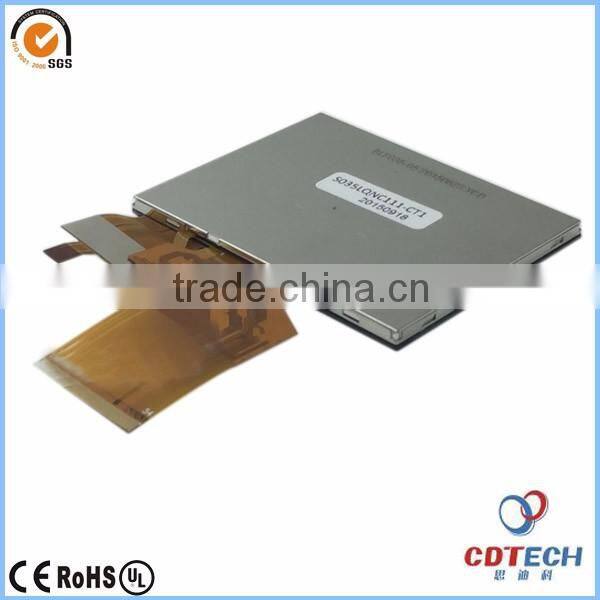

CTP Capacitive Touch Panel 3.5 Inch LCD Screen With Touch Panel S035LQNC111-CT1
US$ 100 - 200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CDTech
Model Number:
S035LQNC111-CT1
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3.2 Inch Touch Screen LCD Display With Touch Panel S032WQ04-CTPUS$ 100 - 200MOQ: 1 Piece -
2.4 Inch TFT LCD Display With Capacitive Touch Panel Touch Screen S024Q14-CT4US$ 100 - 200MOQ: 1 Piece
-
TFT LCD China Supplier 5.0'' Inch 480*272 Resolution Transparent Tft Lcd Display Module Witn Touch PanelUS$ 30.00 - 30.00MOQ: 1 Piece
-
Bar Type Color TFT LCD Screen China Supplier 4.6" Inch 800*480 Flexible Transparent Lcd Display With Touch PanelUS$ 20 - 40MOQ: 100 Pieces
-
IPS 7.0''Digital LCD Farb-Monitor, Ratio 4:3 LCD Displays With 50PINUS$ 80 - 180MOQ: 500 Pieces
Place of Origin
Guangdong, China
Brand Name
CDTech
Model Number
S035LQNC111-CT1
Type
TFT
CDTech supply 2.4" to 12.3 " TFT LCD Display with capacitive touch panel; supply touch screen, CTP;
| Size | Reslution | P/N | OD Size/mm | AA Size/mm | Op. Temp | St. Temp |
| 2.4" | QVGA (240*320) |
S024Q14-CT4 | 42.72*59.26*2.6 | 36.72*48.96 | -20~70°C | -30~80°C |
| 3.2" | WQVGA (240*400) |
S032WQ04-CTP | 47.66*80.9*2.3 | 41.76* 69.6 | -20~70°C | -30~80°C |
| 3.5" | QVGA (320*240) |
S035LQNC111-CT1 | 76.9*63.9*3.26 | 70.08*52.56 | -20~70°C | -30~80°C |
| S035Q09-1-CT1 | 76.84*63.84*3.27 | 70.08*52.56 | -20~70°C | -30~80°C | ||
| VGA (480*640) |
S035V04-CT11 | 64.0*85.0*2.9 | 53.28*71.04 | -20~70°C | -30~80°C | |
| 3.9" | WQVGA (480*128) |
S039WQ01-CT2 | 105.5*40.64*2.95 | 95.04 x 25.34 | -20~70°C | -30~81°C |
| 4.3” | WQVGA (480*272) |
S043WQ07H-CT6 | 105.5*67.2*4.31 | 95.04 x 53.856 | -20~70°C | -30~80°C |
| S043WQ07H-CT7 | 105.5*67.2*2.9 | 95.04x53.856 | -20~70°C | -30~80°C | ||
| WVGA (800*480) |
S043WV07-CT15 | 68.45*129.28*3.77 | 56.16 x 93.60 | -20~70°C | -30~80°C | |
| 4.6" | WVGA (800*320) |
S046WV05-CT1 | 120.7*56.16*4.77 | 108 x 43.2 | -20~70°C | -30~80°C |
| 5.0'' | WQVGA (480*272) |
S050WQ06H-CT6 | 120.7*75.8*4.3 | 110.88*62.83 | -20~70°C | -30~80°C |
| WVGA (800*480) |
S050WV49-CT5 | 120.7*76*4.92 | 108*64.8 | -20~70°C | -30~80°C | |
| 6.5" | WVGA (800*320) |
S065WV03-CT2 | 174.92*78.86*5.95 | 154.08*57.28 | -20~70°C | -30~80°C |
| 7.0" | WVGA (800*480) |
S070WV92-CT16 | 164.9*100*5.7 | 154.08*85.92 | -20~70°C | -30~80°C |
| WVGA (800*480) |
S070WV94-CT16 | 164.9*100*5.7 | 154.08*85.92 | -20~70°C | -30~80°C | |
| WVGA (800*480) |
S070WV97-CT9 | 164.9*100*5.7 | 154.08*85.92 | -20~70°C | -30~80°C | |
| WSVGA (1024*600) |
S070WS12H-O-CT21 | 175.8*109.24*4.6 | 154.21x 85.92 | -20~70°C | -30~80°C | |
| WXGA (800*1280) |
S070WX02-CT31 | 99.85*161.70*2.4 | 94.2x 150.72 | -10 ~ 60℃ | -20~ 70℃ | |
| 8.8" | WXGA | S088WX03-CT | 229.66*67.5*3.5 | 216.96*54.24 | -10~50°C | -20~60°C |
| 10.1" | 1024*600 | S101WS07-CT4 | 257.1*159.66*7.62 | 222.72*125.28 | -20~70°C | -30~80°C |
| 12.3” | 1920*720 | S123WU01-CT4 | 308.1*134.86*7.3 | 292.32 *109.62 | -30~85°C | -40~90℃ |
3.5 inch LCD screen with touch panel Specification:
| P/N | S035LQNC111-CT1 |
| Size | 3.5inch TFT with PCAP |
| Resolution | 320(horizontal)*240(Vertical) |
| LCD Interface | RGB-24Bit |
| CTP Interface | I2C |
| LCD Driver IC | HX8238D |
| Viewing Direction | 12 O’clock |
| LCM (W x H x D) (mm) | 76.90*63.9*4.41 |
| Active Area(mm) | 70.08 x 52.56 |
| Operation Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Luminance (with PCAP) | 300nits |
| Bonding way of TFT and PCAP | DST/Optical bonding |
| Application: POS Machine, Handheld devices, Portable devices, Medical devices, GPS, Instruments, Industrial devices | |
3.5 inch LCD screen with touch panel Product pictures
Packing
Trade terms
| Payment | 100% paypal in advance for samples , 50% deposit T/T in advance and 50% remaining T/T before delivery for mass production |
| Lead time | around 4 weeks after the payment confirmed |
| Shipment | Support Fedex, UPS, TNT, DHL,EMS etc. air and ocean shipping are available |
| Warranty | 1 year |
| Samples | We supply samples, with the cost, the shipping fee and the tax paid by buyer |
CDTech Workshop
CDTech Exhibiton
CDTech Sale Volume
For more detailed information, please feel free to contact me,Thanks!
