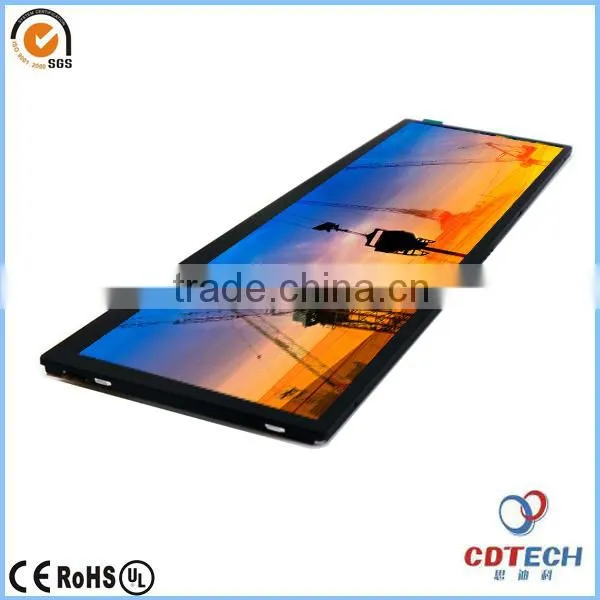

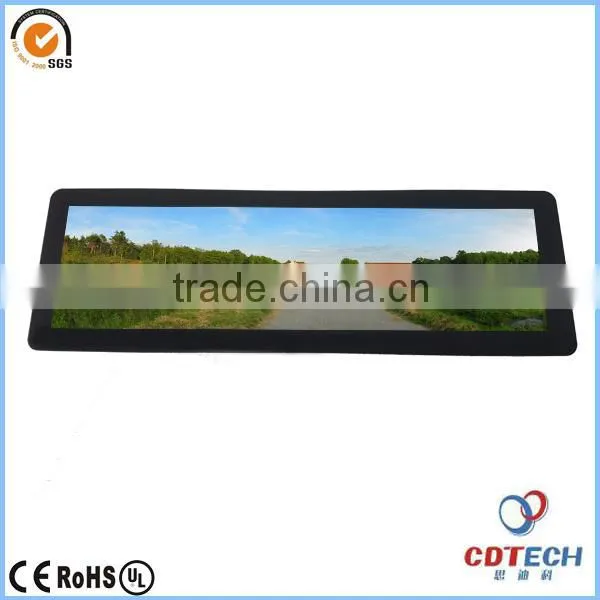

8.8 inch 1280*320 bar type TFT lcd display module with touch screen
- 1000 Piece / Pieces per Month
- HK
- T/T L/C D/P D/A Credit Card PayPal
-
negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
-
digital fire alarm installation module display, HTN segment display with blue led lcd panel
-
negative autoreclose circuit-breaker lcd display, segment module with blue led
-
charger negative character lcd display,white led ,battery segment small flexible display
-
character small charger lcd display ,custom battery display ,white led
-
segment positive temperature time clock lcd display,blue TN white backlight
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | CDTech | Model Number: | S088WV03-CT1 |
| Type: | TFT |
Product Description
8.8 inch 1280*320 bar type TFT lcd display module with touch screen
General Specifications
Feature | Spec | |
Characteristics | Size | 8.8 inch |
| Resolution | 1280(horizontal)*320(Vertical) |
| Glass Maker | CDTech |
| Interface | LVDS |
| Connect type | Connector |
| Display Colors | 16.7M |
| Technology type | a-Si |
| Pixel pitch (mm) | 0.1695*0.1695 |
| Pixel Configuration | R.G.B. Stripe |
| Display Mode | Normally White |
| Driver IC | TBD |
| Luminance | 600 nits |
| Viewing Direction | 6 O’clock |
| Gray Scale Inversion Direction | 12 O’clock |
Mechanical | LCM (W x H x D) (mm) | 229.66X67.5*3.50 |
| Active Area(mm) | 216.96X54.24 |
| With /Without TSP | Without |
| Weight (g) | 97 g |
| LED Numbers | 36 LEDs (4S9P) |
Drawing for 8.8 inch 1280*320 bar type TFT lcd display module with touch screen
Packaging Details: Carton size:385X155X227 mm ,60 pcs one carton
Delivery Time:3-5 weeks
1. Custominzed TFT module.
2. Do OEM &ODM fro TFT LCD Module pannel.
3. Good quality and quick reply.
Contact us:
CDTech (H.K.) Electronics Limited
Tel: 86-755-23032206
Fax: 86-755-23032209
Website:
Address: 7F, Blgd 5, Chaxi Industrial Park, Huafeng 1st Technology Park,
Gushu, Bao'an District, Shenzhen518126, China
1. Can you support us with CTP’s? G+G? or OGS-CTP?
Yes, we can support, G+G and the OGS both is OK.
2. How you will glue the TFT to the OGS? By OCA or DST?
OCA and DST both OK, it depends on the customer.
