8.8 Inch 1280*320 TFT Lcd Display Module for Car Audio With P-Cap Touch Screen
8.8 inch 1280*320 TFT lcd display module for car audio with P-Cap touch screen
General Specifications
Feature |
Spec |
|
Characteristics |
Size |
8.8 inch |
|
Resolution |
1280(horizontal)*320(Vertical) |
|
Glass Maker |
CDTech |
|
Interface |
LVDS |
|
Connect type |
Connector |
|
Display Colors |
16.7M |
|
Technology type |
a-Si |
|
Pixel pitch (mm) |
0.1695*0.1695 |
|
Pixel Configuration |
R.G.B. Stripe |
|
Display Mode |
Normally White |
|
Driver IC |
TBD |
|
Luminance |
600 nits |
|
Viewing Direction |
6 O’clock |
|
Gray Scale Inversion Direction |
12 O’clock |
Mechanical |
LCM (W x H x D) (mm) |
229.66X67.5*3.50 |
|
Active Area(mm) |
216.96X54.24 |
|
With /Without TSP |
Without |
|
Weight (g) |
97 g |
|
LED Numbers |
36 LEDs (4S9P) |

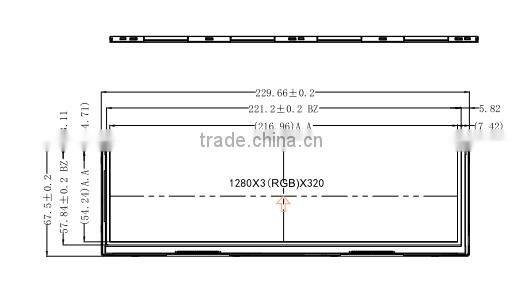

Drawing for 8.8 inch 1280*320 TFT lcd display module for car audio with P-Cap touch screen
Packaging Details: Carton size:385X155X227 mm ,60 pcs one carton
Delivery Time:3-5 weeks
1. Custominzed TFT module.
2. Do OEM &ODM fro TFT LCD Module pannel.
3. Good quality and quick reply.

Contact us:
CDTech (H.K.) Electronics Limited
Tel: 86-755-23032206
Fax: 86-755-23032209
Website:
Address: 7F, Blgd 5, Chaxi Industrial Park, Huafeng 1st Technology Park,
Gushu, Bao'an District, Shenzhen518126, China
1. Can you support us with CTP’s? G+G? or OGS-CTP?
Yes, we can support, G+G and the OGS both is OK.
2. How you will glue the TFT to the OGS? By OCA or DST?
OCA and DST both OK, it depends on the customer.
